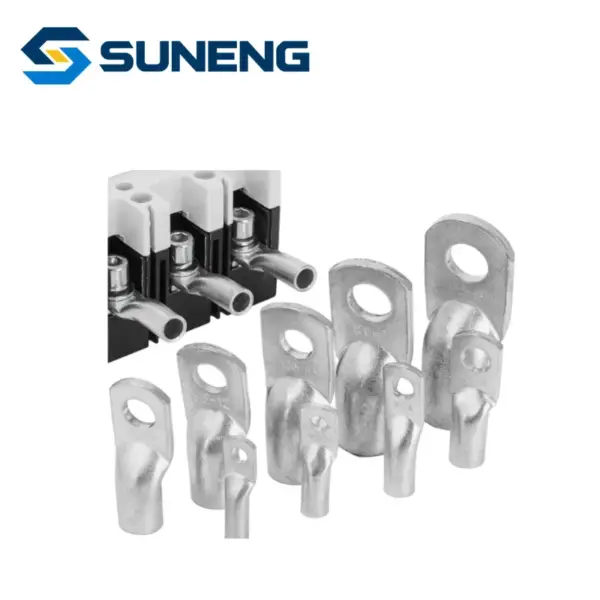

Jg Copper Aluminum Cable Lug Crimp Terminal Lugs Electrical Connector for Power Cable with CE Certified
Product Overview
JG Series Copper Cable Lug is tin-plated copper terminal for cable crimp connection, featuring stable conductivity and over 30 years service life for power distribution systems.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Model: JG Series
Interface Type: Crimped Copper Cable Lug Connector
Material: Pure copper
Service Life: Over 30 Years
Connection Method: Hexagonal crimping / Hydraulic crimping
Surface Treatment: Tin plating
Manufacturing Process: Stamping & extrusion
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV
Hole Type: Single mounting hole
Operating Temperature: -40℃ ~ +105℃
Installation Method: Hydraulic crimping
Applicable Conductor Range: 10–240 mm²
Crimp Outer Diameter Range: 8–27 mm
Total Length Range: 37–94 mm
Model: JG Series
Interface Type: Crimped Copper Cable Lug Connector
Material: Pure copper
Service Life: Over 30 Years
Connection Method: Hexagonal crimping / Hydraulic crimping
Surface Treatment: Tin plating
Manufacturing Process: Stamping & extrusion
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV
Hole Type: Single mounting hole
Operating Temperature: -40℃ ~ +105℃
Installation Method: Hydraulic crimping
Applicable Conductor Range: 10–240 mm²
Crimp Outer Diameter Range: 8–27 mm
Total Length Range: 37–94 mm
Product Features
- Tin-plated surface improves anti-oxidation performance
- Tight crimp fit, low contact resistance
- High conductivity pure copper material
- Complete sizes match most common cables

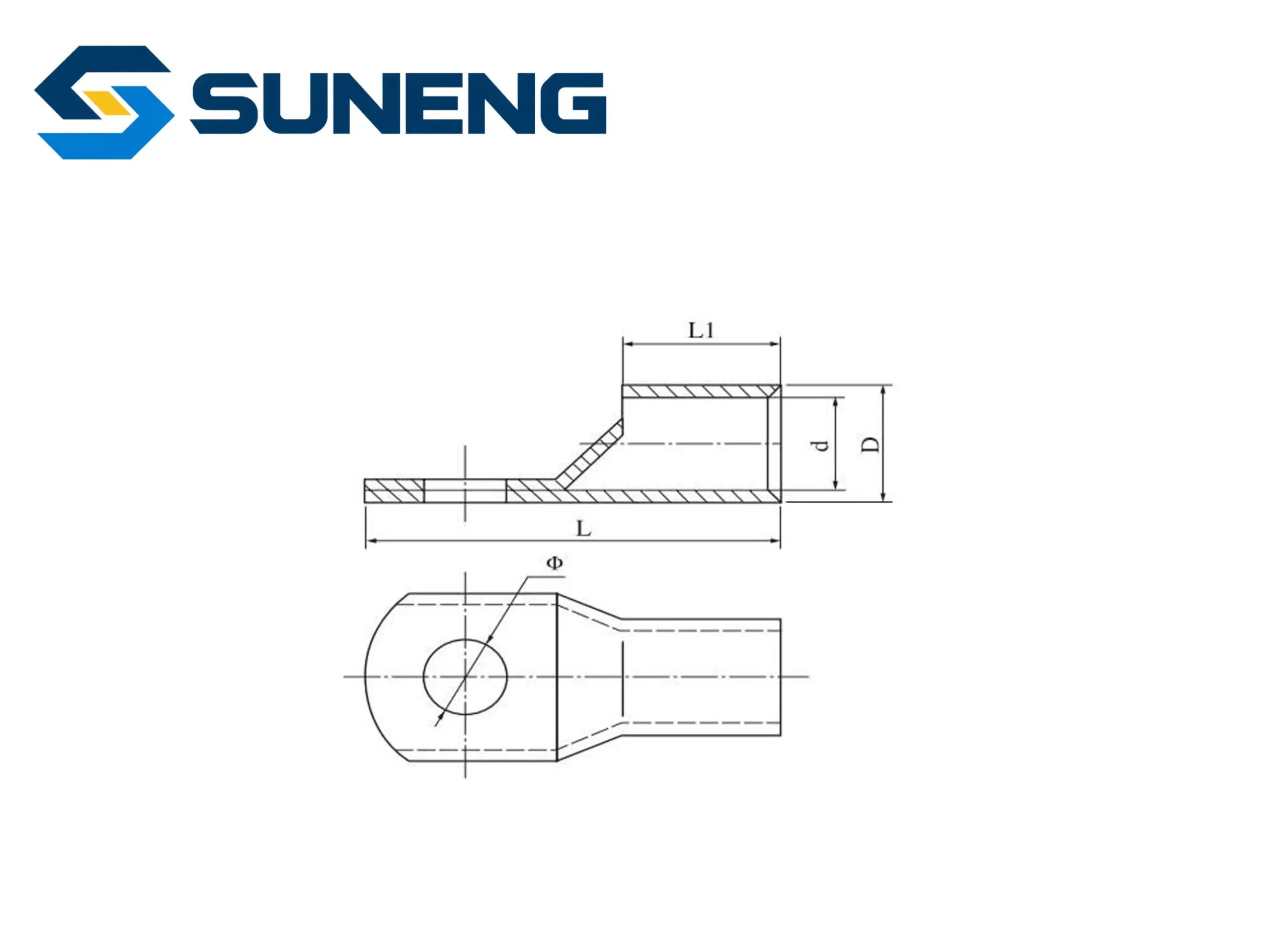

Product Structure

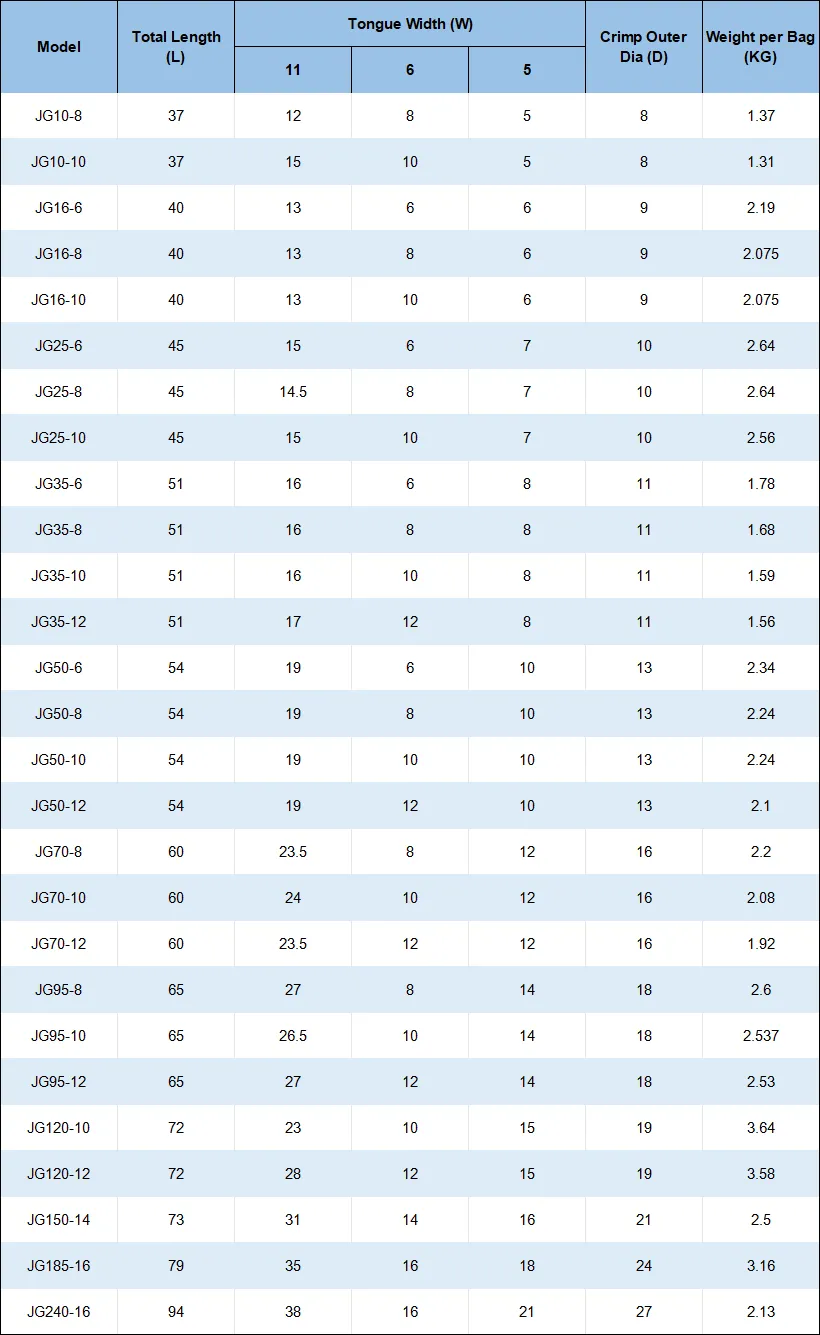

Performance & Dimensions
Applications
• Cable terminal connection for distribution boxes
• Transformer and switch cabinet wiring
• Indoor & outdoor low/medium voltage circuits
• Industrial equipment power wiring
