Multi-Way Cable Distribution Terminal Block and Branch Connector for Power Cables
Product Overview

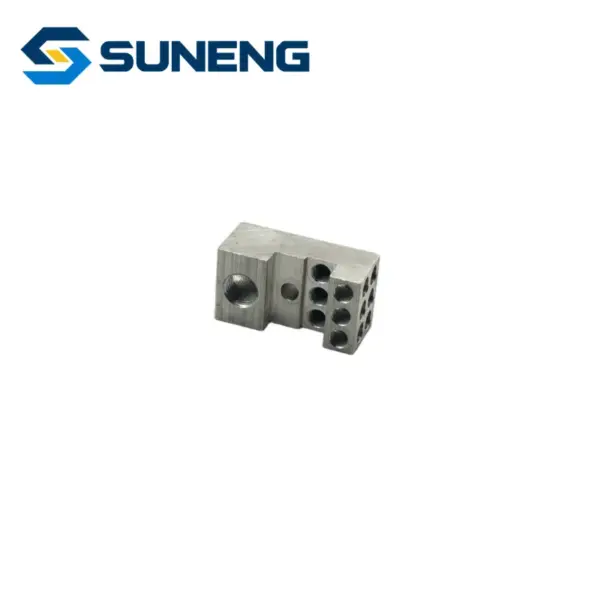

The multi-way cable distribution terminal is designed for cable branching, joining and current distribution. Its multiple connection holes allow several conductors to be connected in one compact terminal block.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Product Features
- Supports multi-way cable connection and branching
- Compact structure saves space in electrical cabinets
- Multiple holes provide flexible wiring configurations
- Strong metal body offers reliable mechanical strength
- Provides stable electrical contact and current transfer
- Suitable for different cable sizes and customized designs
Technical Specifications

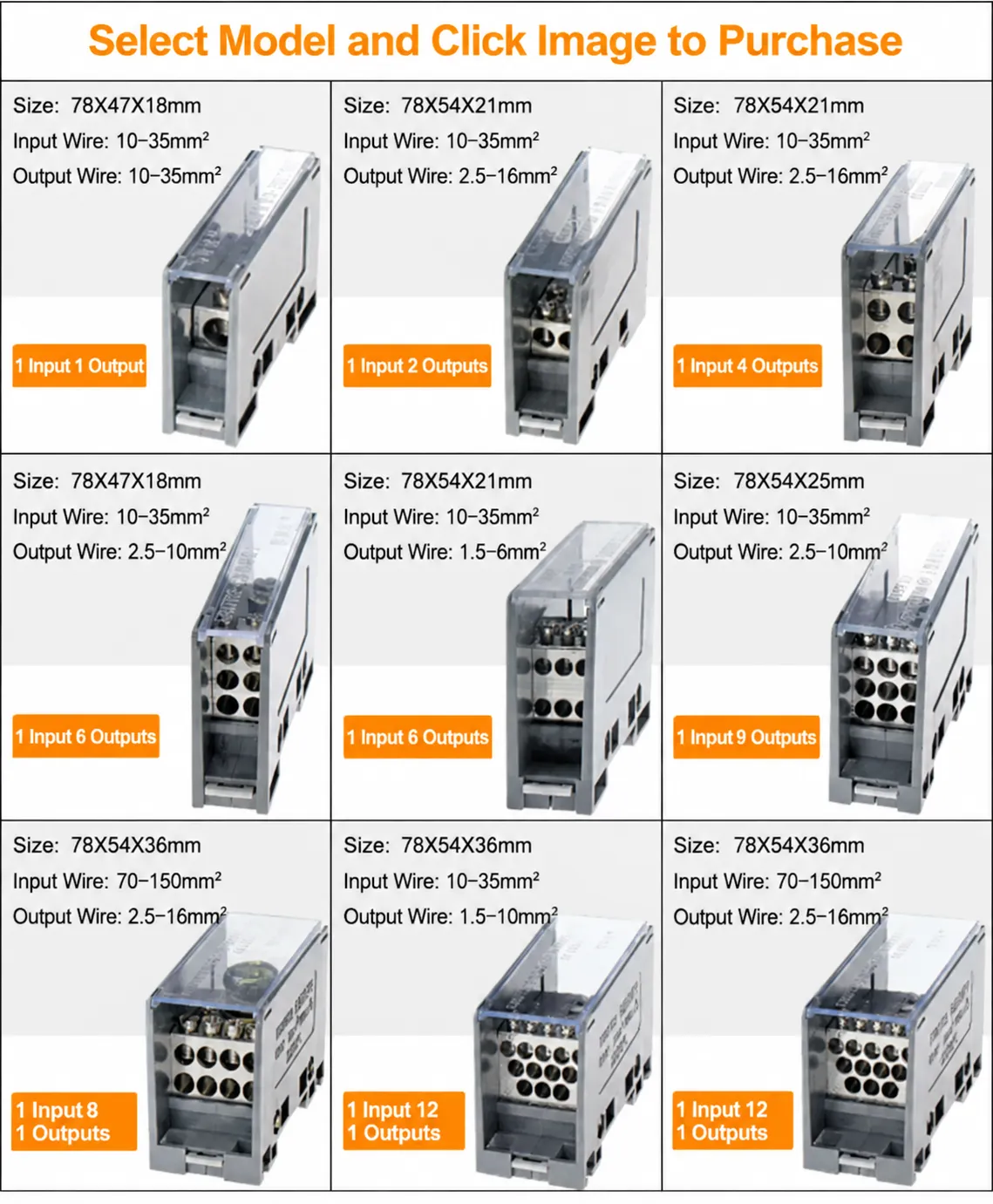

| No. | Circuit | Dimension (mm) | Inlet Cable Size | Outlet Cable Size |
|---|---|---|---|---|
| 1 | 1 In 1 Out | 78×47×18 | 10-35mm² | 10-35mm² |
| 2 | 1 In 2 Out | 78×54×21 | 10-35mm² | 2.5-16mm² |
| 3 | 1 In 4 Out | 78×54×21 | 10-35mm² | 2.5-16mm² |
| 4 | 1 In 6 Out | 78×47×18 | 10-35mm² | 2.5-10mm² |
| 5 | 1 In 6 Out | 78×54×21 | 10-35mm² | 1.5-6mm² |
| 6 | 1 In 9 Out | 78×54×25 | 10-35mm² | 2.5-10mm² |
| 7 | 1 In 8 Out | 78×54×36 | 70-150mm² | 2.5-16mm² |
| 8 | 1 In 12 Out | 78×54×36 | 10-35mm² | 1.5-10mm² |
| 9 | 1 In 12 Out | 78×54×36 | 70-150mm² | 2.5-16mm² |
Applications
Low-voltage distribution cabinets
Cable junction boxes
Transformer and switchgear terminals
Industrial control panels
Building electrical distribution systems
Cable branching and equipment wiring projects
