DL Cable Lug and Compression Terminal for Power Cable and Busbar Connections
Product Overview

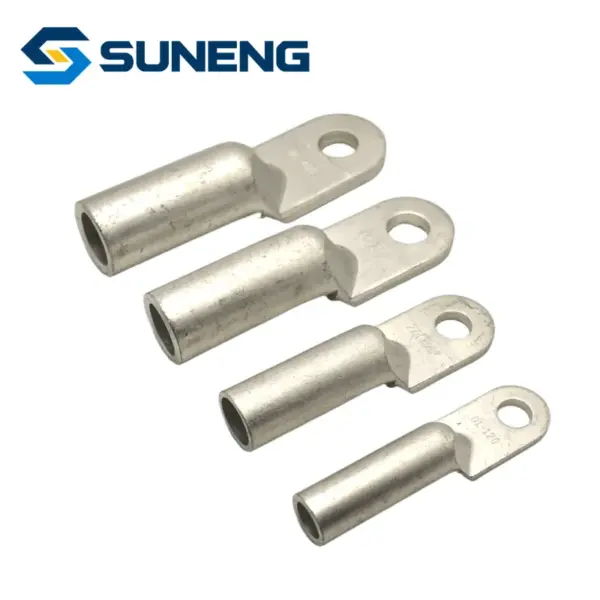

The DL cable lug is a compression terminal used to connect power cables to busbars, switches, circuit breakers and other electrical equipment. It provides a secure crimped cable end and bolted palm connection.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for power cable termination
- Crimp barrel provides reliable mechanical holding force
- Ring palm supports secure bolted installation
- Available in multiple cable and stud sizes
- Compact design supports easy installation
Product Structure

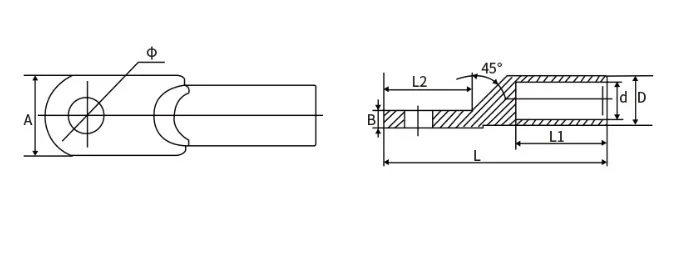

Technical Specifications
| Model | Φ±0.5 | D+0.2 | d+0.2 | L±2% | L1±1.5 | L2±2 | B±0.5 | A±0.2 |
|---|---|---|---|---|---|---|---|---|
| 10 | 8.5 | 11 | 6.7 | 67 | 32 | 22 | 17 | 2.5 |
| 16 | 8.5 | 11 | 6.7 | 67 | 32 | 22 | 17 | 2.5 |
| 25 | 8.5 | 12 | 7.7 | 75 | 34 | 24 | 18 | 3 |
| 35 | 10.5 | 14 | 8.7 | 85 | 40 | 28 | 21 | 3.2 |
| 50 | 10.5 | 16 | 9.8 | 90 | 42 | 30 | 23 | 3.8 |
| 70 | 12.5 | 18 | 11.7 | 95 | 44 | 34 | 26 | 4.2 |
| 95 | 12.5 | 20 | 13.7 | 107 | 50 | 36 | 28 | 4.5 |
| 120 | 14.5 | 22 | 15.3 | 117 | 55 | 38 | 30 | 5 |
| 150 | 14.5 | 24 | 16.7 | 122 | 56 | 41 | 33 | 5.5 |
| 185 | 16.5 | 27 | 18.7 | 130 | 58 | 45 | 36 | 6 |
| 240 | 16.5 | 30 | 20.7 | 140 | 60 | 48 | 40 | 7 |
| 300 | 21 | 34 | 24 | 158 | 65 | 55 | 45 | 8.5 |
| 400 | 21 | 38 | 26.5 | 170 | 70 | 60 | 50 | 9 |
| 500 | 21 | 42 | 30 | 195 | 80 | 70 | 55 | 10 |
| 630 | 21 | 45 | 34.5 | 215 | 80 | 75 | 60 | 11 |
Applications
Electrical distribution panels
Switchgear and circuit breaker connections
Transformer terminals
Busbar systems
Industrial cable installation projects
