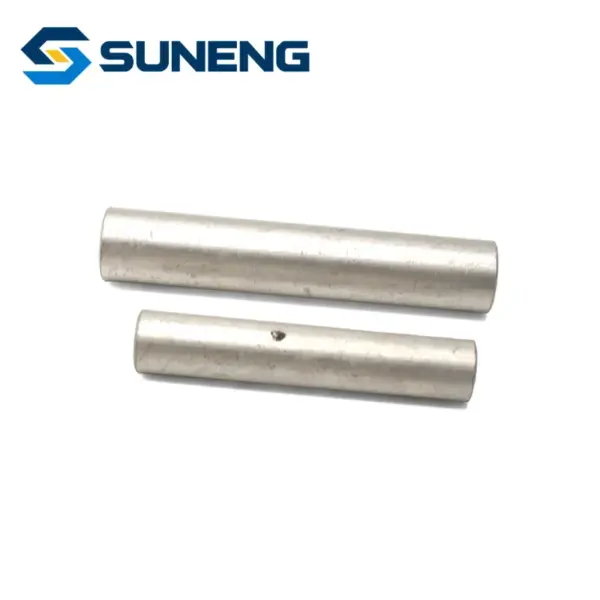

Gl Type Aluminum Splice Sleeve Hydraulic Compression Connector
Product Overview
GL splicing fittings belong to overhead line fittings for power transmission lines.
It is integrally formed from pure aluminum 1060, with passivation anti-oxidation surface treatment for reliable corrosion resistance. Adopting seamless structure with crimping mark lines, the fitting uses hydraulic crimping connection and can be installed with standard hydraulic tools.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
It is compatible with AAC, ACSR and aluminum core cables. The working temperature ranges from -40°C to +90°C, suitable for various harsh outdoor operating environments.
GL series covers sizes fitting 16-630mm² conductors. Packaged with inner box, outer carton and moisture-proof bag to avoid damage and dampness during transit.
Technical Specifications
| Model | D(mm) | d(mm) | L1(mm) | L(mm) |
|---|---|---|---|---|
| GL-2-16 | 10 | 6.0 | 30 | 70 |
| GL-2-25 | 12 | 7.0 | 32 | 75 |
| GL-2-35 | 14 | 8.5 | 37 | 85 |
| GL-2-50 | 16 | 9.8 | 42 | 95 |
| GL-2-70 | 18 | 11.5 | 47 | 105 |
| GL-2-95 | 21 | 13.5 | 50 | 110 |
| GL-2-120 | 23 | 15 | 52 | 115 |
| GL-2-150 | 25 | 17 | 55 | 120 |
| GL-2-185 | 27 | 19 | 57 | 125 |
| GL-2-240 | 30 | 21 | 60 | 130 |
| GL-2-300 | 34 | 23 | 64 | 140 |
| GL-2-400 | 38 | 26 | 70 | 160 |
Applications
Widely used in overhead lines, cable projects, and power distribution scenarios – complies with power industry standards.
