SYG-ZQ-150 Hydraulic Copper - Aluminum Crimping Φ17 mm Electrical Terminal Lugs

An introduction to SUNENG copper-aluminium terminal technology. For this product, refer to the model-specific specifications and confirm the connection method with our team.

Click play to load the YouTube player. If playback is unavailable, use the YouTube link.

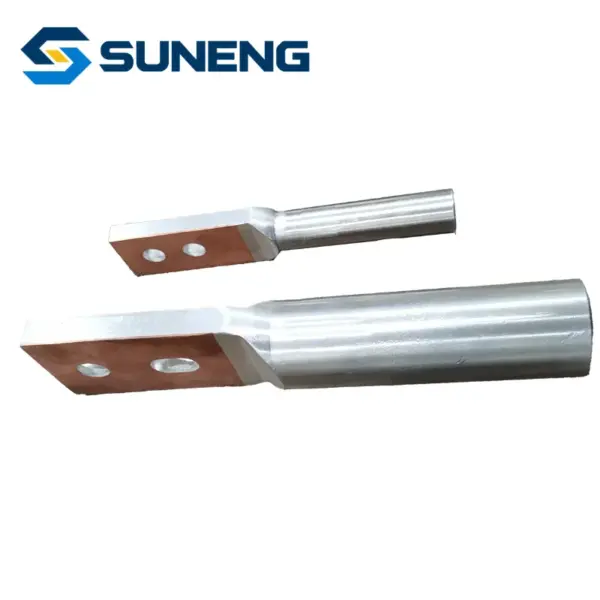

SYG-ZQ-150 Bimetallic Compression Connector is suitable for connecting LGJ-150/8 and LGJ-150/20 overhead aluminum conductors to copper terminals in high-voltage transmission and substation systems.

The connector adopts an aluminum base with a thin copper cladding layer formed through our proprietary brazing-clad copper-aluminum metallurgical composite process. The copper-aluminum transition area is fully metallurgically bonded, without a traditional weld seam, providing stable conductivity and improved resistance to heat generation, power loss and electrochemical corrosion.

Compared with conventional brazed products, key electrical performance indicators can be improved by up to 30–40%, depending on test conditions.

Core Parameters

• Applicable conductors: LGJ-150/8 and LGJ-150/20
• Conductor outside diameter: 16 mm / 17 mm
• A Type: 0° straight design
• B Type: 30° angled design
• a: 50 mm
• b: 5 mm
• d: 30 mm
• L1: 90 mm
• L2: 80 mm
• Terminal hole diameter: Ø17.5 mm / Ø18 mm
• Reference weight: 0.344 kg / 0.390 kg
• Installation method: Hydraulic compression crimping

• High-strength aluminum body with a fully bonded copper contact layer
• Proprietary 100% metallurgical composite technology
• Weld-seam-free copper-aluminum transition interface
• Reduced contact resistance, temperature rise and electrical power loss
• Effective reduction of galvanic corrosion between copper and aluminum

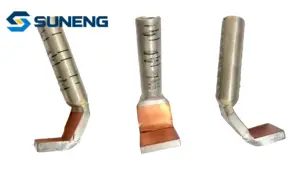

• Excellent bending performance without cracking
• Optimized copper usage for a more competitive overall cost
• Suitable for long-term outdoor and high-voltage service

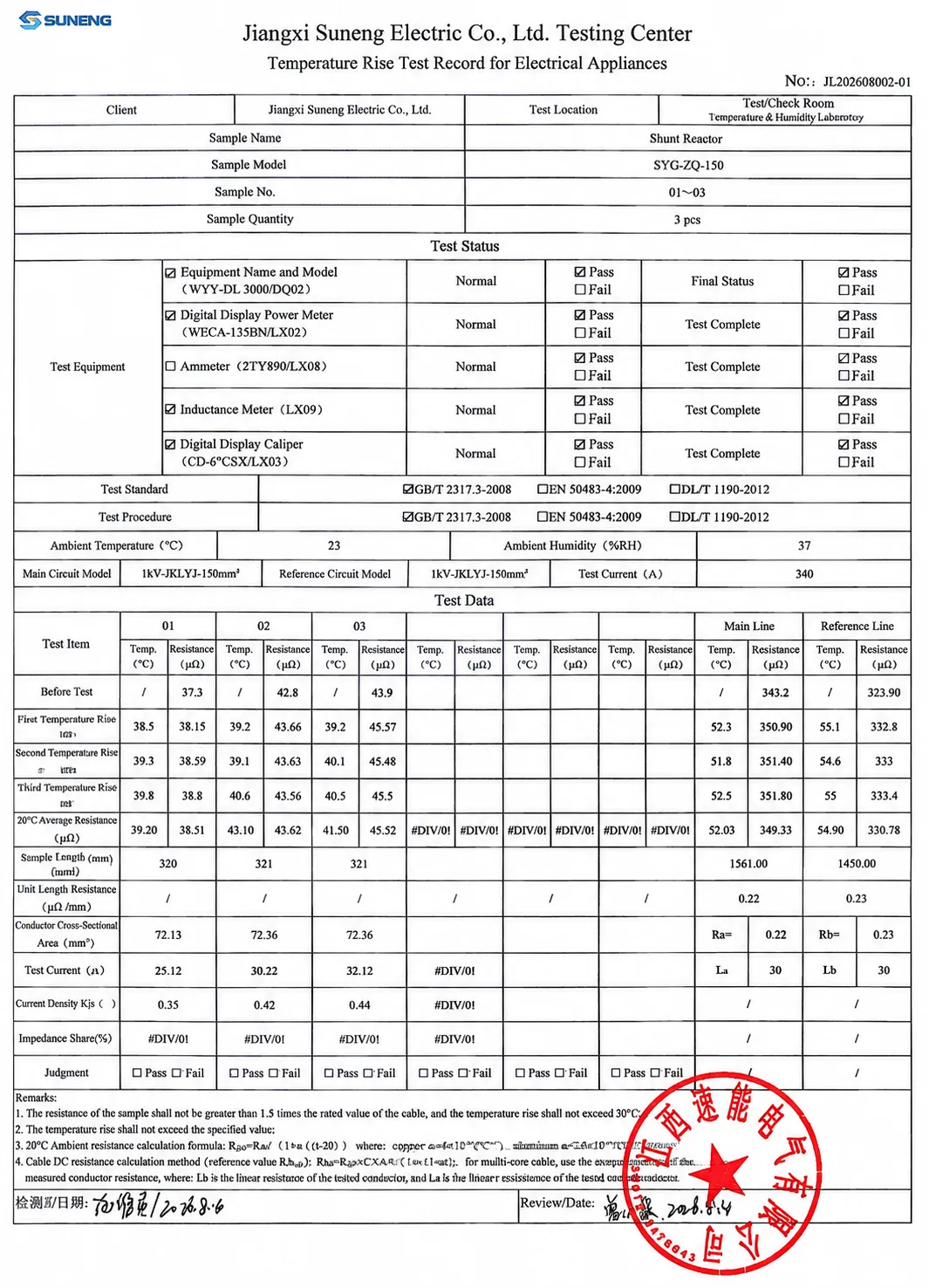

• Temperature-rise tested according to GB/T 2317.3-2008
• Patent application filed and sample testing available
