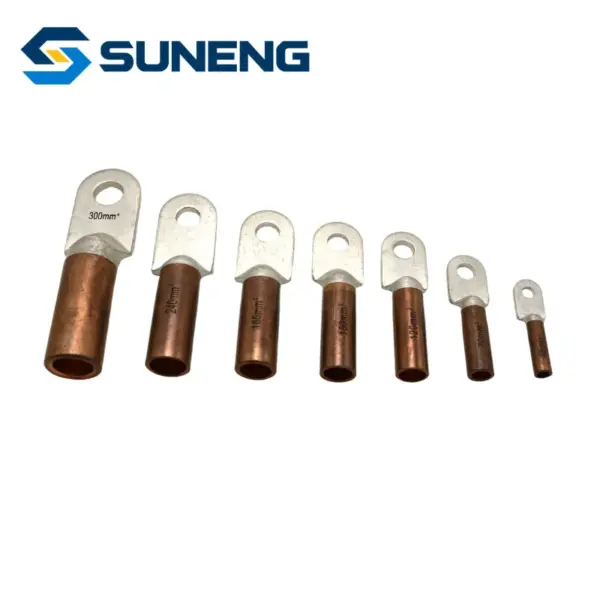

DTL Single Hole Bimetallic Cable Lug for Copper Aluminum Cable Connections
Product Overview
The DTL single-hole bimetallic cable lug is designed for connecting aluminum cables to copper terminals, busbars and electrical equipment. Its copper-aluminum transition structure provides a secure, low-resistance termination.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for copper-to-aluminum cable connections
- Single-hole palm fits standard terminal studs
- Reduces galvanic corrosion between copper and aluminum
- Reliable crimping strength and current transfer
- Suitable for power cables from 16 to 240mm²
Technical Specifications
| No. | Product Name | Model | Cable Cross Section(mm²) | Material | Bolt Hole Diameter(mm) | Copper Tube Inner Diameter(mm) | Copper Tube Outer Diameter(mm) | Total Length(mm) | L1 Length(mm) | Lug Width(mm) | Weight(g) | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DLT Copper-Aluminum Transition Cable Lug | DLT-16 | 16 | Pure Copper+Aluminum | 8 | 6.3 | 9.7 | 66 | 32 | 15.7 | 18.56 | Copper tube pickling, aluminum plate passivation |
| 2 | DLT Copper-Aluminum Transition Cable Lug | DLT-25 | 25 | Pure Copper+Aluminum | 8 | 7.5 | 11 | 70 | 35 | 18 | 22.26 | Copper tube pickling, aluminum plate passivation |
| 3 | DLT Copper-Aluminum Transition Cable Lug | DLT-70 | 70 | Pure Copper+Aluminum | 12.5 | 11 | 15.9 | 92 | 44.5 | 25 | 55.55 | Copper tube pickling, aluminum plate passivation |
| 4 | DLT Copper-Aluminum Transition Cable Lug | DLT-120 | 120 | Pure Copper+Aluminum | 14.4 | 16 | 19.8 | 110 | 55.4 | 30 | 88.91 | Copper tube pickling, aluminum plate passivation |
| 5 | DLT Copper-Aluminum Transition Cable Lug | DLT-150 | 150 | Pure Copper+Aluminum | 14.4 | 17 | 21.7 | 117.6 | 58 | 33.6 | Copper tube pickling, aluminum plate passivation | |
| 6 | DLT Copper-Aluminum Transition Cable Lug | DLT-185 | 185 | Pure Copper+Aluminum | 16.5 | 19 | 24.7 | 125 | 59.6 | 36.5 | Copper tube pickling, aluminum plate passivation | |
| 7 | DLT Copper-Aluminum Transition Cable Lug | DLT-240 | 240 | Pure Copper+Aluminum | 16.5 | 21.5 | 26.3 | 137 | 65 | 39.6 | Copper tube pickling, aluminum plate passivation | |
| 8 | DLT Copper-Aluminum Transition Cable Lug | DLT-300 | 300 | Pure Copper+Aluminum | 20.9 | 23.6 | 33.2 | 161 | 70 | 44.8 | Copper tube pickling, aluminum plate passivation |
Applications
Transformer terminals
Switchgear and distribution cabinets
Busbar connections
Substations and power plants
Industrial electrical installations
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
