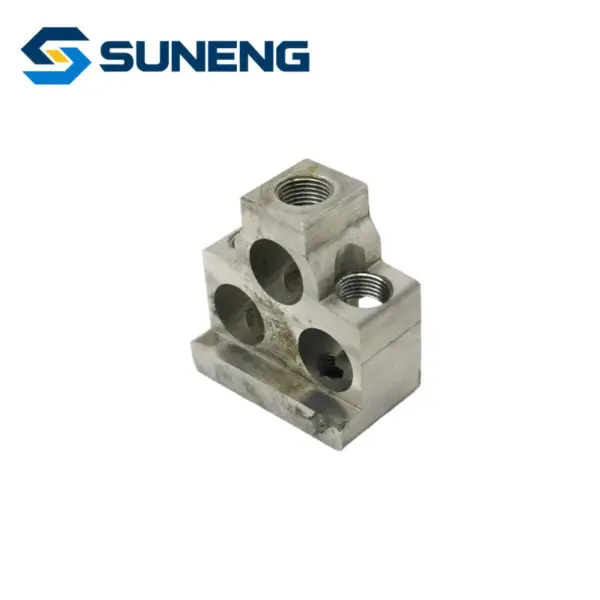

3-in-1 CNC 6061-T6 Aluminium Terminal Block Cable Distribution Block Connector Block
Product Overview
The aluminum cable distribution block is designed for cable joining, branching and distribution inside electrical cabinets and box-type substations. It supports multiple cable inputs and provides several threaded outlet holes, creating a compact and organized solution for power cable connection and current distribution.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Three-channel inlet structure for multi-material printing
- CNC machined from 6061-T6 aluminum alloy
- Excellent thermal conductivity and heat distribution
- Compatible with standard M6 threaded components
- Continuous working temperature of 240–280°C
- Peak temperature capability up to 300°C
Technical Specifications
| Item | Parameter Details |
|---|---|
| Product Name | 3-channel Hotend CNC Aluminum Heating Block |
| Custom Material No. | HOT-3CH-BLOCK-01 |
| Processing Technology | Integrated forming by CNC milling, all threaded holes and throat through holes are milled |
| Material | 6061-T6 aluminum alloy, excellent thermal conductivity |
| Thread Hole Configuration | 3 pcs M6 internal threaded holes (upper side, for assembling 3 throats) |
| Channel Structure | 3 through mounting holes for throat passing, converging at bottom to realize confluent extrusion of three filaments |
| Surface Condition | Bare aluminum machined surface, hard anodizing available |
| Matching Accessories | Supporting: 3-channel PEEK plastic heat-insulating sleeves, 3-channel aluminum radiator, spring constant force clamping assembly, heating cartridge, thermistor temperature sensor |
| Working Temperature | Long-term 240-280℃, max peak 300℃ |
| Core Function | Accommodate heating cartridge and temperature sensor; heat and melt three filaments centrally; three filaments enter from upper throats, converge inside block and extrude from bottom nozzle for multi-color / multi-material printing |
| Applicable Equipment | 3-feed FDM high-speed 3D printer hotend assembly |
Applications
Low-voltage distribution cabinets
Box-type substations and transformer cabinets
Cable junction and distribution boxes
Switchgear and control panels
Industrial power distribution systems
Multi-cable connection and branching projects
Building electrical distribution systems
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
