Cable Lugs & Connectors
Ssyg Al-Cu Electrical Connector, Crimp Conductor Fittings Copper Cable Clamp Terminal Connector for 240-800mm² Wire
Product Overview

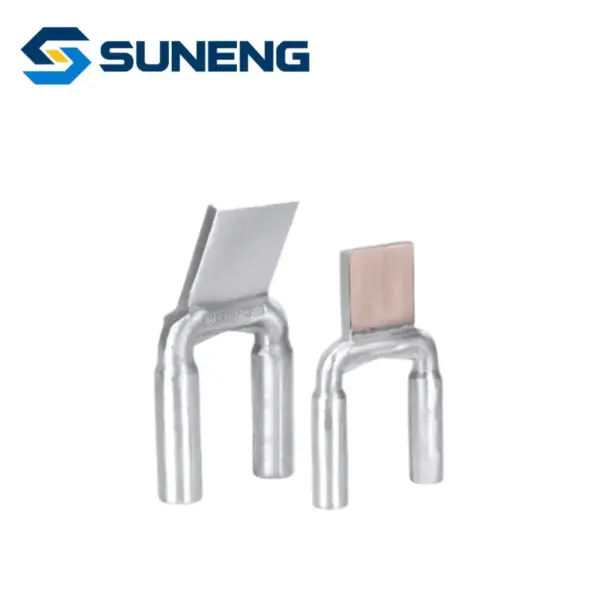

SSYG copper-aluminum transition double terminal clamp is designed for connecting substation busbar downleads to transformers, circuit breakers and switchgear. Featuring a double conductor design for simultaneous connection of two conductors, it utilizes friction welding technology for reliable copper-aluminum transition. The bolted type connection allows easy installation without hydraulic tools. Available in multiple conductor sizes from 240mm² to 800mm² with length options of 120mm, 200mm and 400mm. Compliant with GB/T 2341 and DL/T 346 standards.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
• Series: SSYG Series
• Type: Copper-Aluminum Transition Double Terminal Clamp
• Conductor Range: 240-800mm²
• Length Options: 120mm / 200mm / 400mm
• Material: Copper + Aluminum Alloy
• Connection: Bolted Type
• Standard: GB/T 2341, DL/T 346
• Series: SSYG Series
• Type: Copper-Aluminum Transition Double Terminal Clamp
• Conductor Range: 240-800mm²
• Length Options: 120mm / 200mm / 400mm
• Material: Copper + Aluminum Alloy
• Connection: Bolted Type
• Standard: GB/T 2341, DL/T 346
Product Features
- Dual Conductor Design – Simultaneous connection of two conductors for doubled capacity.
- Anti-Corrosion – Copper-aluminum transition prevents galvanic corrosion.
- Bolted Type – Easy installation without hydraulic tools.
- Flexible Sizing – Multiple lengths (120/200/400mm) for busbar adaptation.
- Standard Compliant – GB/T 2341 and DL/T 346 certified.

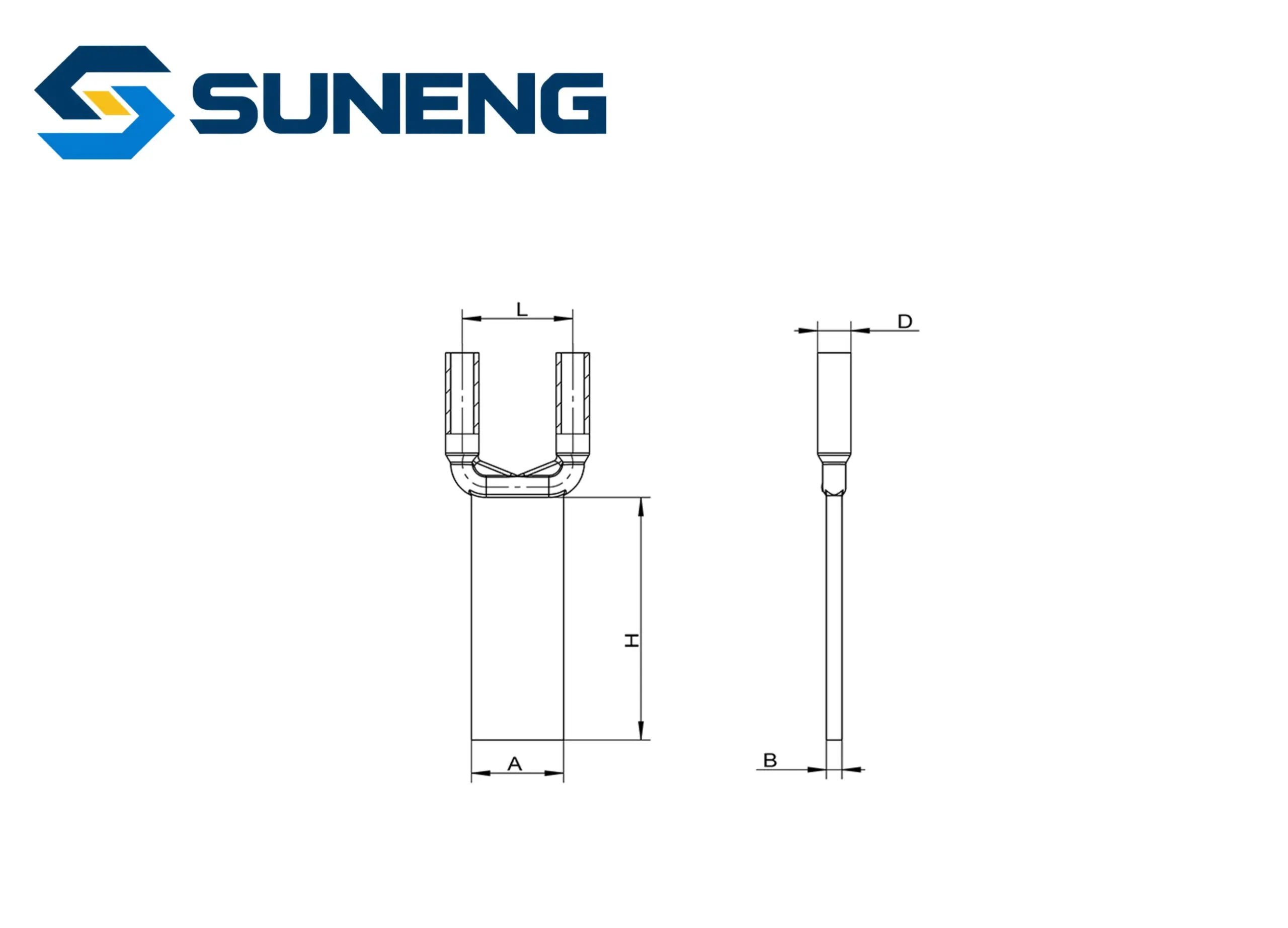

Product Structure

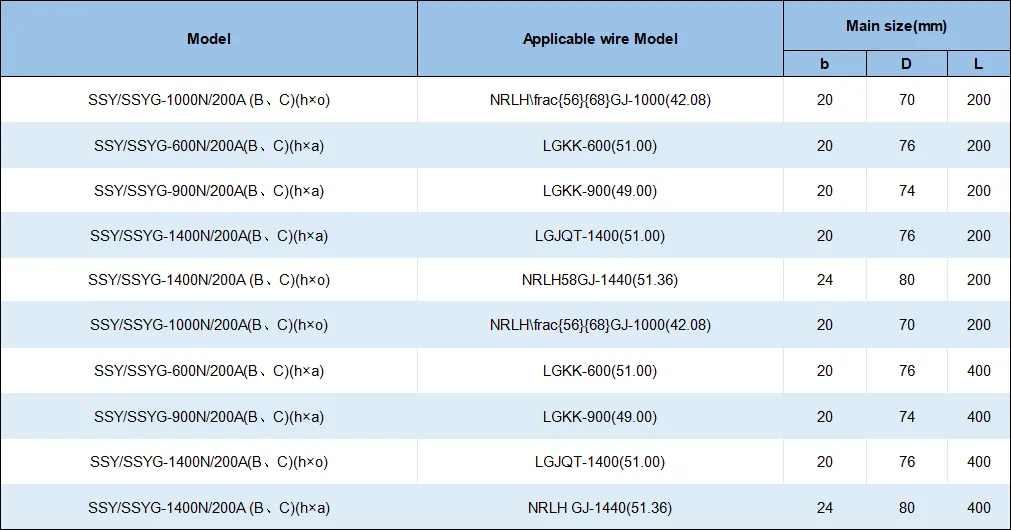

Performance & Dimensions
Applications
• Substation busbar downleads connecting to transformers, circuit breakers and switchgear.
• High-voltage distribution equipment terminal connections.
• Power transmission and transformation projects requiring double conductor connections.
• Copper to aluminum equipment transition connections.
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
