Cable Lugs & Connectors
Blmt Aluminum Alloy Copper 1/2/3 Torque Mechanical Shear Bolt Lugs Terminal Lugs for 16-630mm² Cable
Product Overview

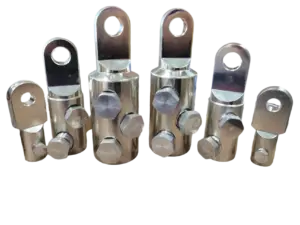

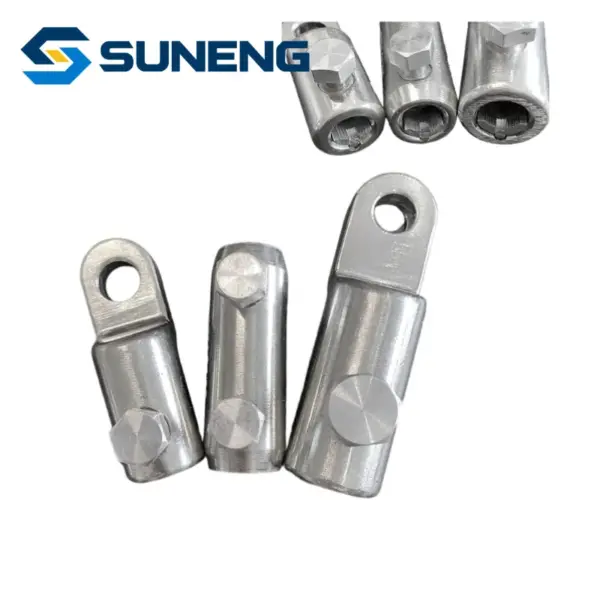

BLMT Series Bolt-Type Aluminum Mechanical Terminal is bolt-clamped aluminum cable lug, no hydraulic crimp tools needed, used for aluminum wire to equipment connection, service life over 30 years for overhead power lines.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Model: BLMT Series
Interface Type: Bolt-fastened aluminum mechanical terminal
Material: Extruded aluminum alloy + galvanized steel bolts
Service Life: Over 30 Years
Manufacturing Process: Aluminum extrusion + machining
Operating Temperature: -40-+105℃
Installation Method: Torque wrench tightening, no hydraulic crimping
Applicable Conductor Range: 16-630 mm² aluminum wire
Bolt Config: 1/2/3 clamping bolts, bolt size 13/17/19/20/22/27 mm
Model: BLMT Series
Interface Type: Bolt-fastened aluminum mechanical terminal
Material: Extruded aluminum alloy + galvanized steel bolts
Service Life: Over 30 Years
Manufacturing Process: Aluminum extrusion + machining
Operating Temperature: -40-+105℃
Installation Method: Torque wrench tightening, no hydraulic crimping
Applicable Conductor Range: 16-630 mm² aluminum wire
Bolt Config: 1/2/3 clamping bolts, bolt size 13/17/19/20/22/27 mm
Product Features
- No crimp machine required for field installation
- Extruded aluminum body, stable low-resistance contact
- Single mounting hole for quick equipment connection
- Full sizes cover 16-630 mm² aluminum conductors
- Easy maintenance, re-tighten bolts to restore clamping force

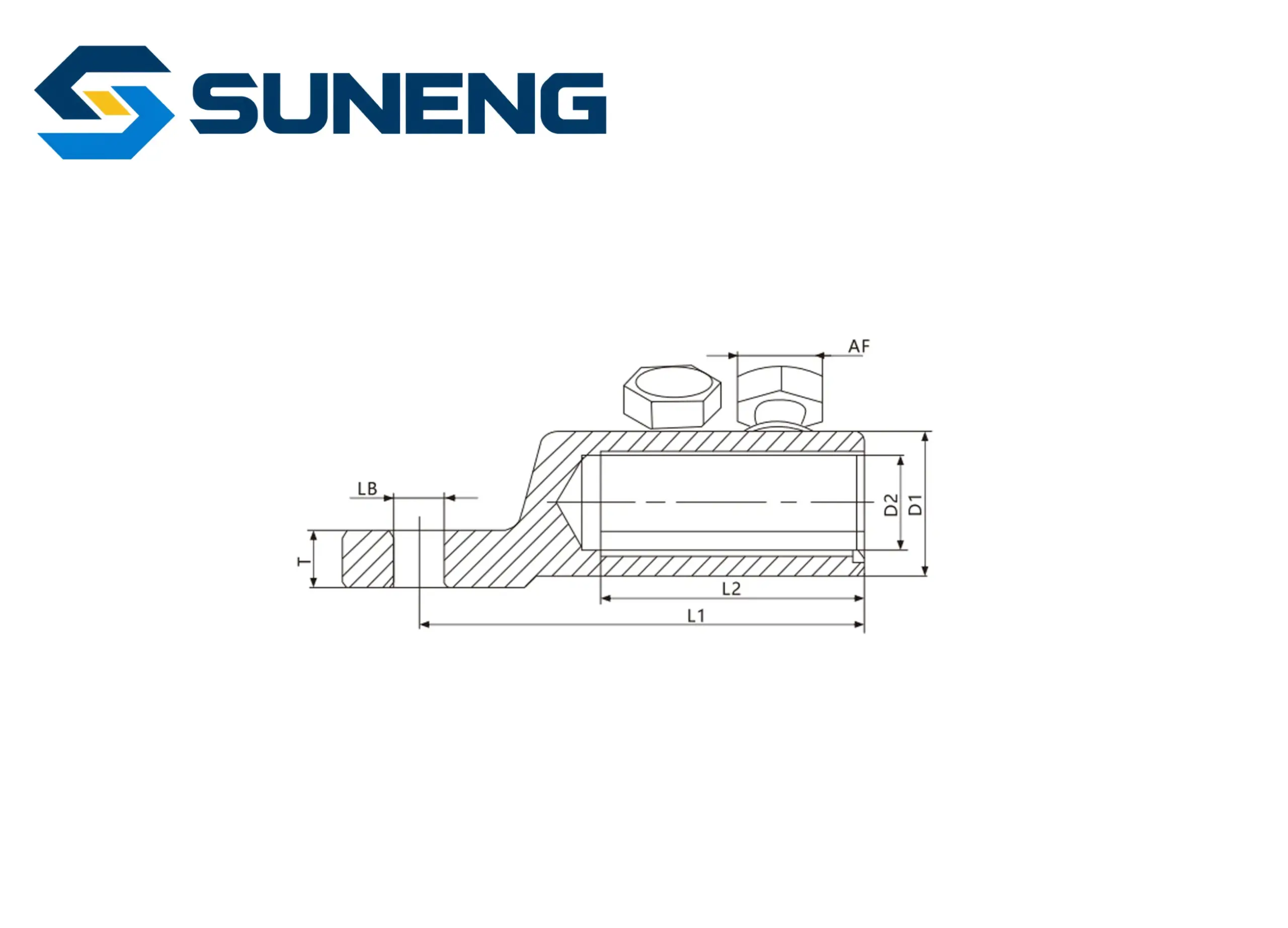

Product Structure

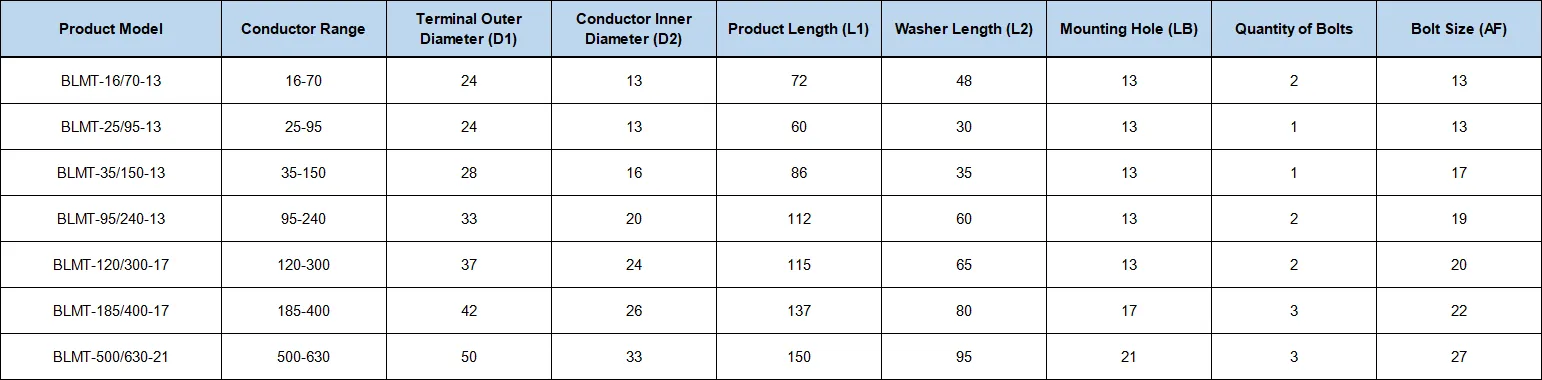

Performance & Dimensions
Applications
• Aluminum overhead wire to power equipment termination
• Substation overhead outlet wiring
• Outdoor power grid rapid construction
• Matching use with AMB bolt-type splice sleeves
