DTL Double Hole Bimetallic Cable Terminal Lugs for High Current Busbar Connections
Product Overview

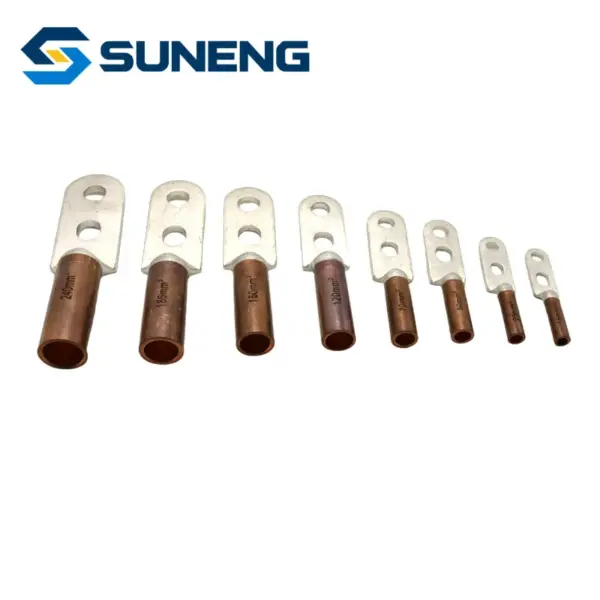

The DTL double-hole bimetallic cable lug is designed for aluminum cable termination where a two-bolt connection is required. The double-hole palm provides improved connection stability for high-current equipment and busbar applications.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Double-hole design improves anti-rotation performance
- Provides a larger and more stable contact area
- Suitable for high-current cable and busbar connections
- Copper-aluminum transition helps reduce corrosion risk
- Available for cable sizes from 16 to 240mm²
Technical Specifications
| No. | Product Name | Model | Cable Cross Section(mm²) | Material | Round Bolt Hole Diameter(mm) | Oval Bolt Hole Diameter(mm) | Hole Center Distance(mm) | Copper Tube Inner Diameter(mm) | Copper Tube Outer Diameter(mm) | Total Length(mm) | L1 Length(mm) | Lug Width(mm) | Weight(g) | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-16 | 16 | Pure Copper+Aluminum | 8.4 | 12.1 | 30.2 | 6.3 | 9.6 | 82.3 | 31 | 15.7 | 19.77 | Copper tube pickling, aluminum plate passivation |
| 2 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-25 | 25 | Pure Copper+Aluminum | 8.7 | 11.3 | 29.5 | 7.5 | 10.8 | 89.3 | 34.7 | 17.8 | 24.43 | Copper tube pickling, aluminum plate passivation |
| 3 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-50 | 50 | Pure Copper+Aluminum | 10.9 | 13.8 | 33.1 | 10 | 13.7 | 103.5 | 39.5 | 22.7 | 44.05 | Copper tube pickling, aluminum plate passivation |
| 4 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-70 | 70 | Pure Copper+Aluminum | 10.9 | 13.9 | 37.2 | 11.4 | 15.7 | 118.1 | 44.8 | 25.8 | 62.4 | Copper tube pickling, aluminum plate passivation |
| 5 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-120 | 120 | Pure Copper+Aluminum | 12.9 | 15.4 | 44.6 | 16.1 | 19.8 | 134.7 | 56.3 | 29.9 | 97.74 | Copper tube pickling, aluminum plate passivation |
| 6 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-150 | 150 | Pure Copper+Aluminum | 15 | 18.2 | 46.4 | 17 | 21.7 | 143.7 | 57.7 | 34 | Copper tube pickling, aluminum plate passivation | |
| 7 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-185 | 185 | Pure Copper+Aluminum | 15.1 | 17.7 | 52.3 | 18.9 | 24.7 | 155.5 | 59.7 | 36.7 | Copper tube pickling, aluminum plate passivation | |
| 8 | DLT Double Hole Copper-Aluminum Transition Cable Lug | DLT-2-240 | 240 | Pure Copper+Aluminum | 15.1 | 17.8 | 51.3 | 21.2 | 26.7 | 162 | 66.4 | 39.8 | Copper tube pickling, aluminum plate passivation |
Applications
High-current switchgear
Transformer and circuit breaker terminals
Busbar systems
Substation equipment
Industrial power distribution panels
