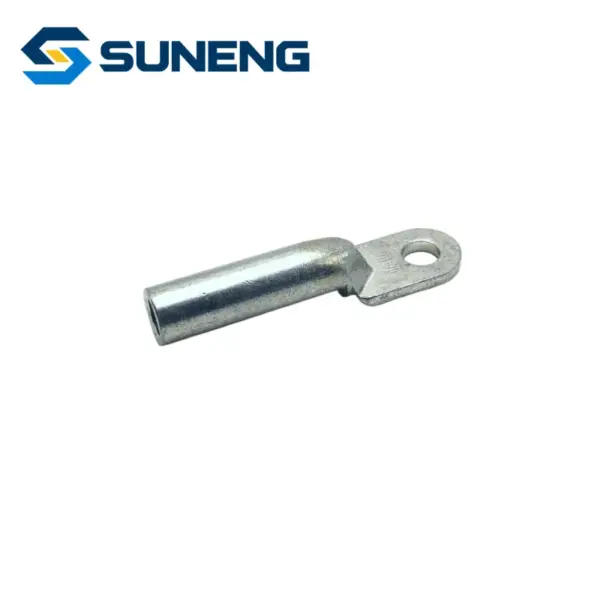

DTL Single Hole Bimetallic Terminal Cable Lug for Copper Aluminum Cable Connections
Product Overview
The DTL single-hole cable lug is designed for connecting aluminum cables to copper terminals, busbars and electrical equipment. Its bimetallic transition structure helps achieve a stable connection between dissimilar conductor materials.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for copper-to-aluminum cable connections
- Single-hole palm fits standard terminal studs
- Reduces galvanic corrosion risk
- Low contact resistance supports efficient power transmission
- Suitable for crimping and long-term cable termination
Technical Specifications
| No. | Product Name | Model | Cross Section(mm²) | Material | Bolt Hole Dia(mm) | Tube Inner Dia(mm) | Tube Outer Dia(mm) | Total Length(mm) | L1 Length(mm) | Lug Width(mm) | Weight(g) | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DTL Single Hole Aluminum Cable Lug | DTL-70 | 70 | Aluminum | 12.9 | 12.1 | 17.8 | 102.5 | 50.7 | 25.5 | 41.46 |
Applications
Low- and medium-voltage cable networks
Distribution cabinets
Transformer connections
Switchgear terminals
Substation equipment
Workshop
