DTL Bimetallic Cable Lug and Copper Aluminum Compression Terminal for Power Cables
Product Overview

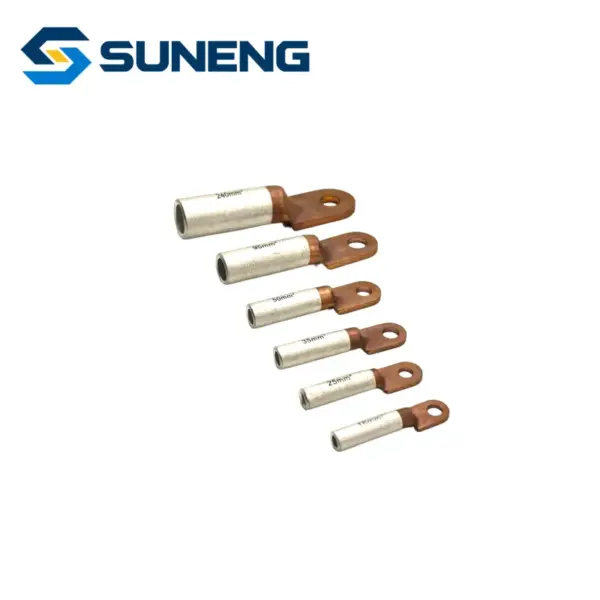

The DTL bimetallic cable lug is a compression terminal used to connect aluminum conductors with copper electrical terminals. It combines a copper palm and aluminum barrel to provide a dependable transition connection in power distribution systems.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Copper palm and aluminum barrel for dissimilar-metal connection
- Suitable for crimping aluminum power cables
- Low contact resistance supports efficient current transfer
- Tin-plated contact surface improves corrosion resistance
- Available for cable sizes from 16 to 300mm²
Technical Specifications
| No. | Product Name | Model | Cable Cross Section(mm²) | Material | Bolt Hole Diameter(mm) | Tube Inner Diameter(mm) | Tube Outer Diameter(mm) | Total Length(mm) | L1 Length(mm) | Lug Width(mm) | Weight(g) | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 16 | 16 | Aluminum+Copper | 9 | 6.7 | 11 | 69.3 | 36.7 | 15.8 | 21.72 | |
| 2 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 25 | 25 | Aluminum+Copper | 8.8 | 7.3 | 11.7 | 73.8 | 41 | 18 | 25.77 | |
| 3 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 35 | 35 | Aluminum+Copper | 11 | 8 | 13.9 | 84 | 44 | 19.8 | 41.86 | |
| 4 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 50 | 50 | Aluminum+Copper | 10.5 | 9.5 | 15.7 | 90.7 | 45 | 22.7 | 62.21 | |
| 5 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 70 | 70 | Aluminum+Copper | 12.4 | 11.7 | 17.8 | 96.2 | 46.3 | 27.7 | 88.26 | |
| 6 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 95 | 95 | Aluminum+Copper | 14.8 | 15.7 | 21.9 | 120.4 | 60.4 | 29.7 | ||
| 7 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 150 | 150 | Aluminum+Copper | 14.8 | 17 | 24.7 | 121.7 | 59.1 | 33.5 | ||
| 8 | DLT Single Hole Copper-Aluminum Transition Cable Terminal (Aluminum Barrel, Copper Lug) | 240 | 240 | Aluminum+Copper | 16.3 | 21.4 | 29.2 | 142.8 | 66.8 | 39.7 |
Applications
Low- and medium-voltage cable terminations
Transformer and switchgear connections
Electrical distribution cabinets
Cable jointing and retrofit projects
Utility power distribution systems
