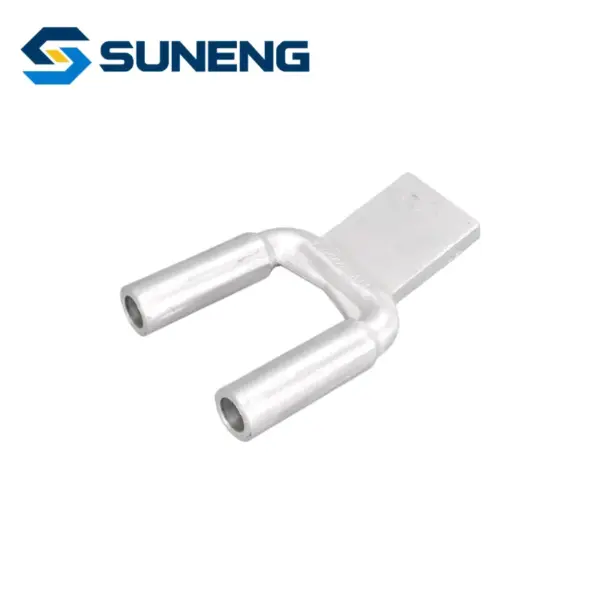

Ssy Electrical Connector Crimp Conductor Lugs Aluminum Cable Clamp Terminal Connector for 600-1440mm² Wire
Product Overview
SSY Series Double-tube Aluminum Terminal Connector is forged aluminum fitting for large-section overhead conductors, with stable electrical performance and service life over 30 years for high voltage transmission projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Model: SSY Series
Interface Type: Double Tube Cable Terminal Connector
Material: Forged aluminum alloy
Service Life: Over 30 Years
Connection Method: Hydraulic crimp connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV & above high voltage lines
Hole Type: Double crimp tube holes
Operating Temperature: -40℃ ~ +105℃
Installation Method: Hydraulic crimping
Applicable Wire: NRLH/GJ, LGKK, LGJQT large cross-section conductors
Main Size Range: b=20/24mm, D=70/74/76/80mm, L=200/400mm
Model: SSY Series
Interface Type: Double Tube Cable Terminal Connector
Material: Forged aluminum alloy
Service Life: Over 30 Years
Connection Method: Hydraulic crimp connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV & above high voltage lines
Hole Type: Double crimp tube holes
Operating Temperature: -40℃ ~ +105℃
Installation Method: Hydraulic crimping
Applicable Wire: NRLH/GJ, LGKK, LGJQT large cross-section conductors
Main Size Range: b=20/24mm, D=70/74/76/80mm, L=200/400mm
Product Features
- Double tube design improves crimping stability
- Low contact resistance, stable power transmission
- High mechanical strength for large-size wires
- Anti-corrosion aluminum for long outdoor use

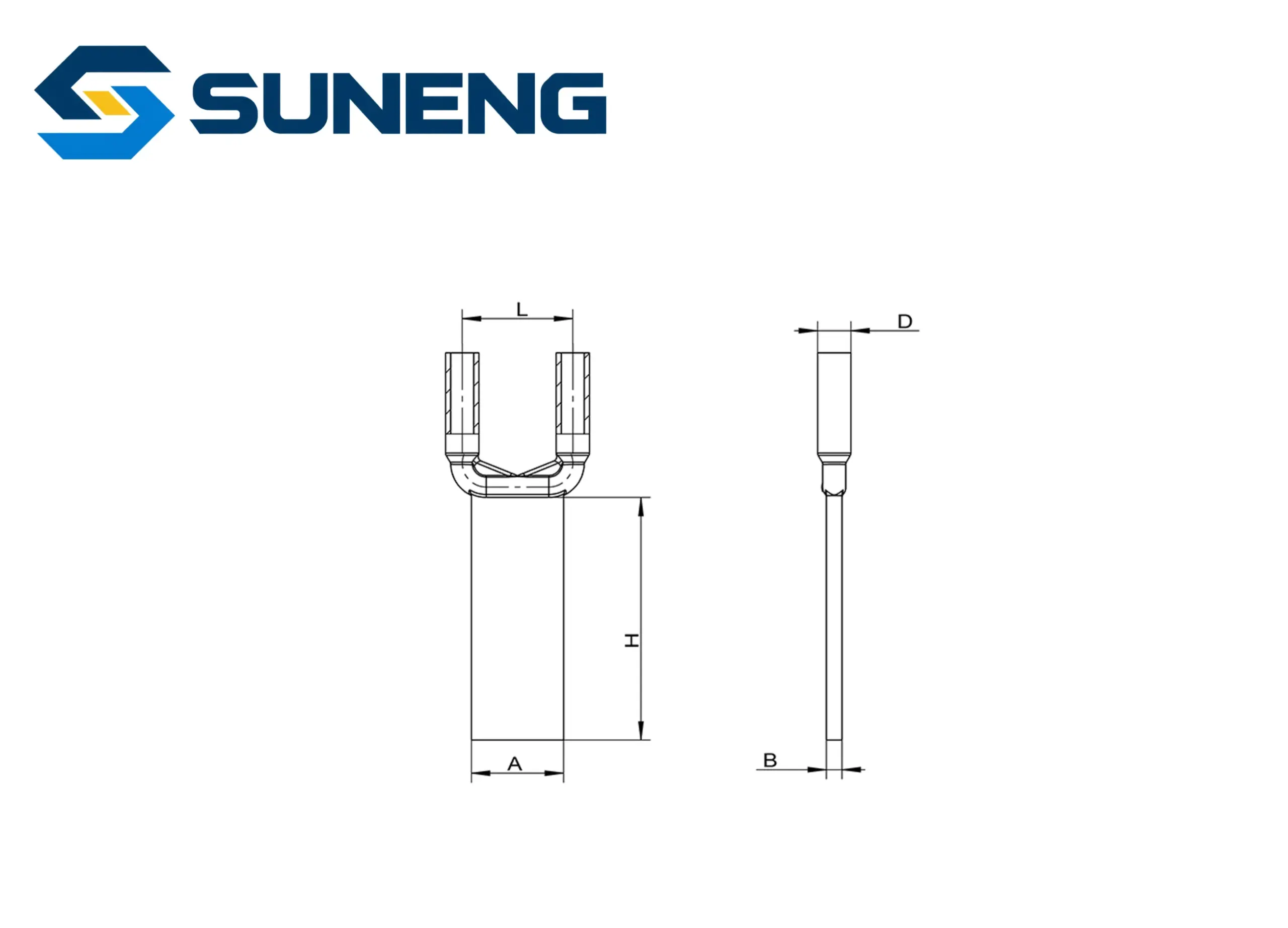

Product Structure

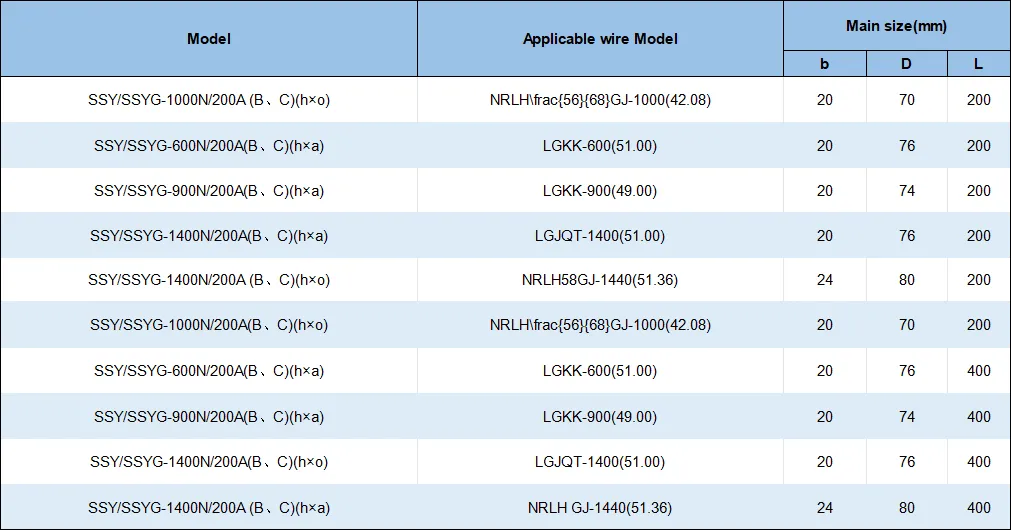

Performance & Dimensions
Applications
• Large overhead conductor terminal connection
• High voltage transmission line wiring
• Heavy-load power grid transition connection
• New energy power transmission projects
