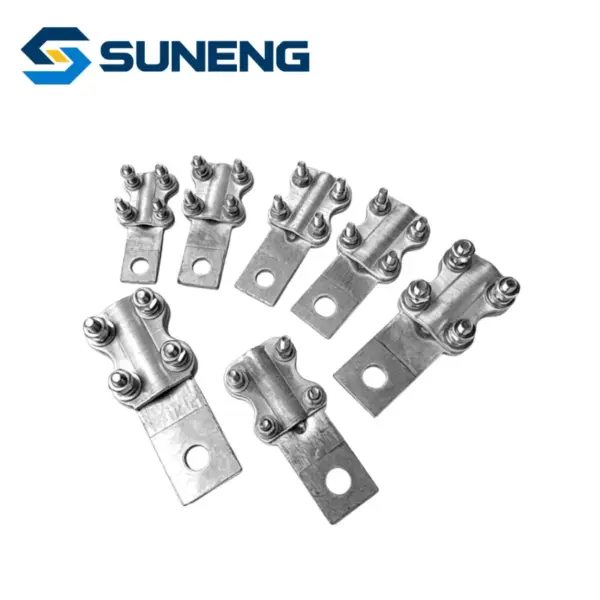

Jtl Electrical Connector, Bolted Terminal Lugs Aluminum Cable Clamp Terminal Connector for 16-185mm² Wire
Product Overview
JTL Series Bolted Equipment Terminal Clamp is made of high-purity aluminum alloy, designed for connecting overhead conductors to electrical equipment terminals. It features uniform bolt clamping force, low contact resistance, stable electrical performance and over 30 years service life for 10kV power distribution systems.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Model: JTL Series
Interface Type: Bolted Equipment Terminal Connector
Material: Forged aluminum alloy
Service Life: Over 30 Years
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV
Hole Type: Single mounting hole
Operating Temperature: -40℃ ~ +105℃
Installation Method: Bolt fastening
Conductor Range: 16–185 mm²
Number of Bolts per unit: 2 pcs
Model: JTL Series
Interface Type: Bolted Equipment Terminal Connector
Material: Forged aluminum alloy
Service Life: Over 30 Years
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV
Hole Type: Single mounting hole
Operating Temperature: -40℃ ~ +105℃
Installation Method: Bolt fastening
Conductor Range: 16–185 mm²
Number of Bolts per unit: 2 pcs
Product Features
- Integrated forged aluminum body with high mechanical strength
- Double-bolt clamping ensures uniform pressure and low contact resistance
- Good anti-corrosion performance for long-term outdoor use
- Complete model range covers common cable cross-sections
- Simple bolt fastening installation, no special tools required

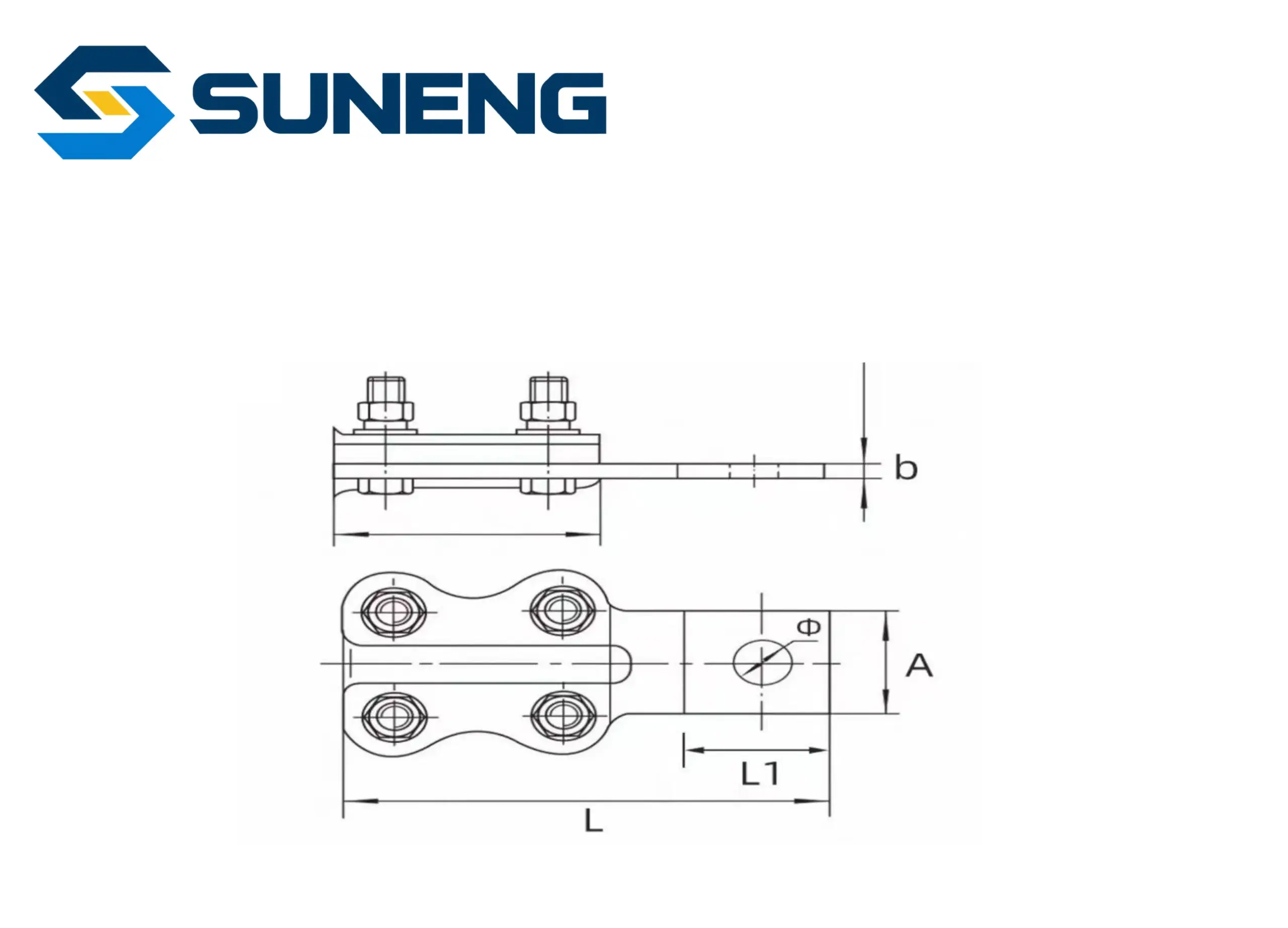

Product Structure

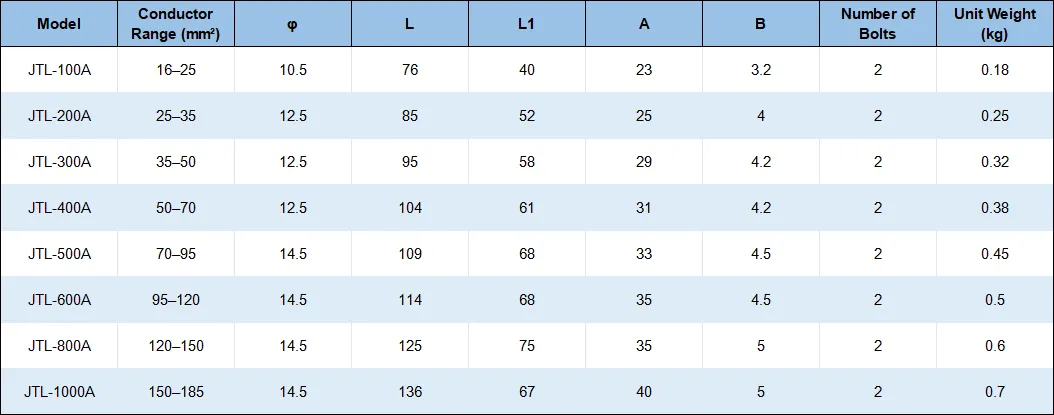

Performance & Dimensions
Applications
• Connection between overhead conductors and transformer / switchgear terminals
• 10kV medium voltage distribution line wiring
• Urban, rural and industrial power grid equipment connection projects
