Jx Cast Aluminum High Voltage Cable Fixing Clamp for 50-240 mm² Power Wire and Oil Pipelines
Product Overview
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Interface Type: 4-hole / 5-hole insulated cable clamp
Material: High-temperature phenolic resin insulator + galvanized steel bracket & bolts
Service Life: Over 30 Years
Connection Method: Bolt clamping fixation
Manufacturing Process: Resin molding + metal stamping
Corrosion Resistance: High insulation, heat-resistant, anti-aging
Applicable Voltage: Medium & low voltage power cabinet wiring
Operating Temperature: -40-+105℃
Installation Method: Mounted on cabinet with matched bolts
Applicable Cable Cross-section: 50-240 mm²
Overall Dimension: 180×43×22 mm / 240×56×25 mm
Screw Center Distance: 100-145 mm
Matching Bolt Spec: M10×80 / M10×100
Product Features
- 4-hole & 5-hole options for multi-cable centralized fixing
- High insulation resin block prevents electric leakage
- Heat-resistant structure adapts cabinet high-temperature environment
- Two sizes cover 50-240mm² mainstream cables
- Galvanized bracket resists rust for long-term indoor use

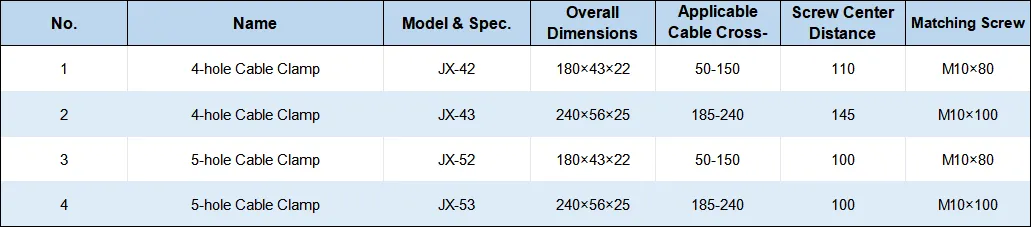

Product Structure
Applications
• Multi-cable concentrated fixation inside high-low voltage switch cabinets
• Power distribution cabinet internal cable layout
• Control cabinet intensive cable arranging
• Complete set electrical equipment wiring fixing
