Jgw (3) Cast Aluminum High Voltage Cable Fixing Clamp for 40-140 mm Power Wire and Oil Pipelines and Oil Pipelines
Product Overview

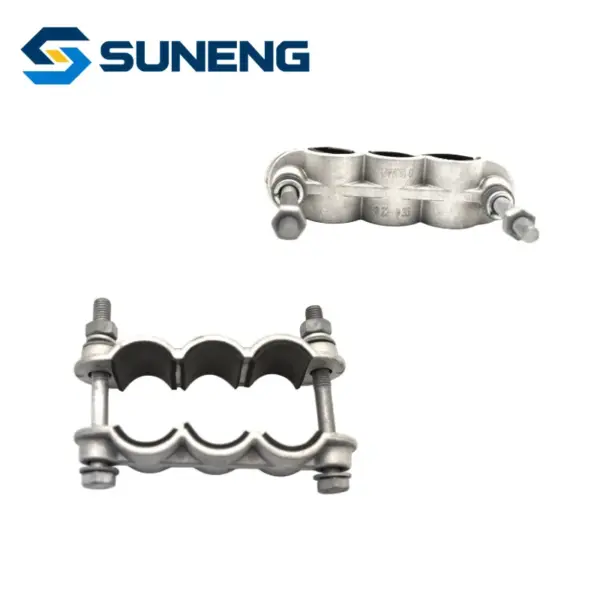

JGW(3) Series Three-Hole Cable Fixing Clamp is forged aluminum triple cable holder for fixing three medium-diameter high voltage cables, fitted with shock-absorbing rubber lining, service life over 30 years for power station cable projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 40-140 mm
Bolt Specification: 2-M12 / 2-M16
Dimension Range: L=174-364mm, W=60-100mm, H=78-190mm, L1=140-330mm
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 40-140 mm
Bolt Specification: 2-M12 / 2-M16
Dimension Range: L=174-364mm, W=60-100mm, H=78-190mm, L1=140-330mm
Product Features
- Integrated three-hole design fixes three cables simultaneously
- Rubber liner buffers vibration and protects cable outer sheath
- Double bolt locking for stable anti-slip cable fixation
- Complete size range fits medium-diameter power cables

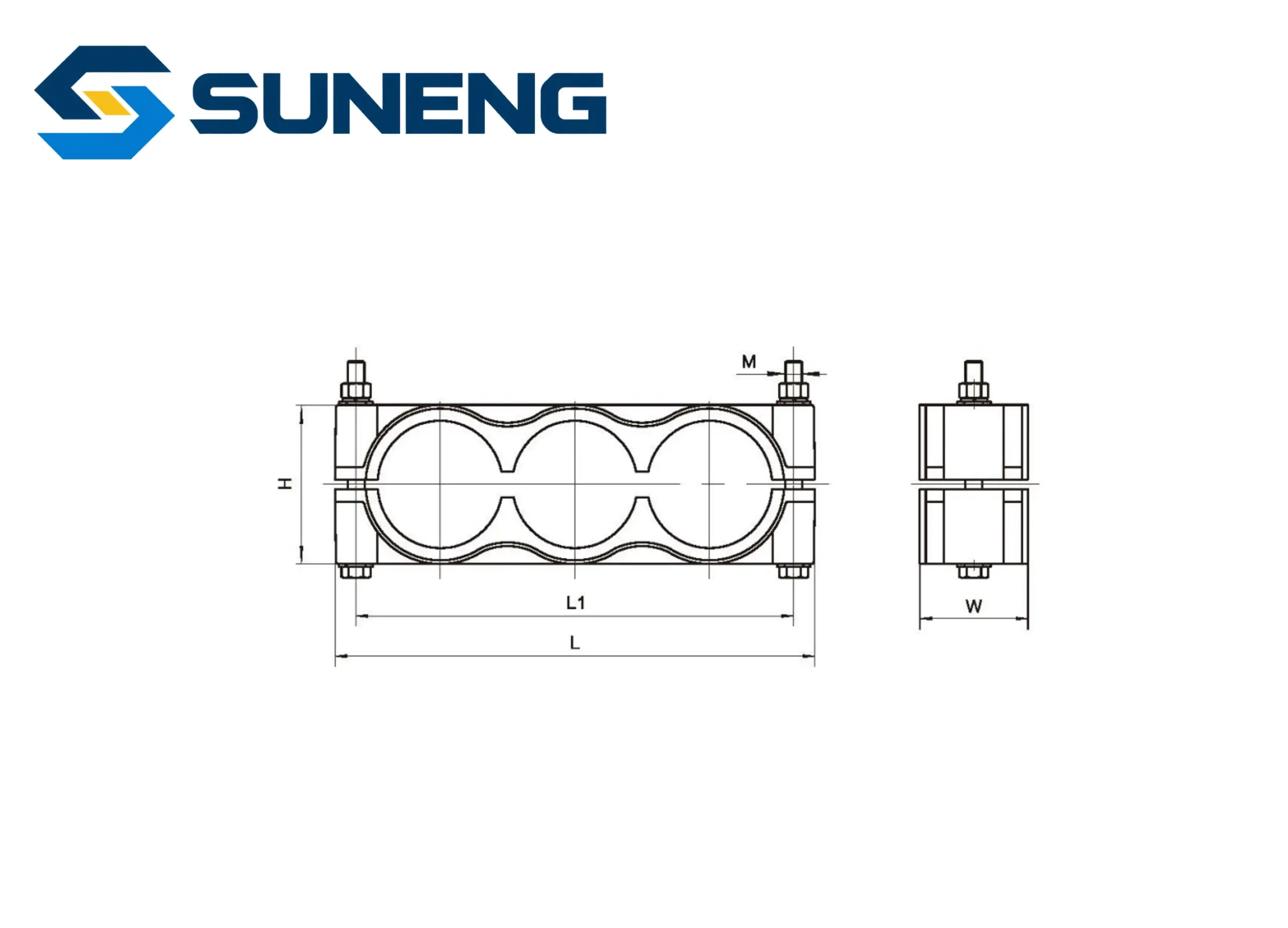

Product Structure

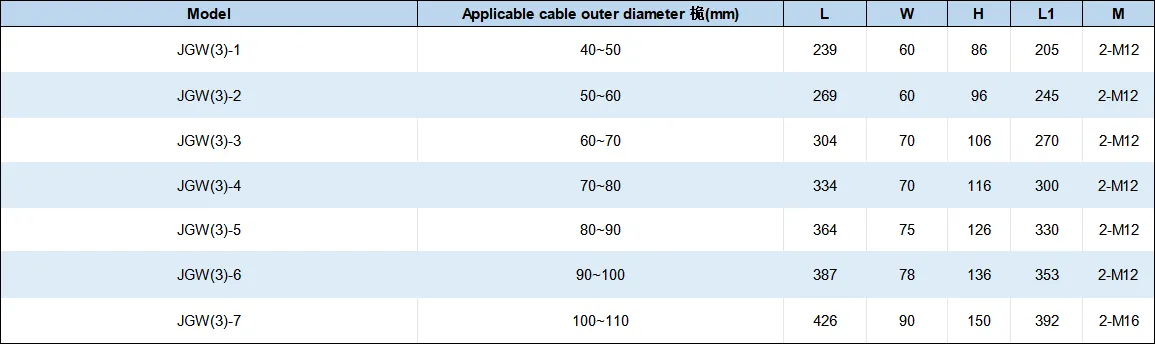

Performance & Dimensions
Applications
• Clustered fixing of three high voltage power cables
• Substation cable rack intensive layout
• Cable bridge and cable trench wiring installation
• Industrial medium voltage power transmission projects
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
3-Core Spring-Type Cable Cleat and Cable Fixing Clamp for 10kV/11kV Medium-Voltage Cables and Oil Pipelines
Three-Core Trefoil Cable Cleat and Cable Fixing Clamp for Medium-Voltage Power Cables and Oil Pipelines
K Glass Fiber Reinforced Nylon High Voltage Cable Fixing Clamp Electrical Connector for 24-100 mm Power Wire and Oil Pipelines
B Glass Fiber Reinforced Nylon High Voltage Cable Fixing Clamp for 20-150mm Power Wire and Oil Pipelines

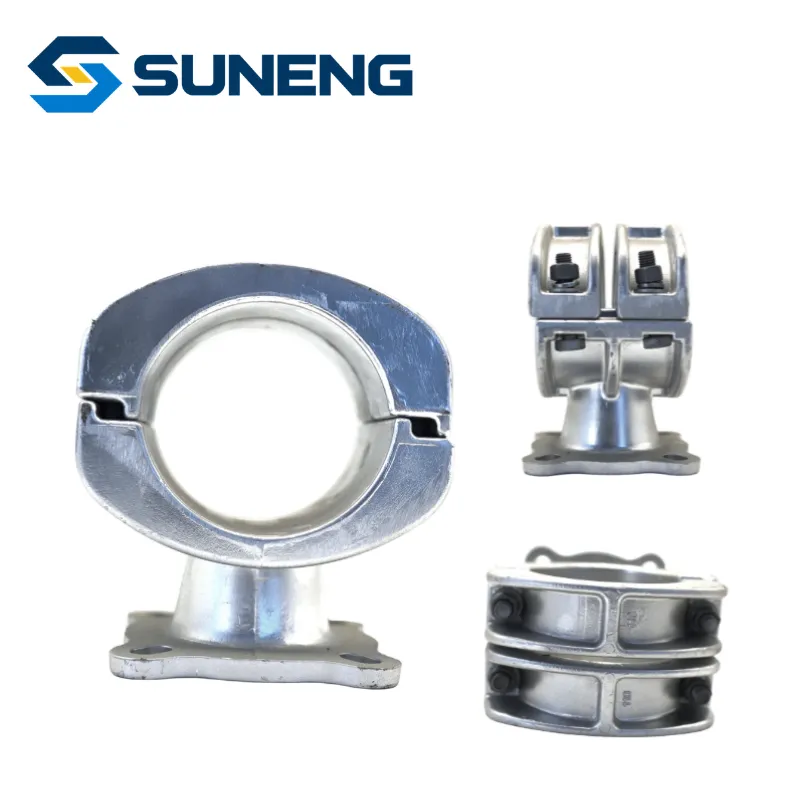

Mgg Cast Aluminum High Voltage Cable Fixing Clamp for φ30-250mm Power Wire and Oil Pipelines
