Jgpd Cast Aluminum High Voltage Cable Fixing Clamp for 45-180mm Power Wire and Oil Pipelines
Product Overview

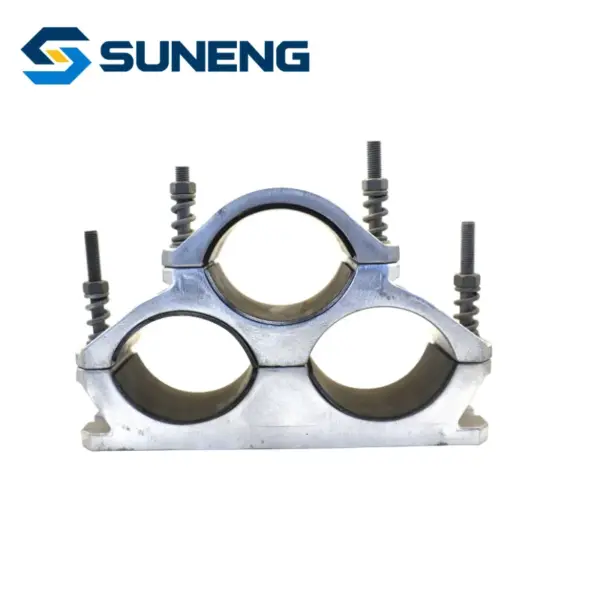

JGPD Series Three-Hole Cable Fixing Clamp is forged aluminum triple cable holder for simultaneously fixing three large-diameter power cables, equipped with shock-absorbing rubber lining, service life over 30 years for high voltage cable engineering.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 45-180 mm

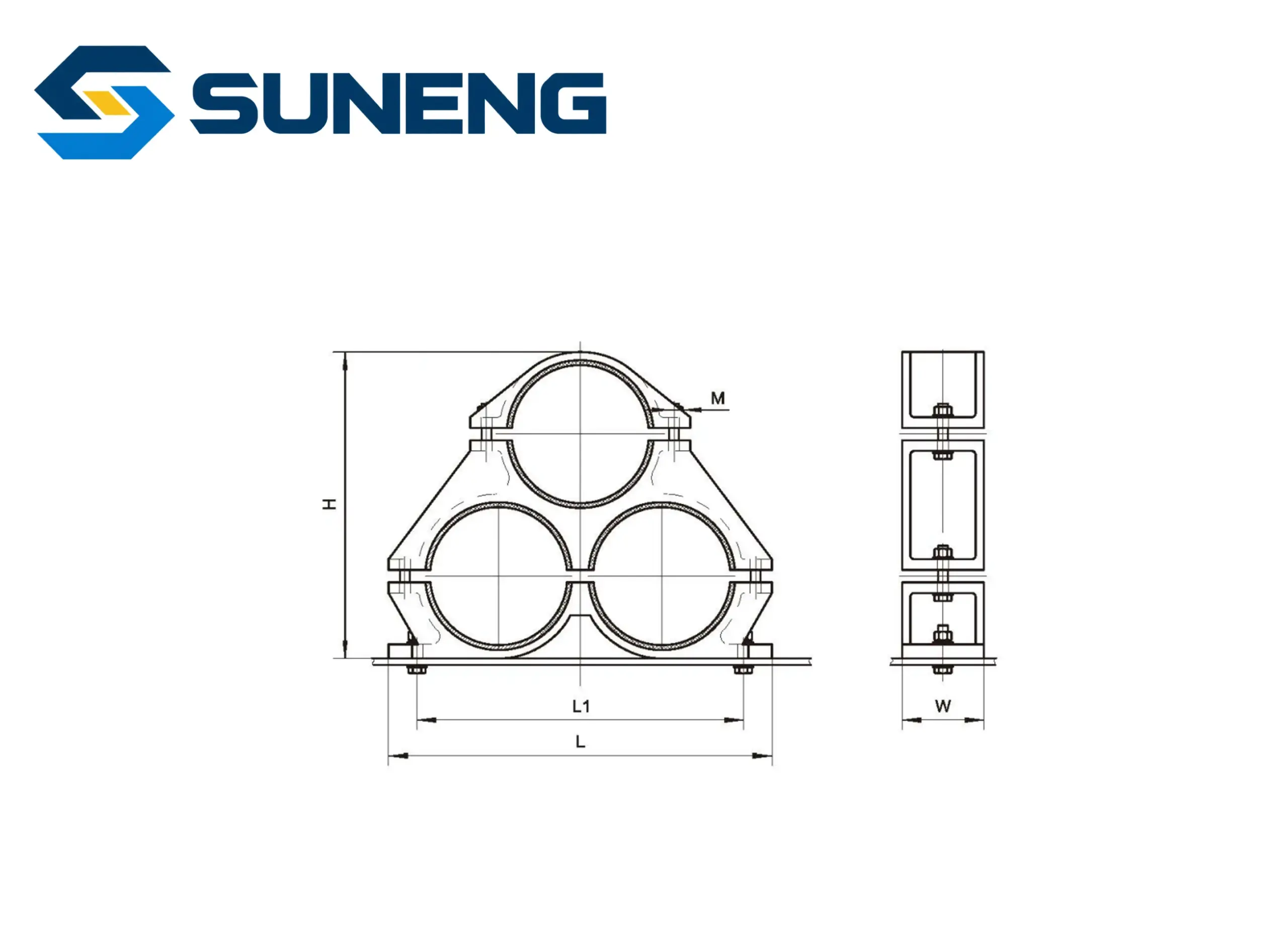

Dimension Range: L=260-450mm, W=50-100mm, H=150-310mm, L1=230-410mm
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 45-180 mm
Dimension Range: L=260-450mm, W=50-100mm, H=150-310mm, L1=230-410mm
Product Features
- Three-hole integrated design fixes three cables at one time
- Rubber lining buffers vibration and protects cable sheath
- Multi-bolt locking ensures stable anti-slip fixation
- Complete specifications match various large power cables
Product Structure

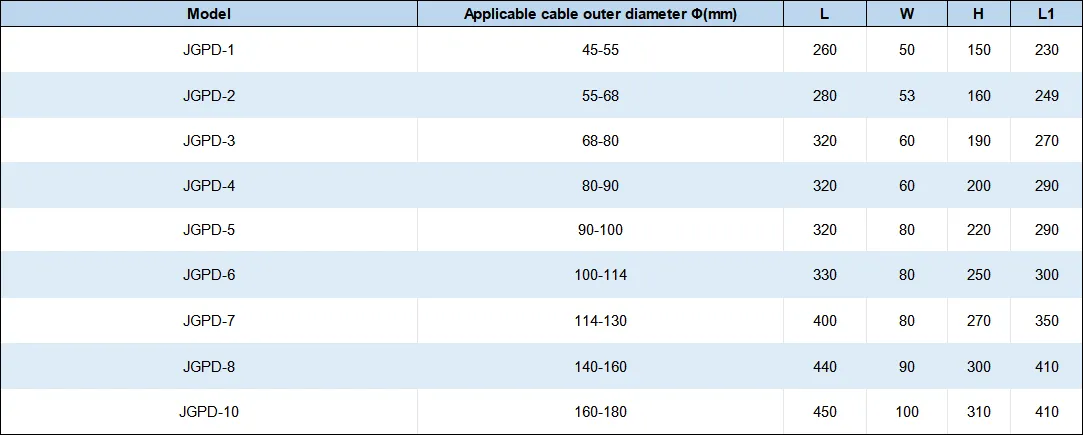

Performance & Dimensions

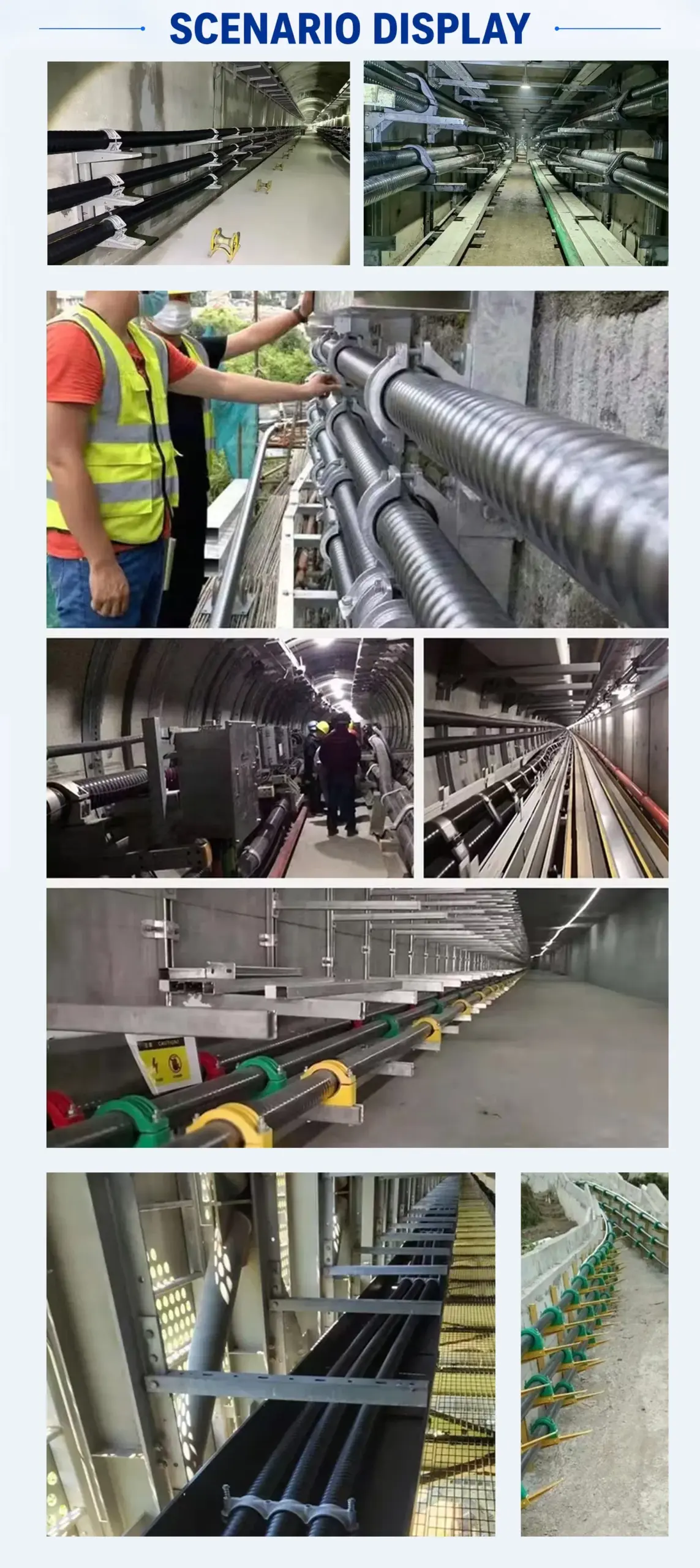

Applications
• Simultaneous fixing of three high voltage power cables
• Substation cable support and laying
• Cable bridge intensive wiring installation
• Heavy-duty industrial power transmission projects
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products

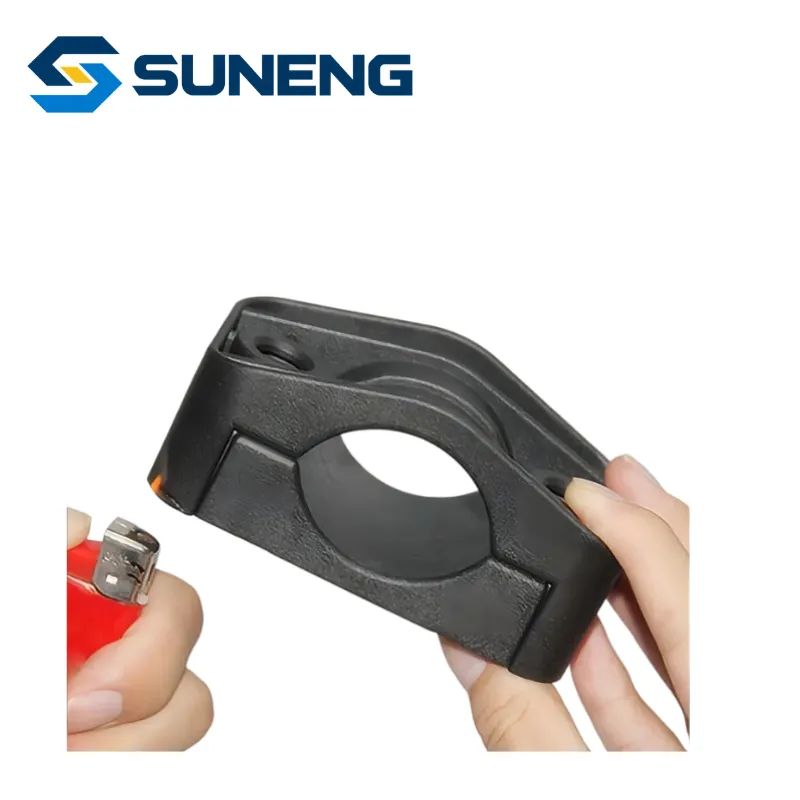

K Glass Fiber Reinforced Nylon High Voltage Cable Fixing Clamp Electrical Connector for 24-100 mm Power Wire and Oil Pipelines

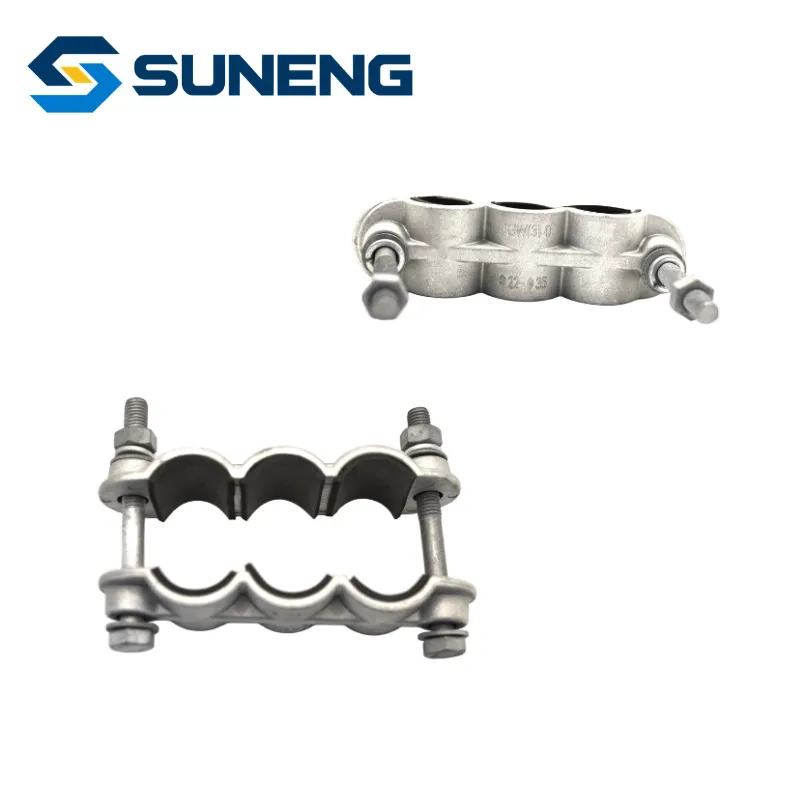

Jgw (3) Cast Aluminum High Voltage Cable Fixing Clamp for 40-140 mm Power Wire and Oil Pipelines and Oil Pipelines

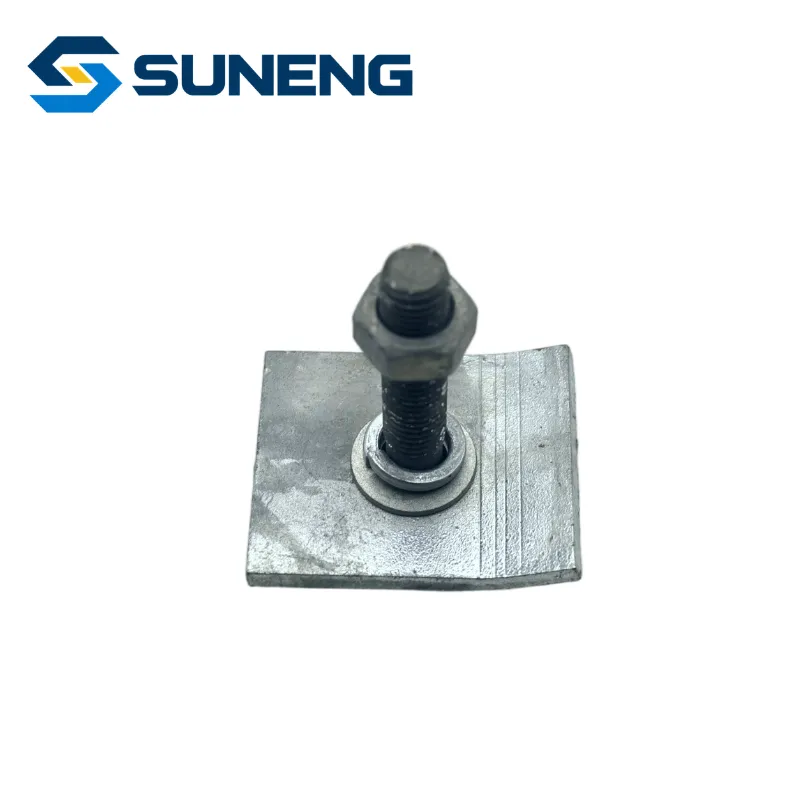

Square Cable Clamp Pressure Plate and Heavy-Duty Cable Fixing Plate for Electrical Connections

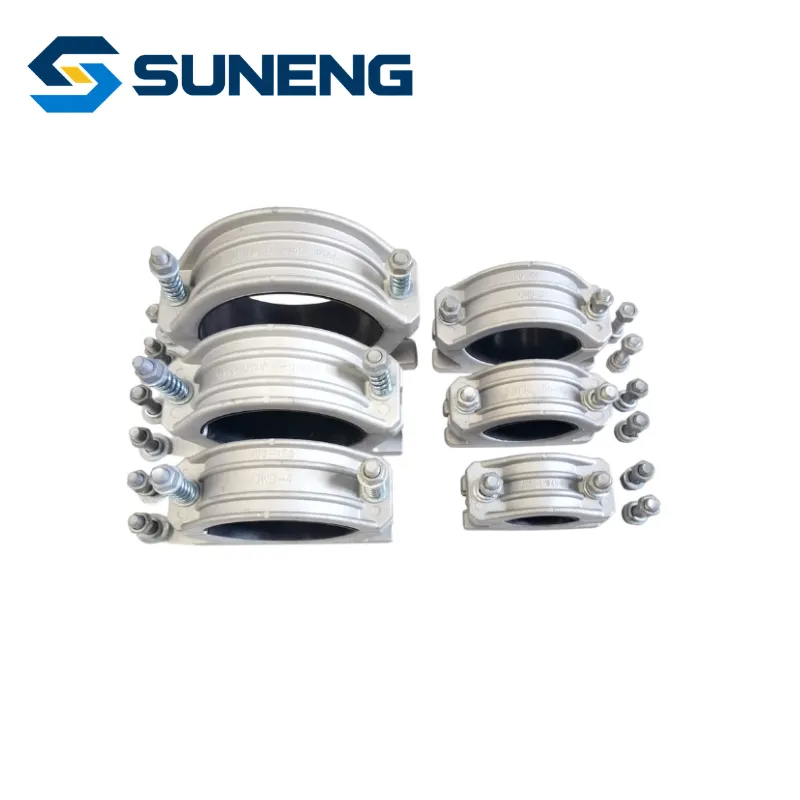

Jgwd Cast Aluminum High Voltage Cable Fixing ClampSingle Hole Electrical Connector for 55-180 mm Power Wire and Oil Pipelines

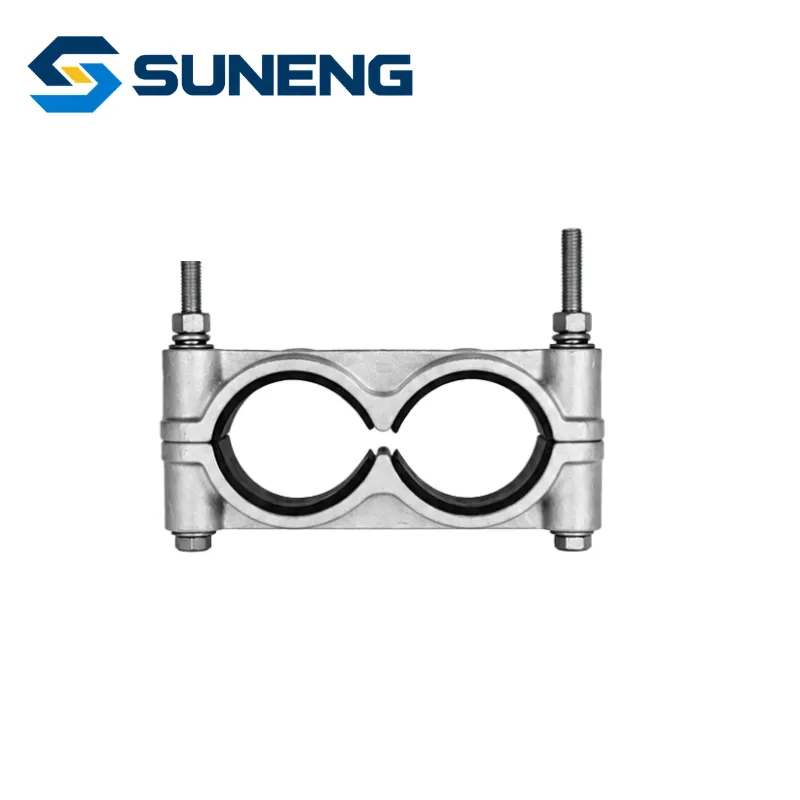

Jgw (2) Cast Aluminum High Voltage Cable Fixing Clamp Accessories Electrical Connector for 40-140 mm Power Wire and Oil Pipelines

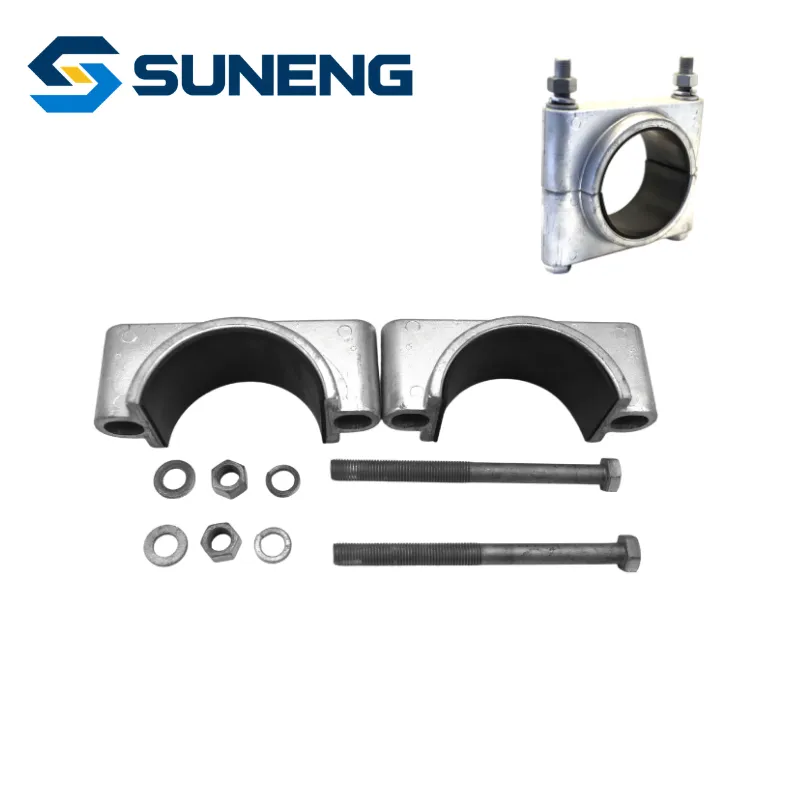

Jgw Aluminum Alloy High Voltage Cable Fixing Clamp Single Hole for 75-165 mm Power Wire and Oil Pipelines
