Jghd Cast Aluminum High Voltage Cable Fixing Clamp Accessories for 55-166 mm Power Wire and Oil Pipelines
Product Overview
JGHD Series Damping Single Hole Cable Fixing Clamp is forged aluminum cable holder with spring buffer structure for single large-diameter high voltage cables, fitted with shock-absorbing rubber liner, service life over 30 years for power station cable engineering.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Forged aluminum alloy + rubber inner liner + buffer spring
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Single cable clamping hole + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 55-166 mm
Bolt Specification: 2-M10 / 2-M12
Dimension Range: L=155-280mm, W=75-100mm, H=100-215mm, L1=125-230mm
Material: Forged aluminum alloy + rubber inner liner + buffer spring
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Single cable clamping hole + double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 55-166 mm
Bolt Specification: 2-M10 / 2-M12
Dimension Range: L=155-280mm, W=75-100mm, H=100-215mm, L1=125-230mm
Product Features
- Built-in spring buffer structure for superior vibration reduction
- Rubber lining protects cable sheath from friction damage
- Double bolt locking provides firm anti-slip fixation
- Complete size range covers various large power cables

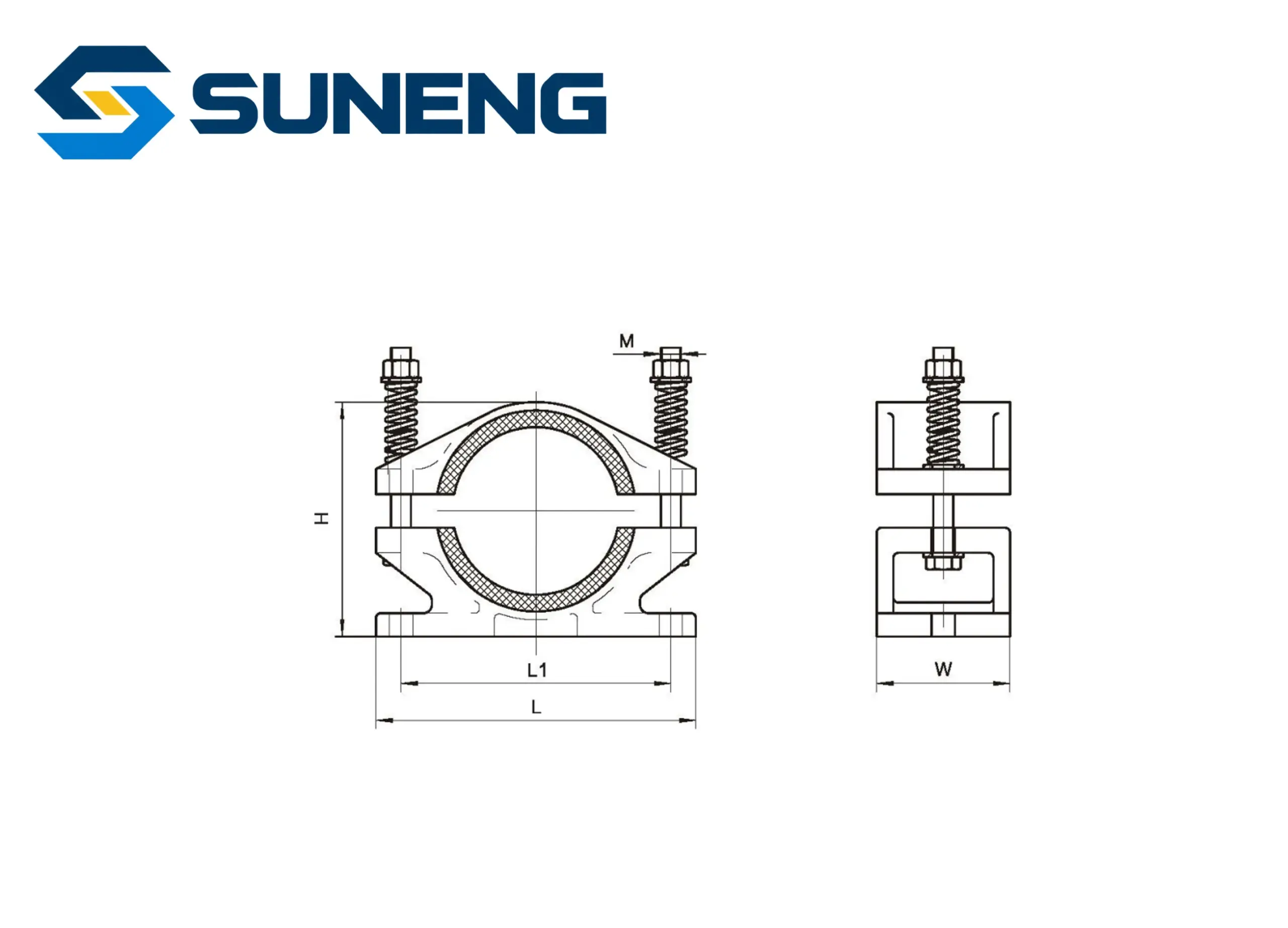

Product Structure

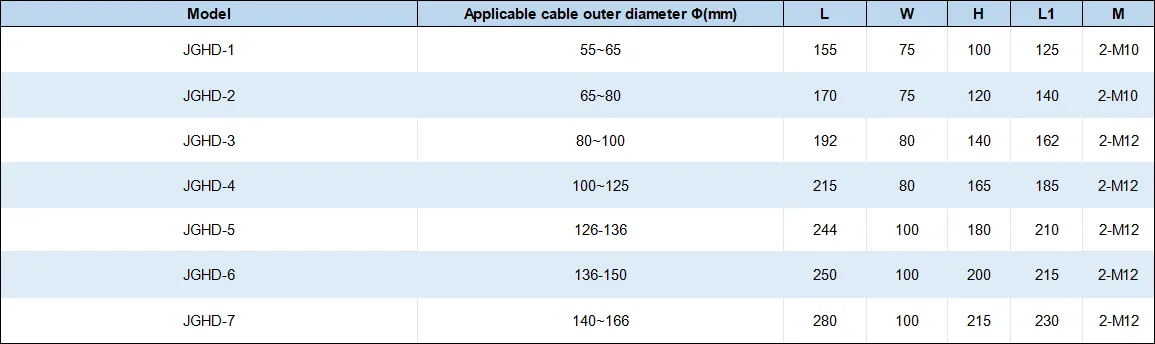

Performance & Dimensions
Applications
• Damping fixed support for single high voltage power cables
• Substation cable rack anti-vibration laying
• Cable bridge and cable trench wiring installation
• Heavy-duty industrial power transmission projects

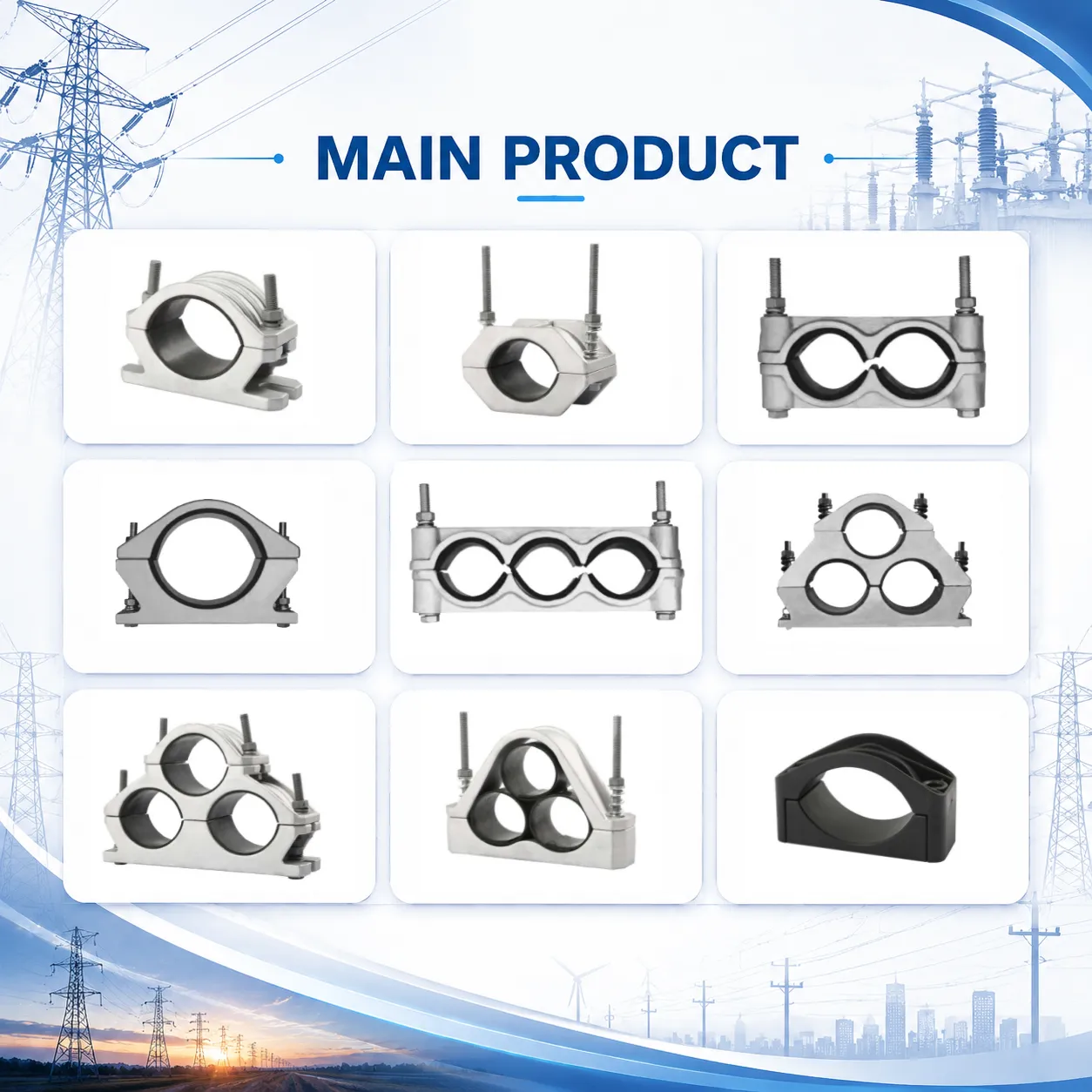

Main product
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Jgw (3) Cast Aluminum High Voltage Cable Fixing Clamp for 40-140 mm Power Wire and Oil Pipelines and Oil Pipelines
JPG Cast Aluminum High Voltage Cable Fixing Clamp Accessories 3-Core Electrical Connector for 45-180mm Power Wire and Oil Pipelines

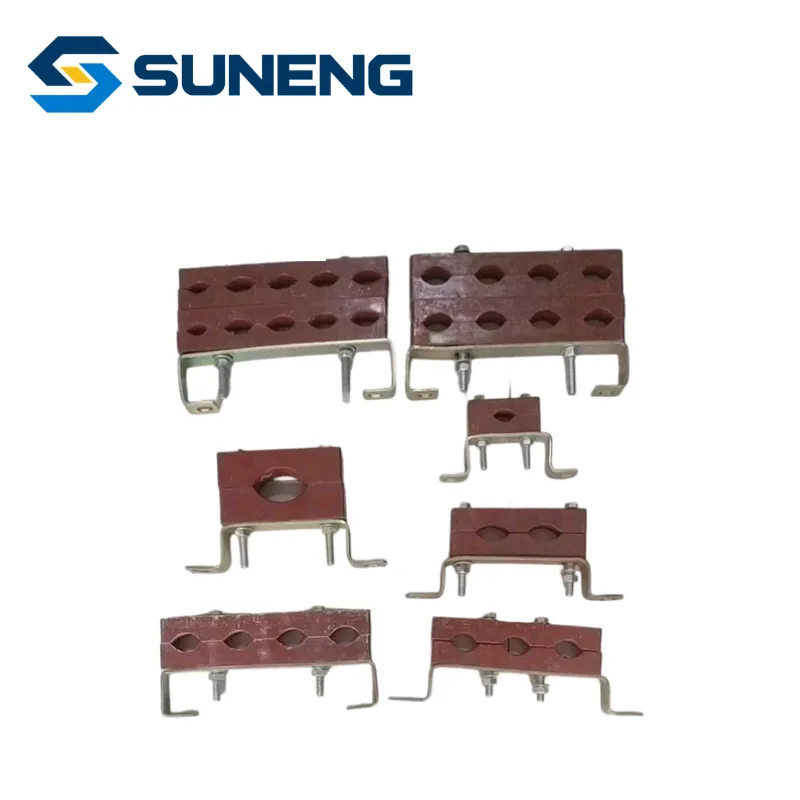

Jx Cast Aluminum High Voltage Cable Fixing Clamp for 50-240 mm² Power Wire and Oil Pipelines
Jgw Aluminum Alloy High Voltage Cable Fixing Clamp Single Hole for 75-165 mm Power Wire and Oil Pipelines
3-Core Spring-Type Cable Cleat and Cable Fixing Clamp for 10kV/11kV Medium-Voltage Cables and Oil Pipelines
Jgpd Cast Aluminum High Voltage Cable Fixing Clamp for 45-180mm Power Wire and Oil Pipelines

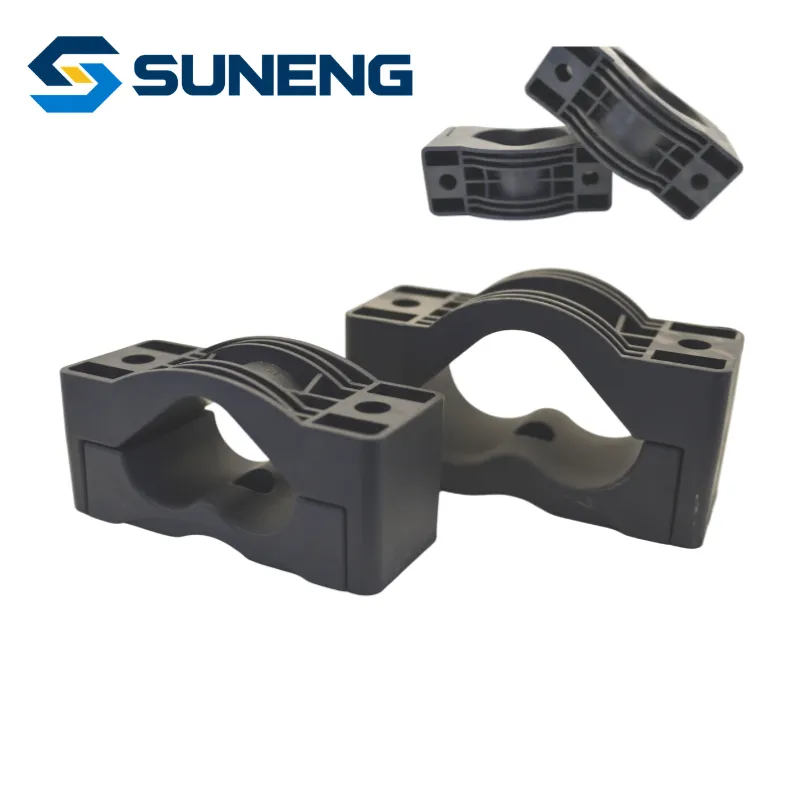

B Glass Fiber Reinforced Nylon High Voltage Cable Fixing Clamp for 20-150mm Power Wire and Oil Pipelines
