Cable Cleats & Clamps

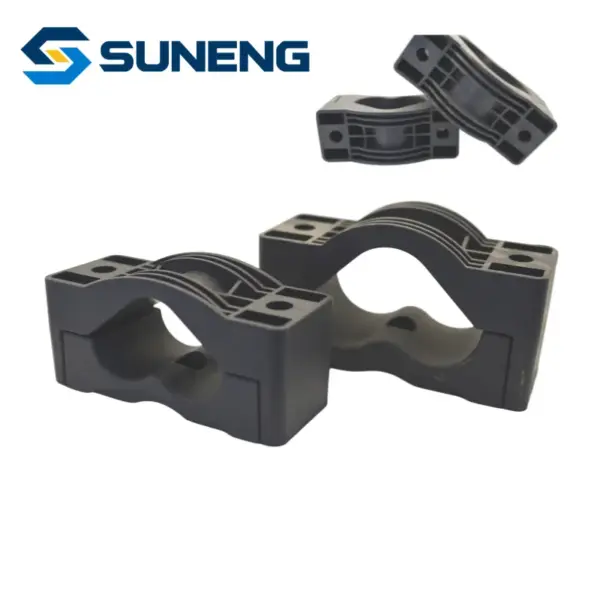

B Glass Fiber Reinforced Nylon High Voltage Cable Fixing Clamp for 20-150mm Power Wire and Oil Pipelines
Product Overview
B Series Plastic Cable Fixing Clamp is high-strength glass fiber reinforced nylon cable holder for single power cable fixing, with insulation, shock absorption and over 30 years service life for indoor and outdoor cable projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Glass fiber reinforced nylon
Service Life: Over 30 Years
Connection Method: Bolt clamping connection
Surface Treatment: Matte injection molding finish
Manufacturing Process: Injection molding
Corrosion Resistance: Excellent acid & alkali corrosion resistance
Applicable Voltage: Medium and high voltage cable lines
Hole Type: Single cable clamping hole + mounting bolt holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 20-150 mm
Dimension Range: A=90-150mm, B=43-87mm, C=61-120mm, D=22-65mm, E=34-98mm
Material: Glass fiber reinforced nylon
Service Life: Over 30 Years
Connection Method: Bolt clamping connection
Surface Treatment: Matte injection molding finish
Manufacturing Process: Injection molding
Corrosion Resistance: Excellent acid & alkali corrosion resistance
Applicable Voltage: Medium and high voltage cable lines
Hole Type: Single cable clamping hole + mounting bolt holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 20-150 mm
Dimension Range: A=90-150mm, B=43-87mm, C=61-120mm, D=22-65mm, E=34-98mm
Product Features
- Glass fiber reinforced nylon brings high mechanical strength
- Full insulation performance eliminates electric leakage hazards
- Built-in buffer structure eases vibration damage to cables
- Anti-rust, anti-corrosion, lightweight for long outdoor service

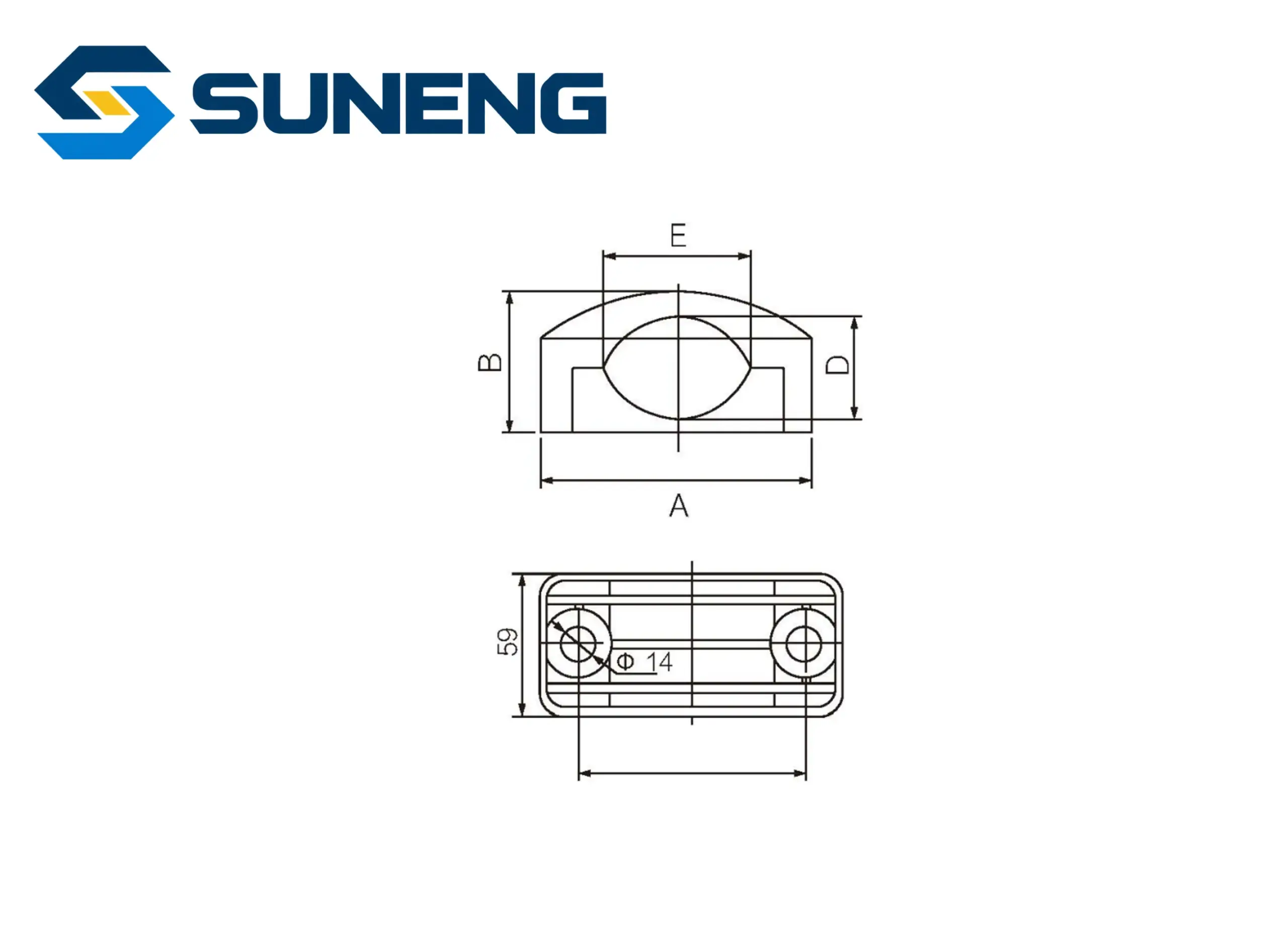

Product Structure

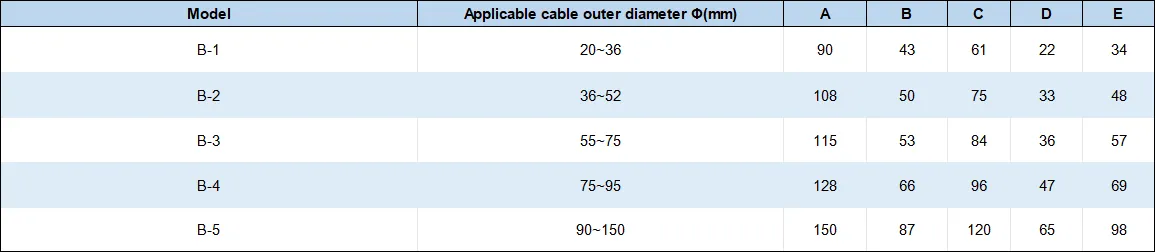

Performance & Dimensions
Applications
• Single cable fixed support inside substations
• Indoor cable bridge wiring installation
• Underground cable trench fixing layout
• New energy power transmission cable projects
