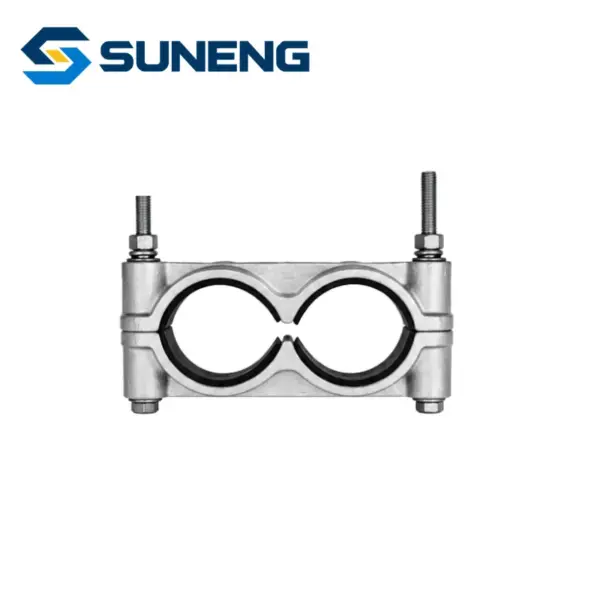

Jgw (2) Cast Aluminum High Voltage Cable Fixing Clamp Accessories Electrical Connector for 40-140 mm Power Wire and Oil Pipelines
Product Overview
JGW(2) Series Double-Hole Damping Cable Clamp is forged aluminum dual-cable fixing holder with spring buffer, used for two large-diameter high voltage cables anti-vibration fixation, service life over 30 years for substation cable projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Model: JGW(2) Series
Material: Forged aluminum alloy + rubber inner liner
Manufacturing Process: Hot forging forming
Applicable Voltage: High voltage power cables
Hole Type: Double cable clamping holes, 2 mounting bolts
Operating Temperature: -40-+105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 40-140 mm
Bolt Spec: 2-M12 / 2-M16
Dimension Range: L=174-364mm, W=60-100mm, H=78-190mm, L1=140-330mm
Model: JGW(2) Series
Material: Forged aluminum alloy + rubber inner liner
Manufacturing Process: Hot forging forming
Applicable Voltage: High voltage power cables
Hole Type: Double cable clamping holes, 2 mounting bolts
Operating Temperature: -40-+105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 40-140 mm
Bolt Spec: 2-M12 / 2-M16
Dimension Range: L=174-364mm, W=60-100mm, H=78-190mm, L1=140-330mm
Product Features
- Double-hole design fixes two cables at once
- Spring buffer greatly reduces vibration impact
- Rubber lining protects cable outer sheath
- Double bolt locking ensures stable anti-slip mounting

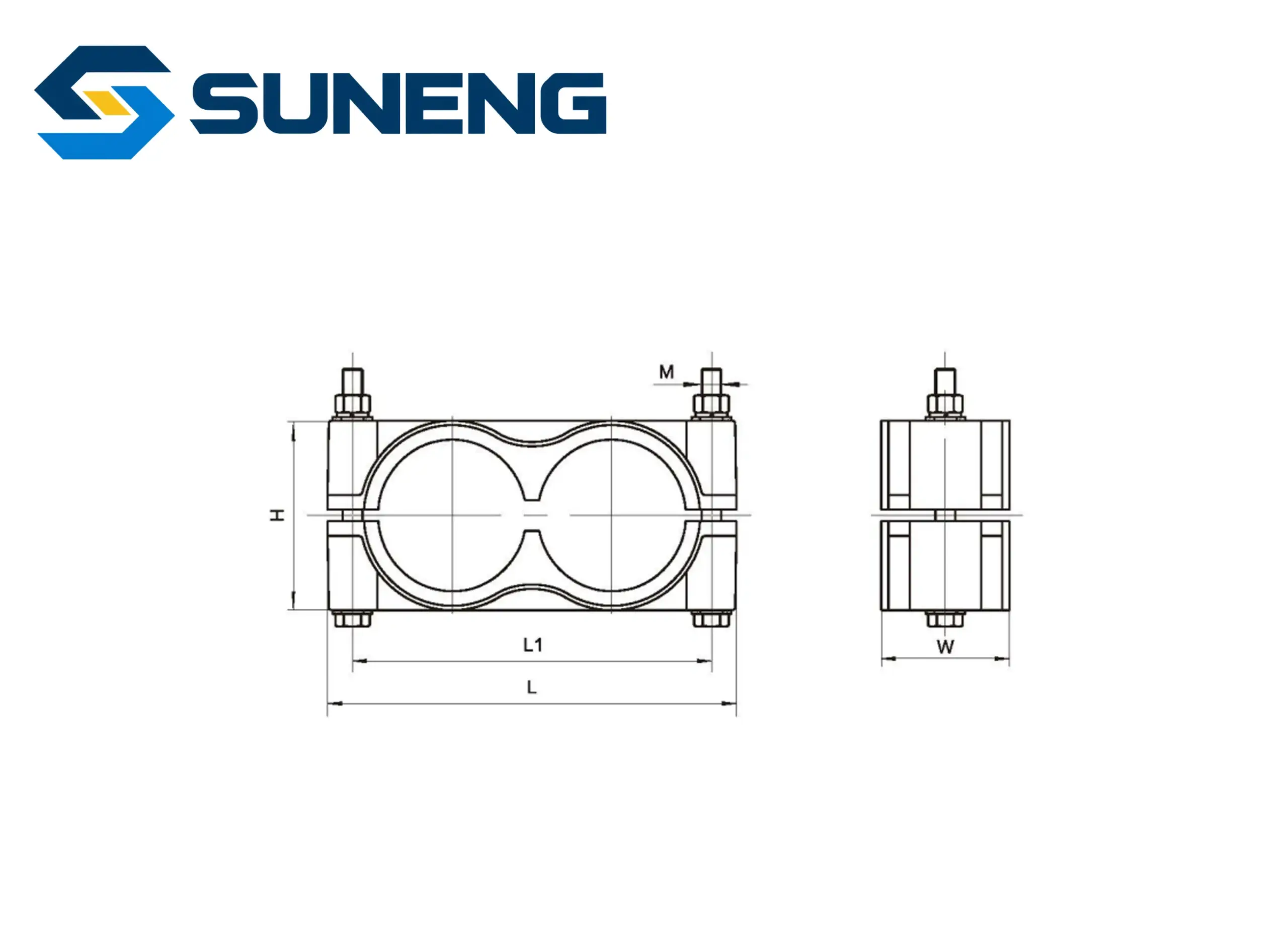

Product Structure

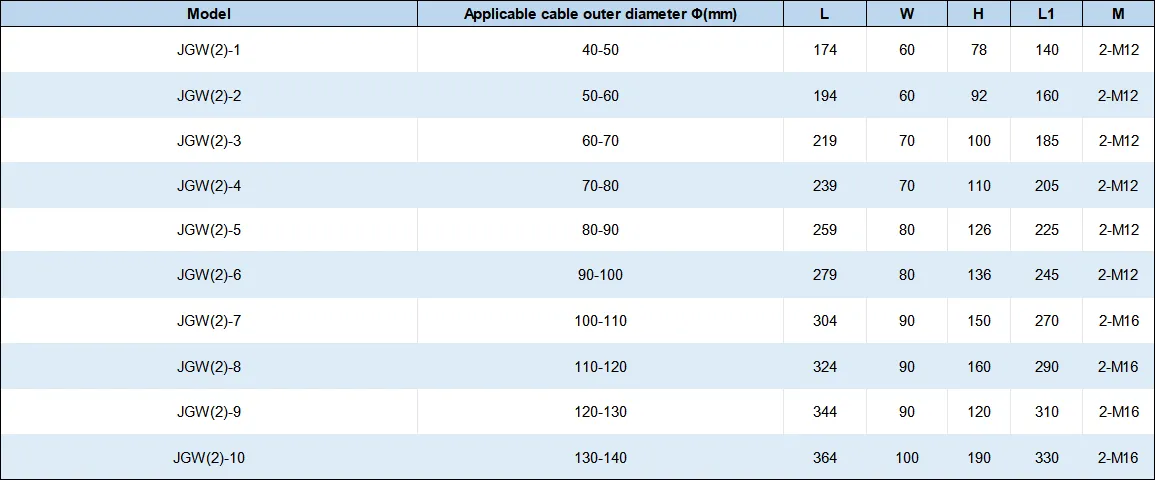

Performance & Dimensions
Applications
• Clustered anti-vibration fixation of two high voltage cables
• Substation cable rack intensive wiring layout
• Cable bridge and cable trench laying construction
• Heavy-duty power transmission anti-vibration projects
