Jgh Cast Aluminum High Voltage Cable Fixing Clamp for 30-200mm Power Wire and Oil Pipelines
Product Overview
JGH Series Cable Fixing Clamp is forged aluminum cable holder for fixing large-diameter power cables, with shock absorption rubber lining and over 30 years service life for high voltage cable projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 30-200 mm
Bolt Specification: 2-M12 / 2-M16

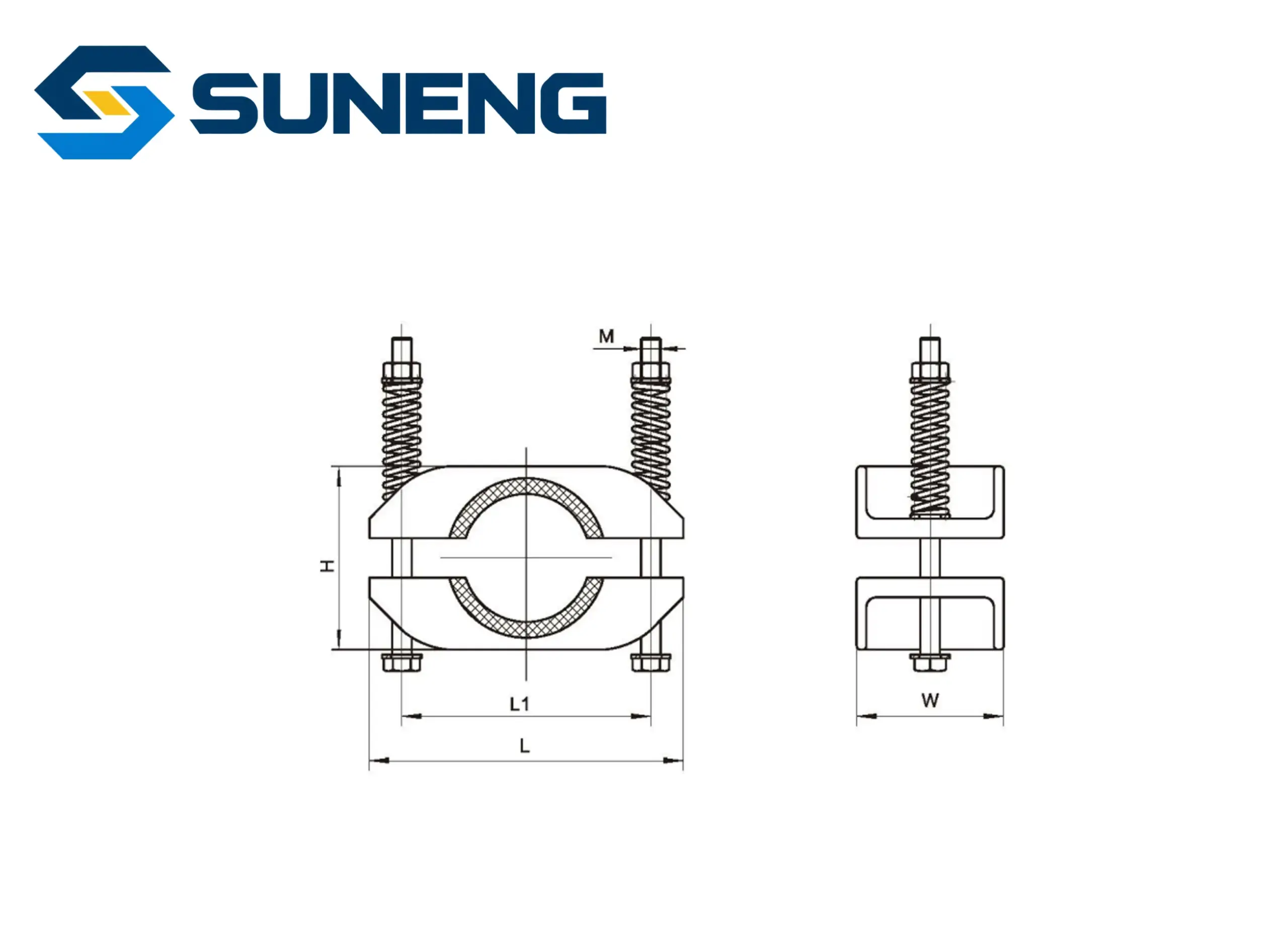

Dimension Range: L=160-300mm, W=50-90mm, H=100-256mm, L1=50-270mm
Material: Forged aluminum alloy + rubber inner liner
Connection Method: Bolt clamping connection
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: High voltage power cable lines
Hole Type: Double bolt mounting holes
Operating Temperature: -40℃ – +105℃
Installation Method: Bolt fastening
Applicable Cable Outer Diameter: 30-200 mm
Bolt Specification: 2-M12 / 2-M16
Dimension Range: L=160-300mm, W=50-90mm, H=100-256mm, L1=50-270mm
Product Features
- Built-in rubber pad for anti-vibration and cable protection
- Double bolt locking for stable cable fixation
- High strength aluminum body, anti-deformation
- Full size range matches various large cables

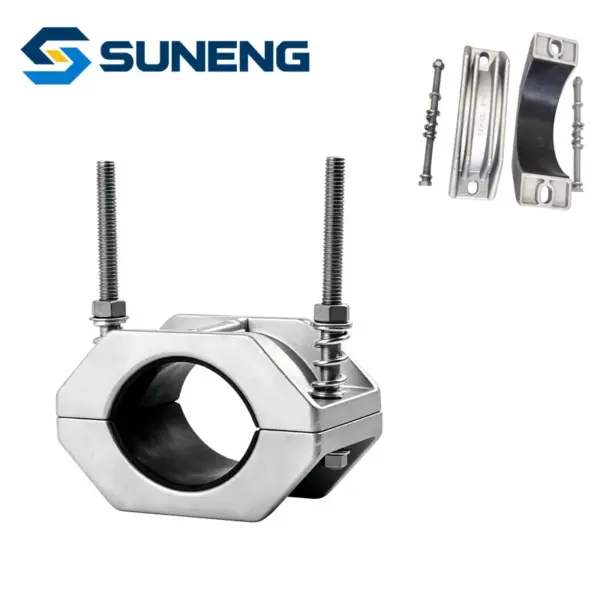

Product Structure

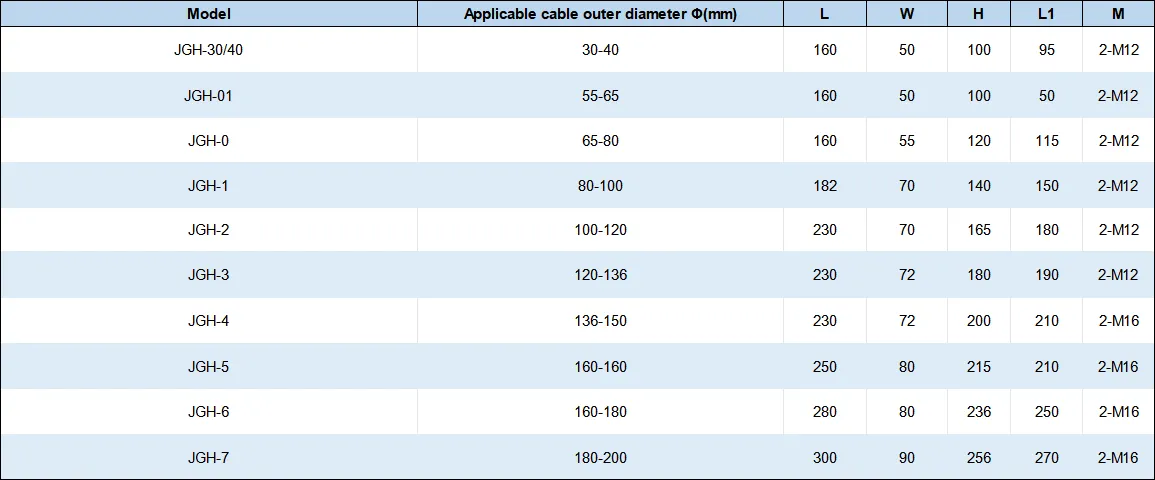

Performance & Dimensions
Applications
• High voltage power cable fixed support
• Substation cable laying fixing
• Underground cable bridge installation
• Industrial heavy-duty cable wiring projects
