Cable Cleats & Clamps

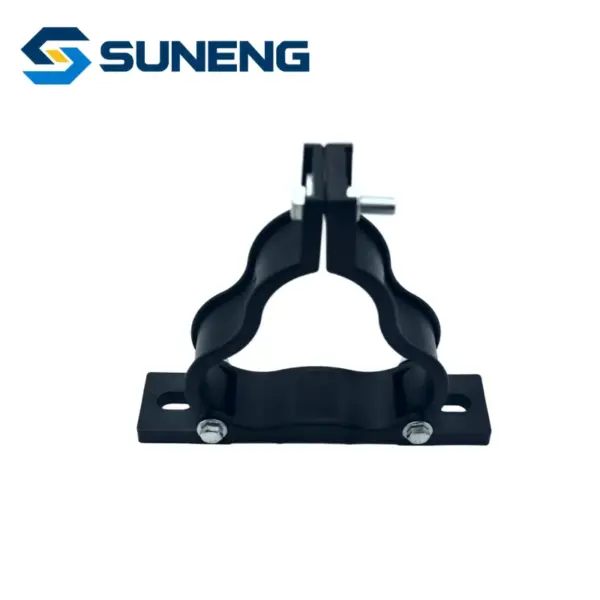

Three-Core Trefoil Cable Cleat and Cable Fixing Clamp for Medium-Voltage Power Cables and Oil Pipelines
Product Overview
The three-core cable cleat is designed to hold three single-core power cables in a trefoil arrangement. Its insulated reinforced structure provides secure cable positioning and helps control movement caused by short-circuit forces, vibration and thermal expansion.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Maintains three cables in a stable trefoil formation
- Suitable for cable outer diameters selected by TC-32, TC-38, TC-42 and TC-50 models
- Reinforced PA66-GF material provides insulation and impact resistance
- Stainless-steel bolts and nuts offer reliable fastening
- Adjustable base supports flexible installation positioning
- Helps reduce cable movement and mechanical stress
Technical Specifications
| Item | Parameter |
|---|---|
| Full Product Name | Three-core Trefoil Cable Fixing Clamp (Trefoil Cable Cleat) |
| Alias | Three-core cable hoop, anti-magnetic cable cleat, trefoil cable clamp |
| English Name for Foreign Trade | Trefoil Cable Clamp |
| Series Model | TC-32 / TC-38 / TC-42 / TC-50 (select model according to cable outer diameter) |
| Main Material | Glass fiber reinforced flame-retardant modified nylon (PA66-GF), non-magnetic insulation |
| Fasteners | Stainless steel bolts, nuts, flat washers |
| Installation Method | Base slotted hole bolt fixed type, adjustable installation position of base |
| Applicable Cable Layout | Fix three cables arranged in trefoil (triangular) shape |

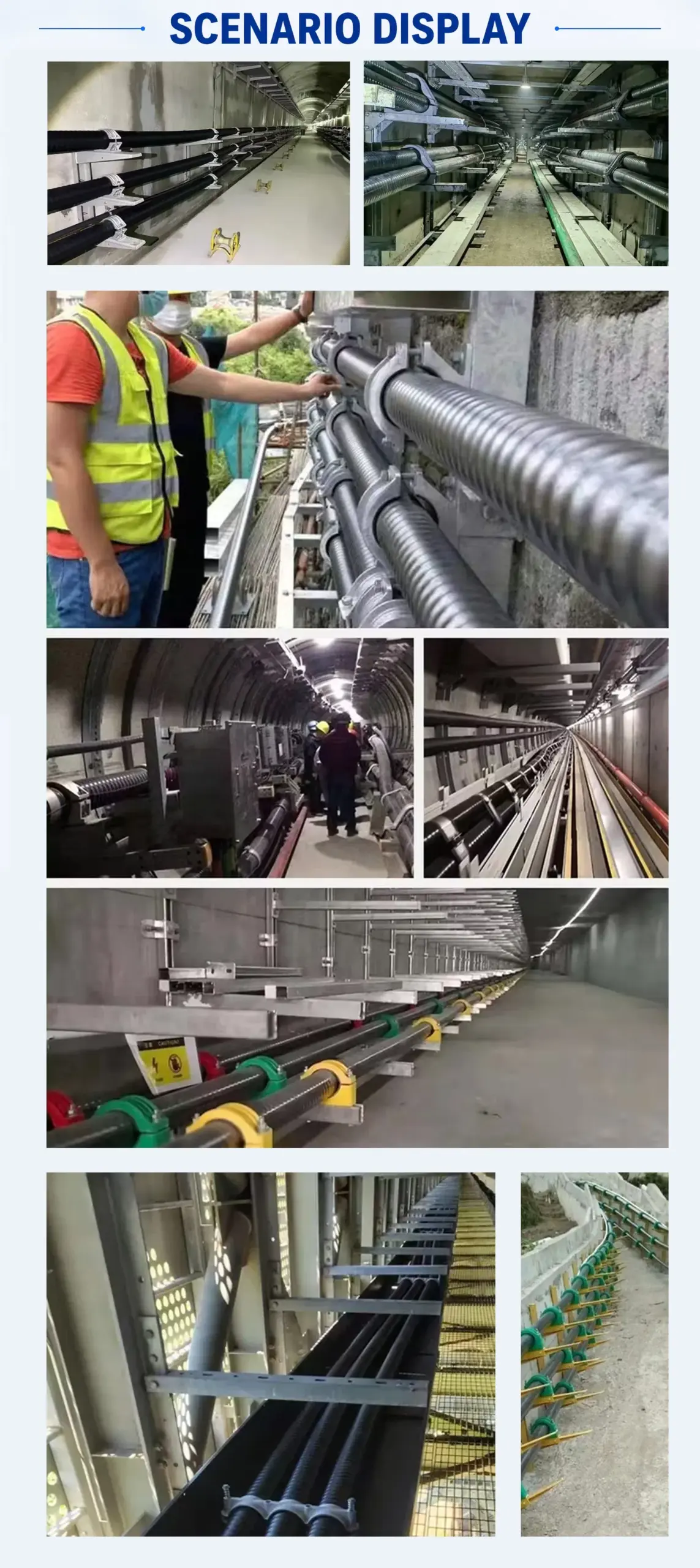

Applications
Medium-voltage switchgear
Cable trenches and tunnels
Compact and box-type substations
Transformer cable compartments
Industrial and utility power distribution systems
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Jgw (3) Cast Aluminum High Voltage Cable Fixing Clamp for 40-140 mm Power Wire and Oil Pipelines and Oil Pipelines
Jgw Aluminum Alloy High Voltage Cable Fixing Clamp Single Hole for 75-165 mm Power Wire and Oil Pipelines
3-Core Spring-Type Cable Cleat and Cable Fixing Clamp for 10kV/11kV Medium-Voltage Cables and Oil Pipelines
Jgpd-H Cast Aluminum High Voltage Cable Fixing Clamp for 45-130mm Power Wire and Oil Pipelines
Jgwd Cast Aluminum High Voltage Cable Fixing ClampSingle Hole Electrical Connector for 55-180 mm Power Wire and Oil Pipelines

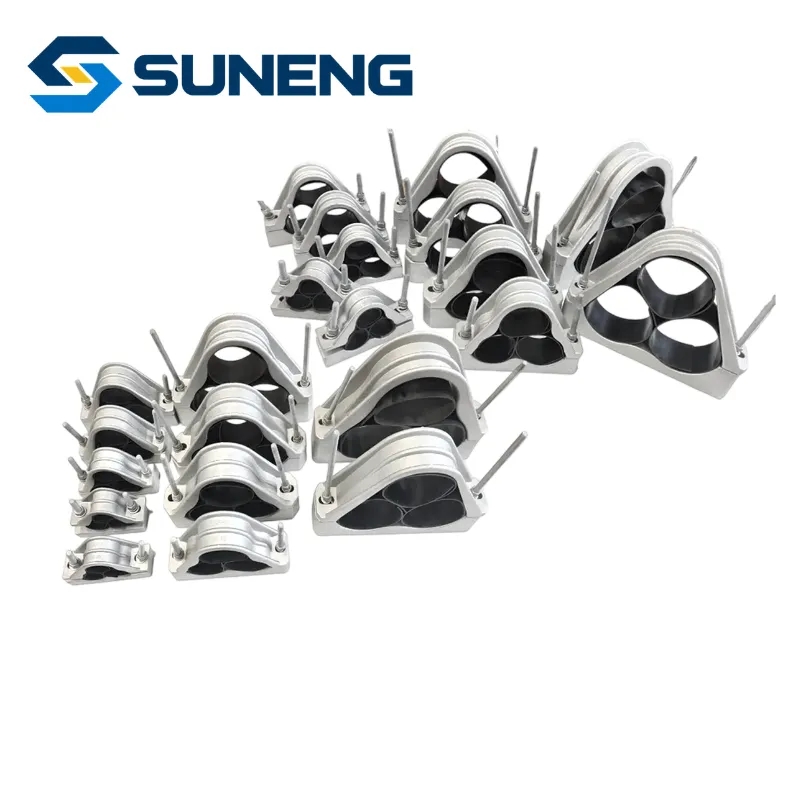

JPG Cast Aluminum High Voltage Cable Fixing Clamp Accessories 3-Core Electrical Connector for 45-180mm Power Wire and Oil Pipelines
