R-Type Cable Clamp and Metal Cable Saddle Clamp for Wire, Pipe and Conduit Fixing
Product Overview

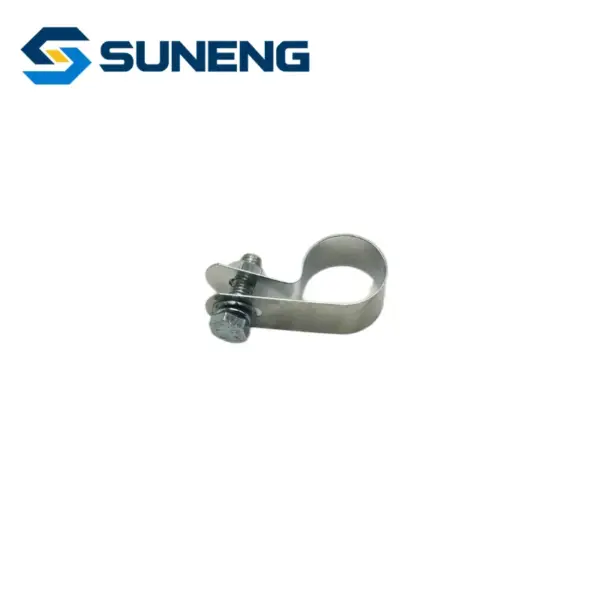

The R-type cable clamp is a practical metal fastening accessory for securing round cables, pipes and conduits to walls, panels or support structures. It is available in various sizes for cable diameters from 4 to 30mm.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for cable and pipe diameters from 4 to 30mm
- Strong metal construction provides reliable cable support
- Saddle-shaped design holds cables firmly in position
- Multiple mounting hole sizes for flexible installation
- Simple screw fixing saves installation time
- Helps prevent cable movement, sagging and mechanical damage

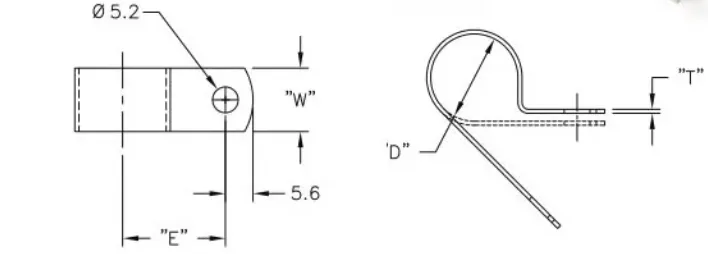

Product Structure
Technical Specifications
| Model | Applicable Inner Diameter (mm) | Band Width (mm) | Band Thickness (mm) | Mounting Hole Spacing (mm) | Mounting Hole Diameter | Reference Weight (g) |
|---|---|---|---|---|---|---|
| R4 | Φ4 | 8 | 0.8 | 12 | M4 | 3 |
| R5 | Φ5 | 8 | 0.8 | 12 | M4 | 3.5 |
| R6 | Φ6 | 8 | 0.8 | 14 | M4 | 4 |
| R8 | Φ8 | 10 | 0.8 | 16 | M5 | 5 |
| R10 | Φ10 | 10 | 0.8 | 18 | M5 | 6 |
| R12 | Φ12 | 12 | 1 | 20 | M5 | 8 |
| R14 | Φ14 | 12 | 1 | 22 | M5 | 9 |
| R16 | Φ16 | 12 | 1 | 24 | M6 | 11 |
| R18 | Φ18 | 15 | 1 | 26 | M6 | 13 |
| R20 | Φ20 | 15 | 1 | 28 | M6 | 15 |
| R25 | Φ25 | 15 | 1.2 | 32 | M6 | 20 |
| R30 | Φ30 | 15 | 1.2 | 36 | M6 | 25 |
Applications
Electrical cable installation
Control cabinet and panel wiring
Wall and ceiling cable fixing
Conduit and pipe support
Industrial machinery wiring
Building and infrastructure projects
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
