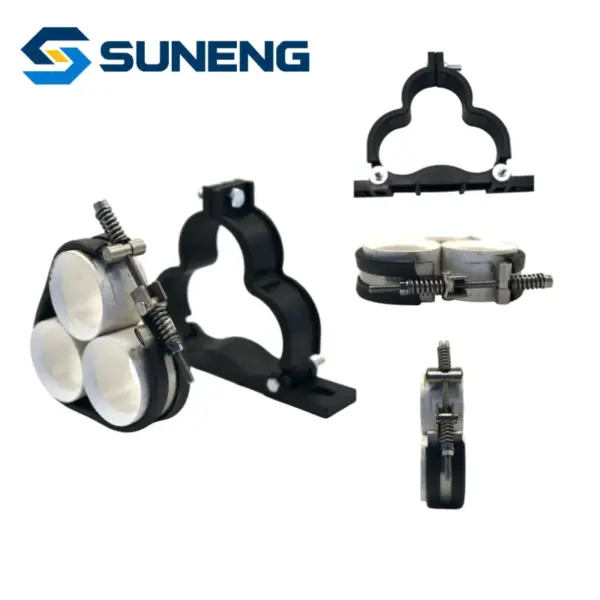

Cl Cast Aluminum High Voltage Cable Fixing Clamp for 35-85 mm Power Wire and Oil Pipelines
Product Overview
CL Series Three-Hole Damping Cable Clamp is glass fiber reinforced nylon triple cable fixing holder with spring buffer liner, for grouped anti-vibration fixation of three high voltage cables, service life over 30 years for substation wiring.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Reinforced nylon body + rubber buffer liner + stainless steel spring & bolts
Manufacturing Process: Injection molding
Corrosion Resistance: Anti-aging, insulating & corrosion resistant
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes
Operating Temperature: -40-+105℃
Installation Method: Bolt fastening
Applicable Single Cable Outer Diameter: 35-85 mm
Fixing Bolt Spec: M10×90 / M10×100 / M12×110 / M12×120 / M12×130

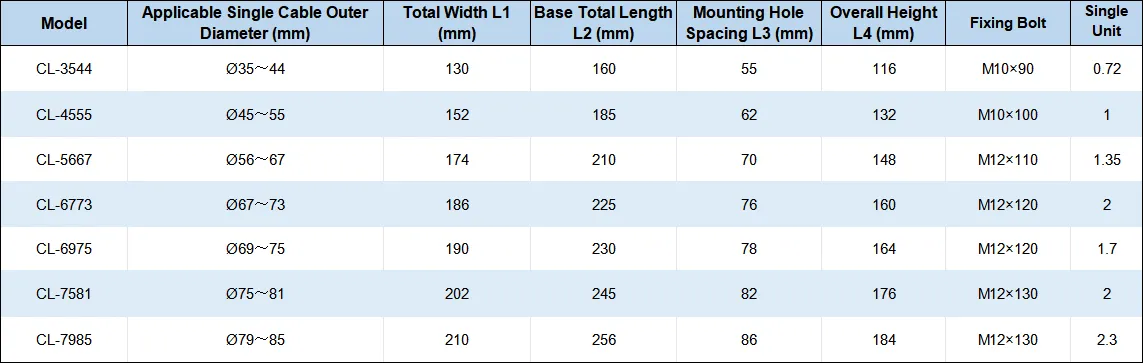

Dimension Range: L1=130-210mm, L2=160-256mm, L3=55-86mm, L4=116-184mm
Material: Reinforced nylon body + rubber buffer liner + stainless steel spring & bolts
Manufacturing Process: Injection molding
Corrosion Resistance: Anti-aging, insulating & corrosion resistant
Applicable Voltage: High voltage power cable lines
Hole Type: Triple cable clamping holes
Operating Temperature: -40-+105℃
Installation Method: Bolt fastening
Applicable Single Cable Outer Diameter: 35-85 mm
Fixing Bolt Spec: M10×90 / M10×100 / M12×110 / M12×120 / M12×130
Dimension Range: L1=130-210mm, L2=160-256mm, L3=55-86mm, L4=116-184mm
Product Features
- 3-hole integrated design fixes three cables together
- Spring & rubber liner absorbs vibration effectively
- Insulated nylon shell avoids short circuit risk
- Full size range covers common cable outer diameters
- Stable double base mounting prevents shifting
Product Structure
Applications
• Grouped anti-vibration fixing of three high voltage cables
• Indoor substation cable rack layout
• Cable bridge intensive wiring installation
• Power transmission anti-vibration cable projects
