DTLC Bi-Metallic Copper Aluminum Pin Cable Lug for 10–70mm² Electrical Cables
Product Overview

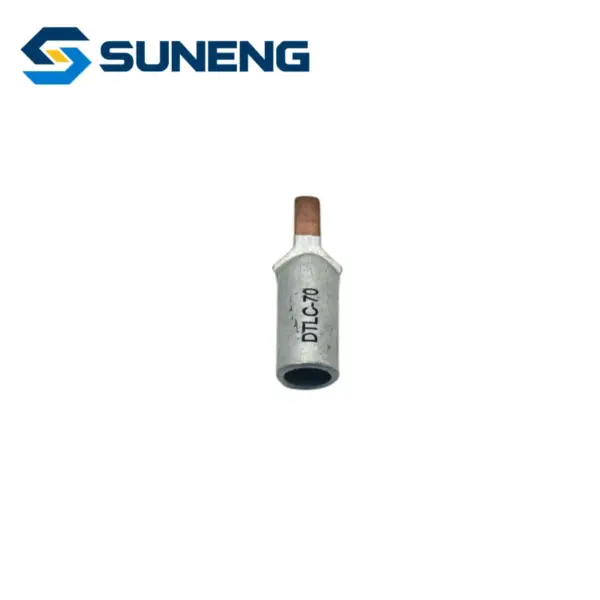

The DTLC bi-metallic pin cable lug is designed for connecting aluminum conductors to copper terminals and electrical equipment. It combines an aluminum cable barrel with a copper pin, providing a reliable transition connection for low-voltage power systems.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Suitable for aluminum cable sizes from 10 to 70mm²
- Copper-aluminum transition design reduces galvanic corrosion
- High electrical conductivity and stable current transfer
- Pin-type terminal fits narrow terminal blocks and equipment connections
- Crimped connection provides strong mechanical performance
- Available in multiple models for different cable sizes

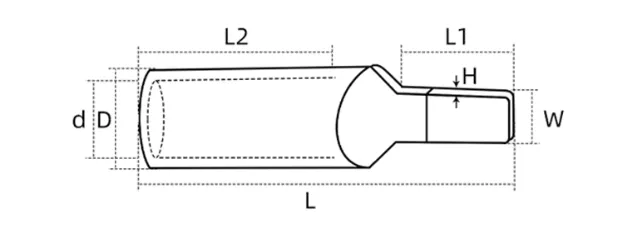

Product Structure
Technical Specifications
| Model | Applicable Aluminum Cable Cross-section mm² | Total Length L (mm) | Sleeve Outer Diameter D (mm) | Sleeve Inner Diameter d (mm) | Pin Width W (mm) | Pin Thickness S (mm) | Reference Current-carrying Capacity (A) |
|---|---|---|---|---|---|---|---|
| DTLC-10 | 10 | 47 | 9 | 5.5 | 6.8 | 4.5 | 75 |
| DTLC-16 | 16 | 47 | 10 | 6.5 | 6.8 | 4.8 | 100 |
| DTLC-25 | 25 | 48 | 11 | 7.5 | 6.8 | 4.8 | 130 |
| DTLC-35 | 35 | 49 | 12 | 8.5 | 6.8 | 5 | 170 |
| DTLC-50 | 50 | 50 | 14 | 9.8 | 6.8 | 5 | 210 |
| DTLC-70 | 70 | 54 | 16 | 11.8 | 7.2 | 5.2 | 260 |
Applications
– Distribution panels and switchgear
– Circuit breakers and terminal blocks
– Transformer and electrical equipment connections
– Aluminum conductor termination
– Power cable installation and maintenance
– Industrial and building electrical systems
