Xjg 35-240mm2 ADSS Suspension Wire Clamp for ABC Cable 20kv Overhead Electrical Power Fittings with IEC Standard
Product Overview

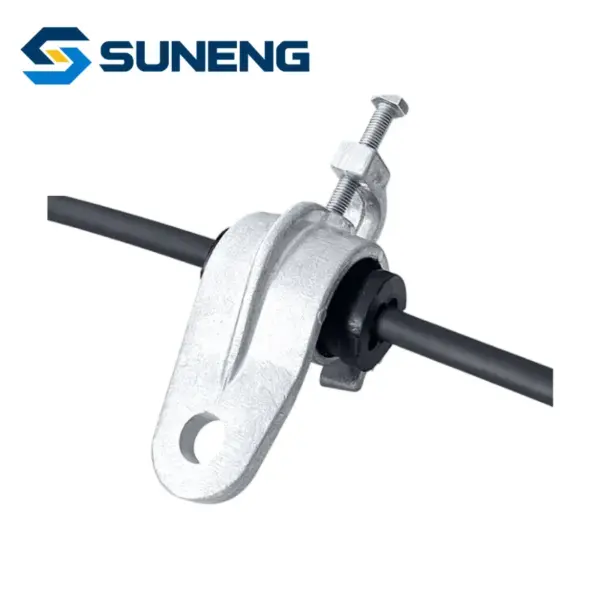

XJG suspension clamp is designed for suspending insulated conductors on overhead power line systems up to 20kV. Available in hook type, hinge type and export type, the clamp supports conductor ranges from 35mm² to 240mm². With hot-dip galvanized surface treatment for corrosion resistance and tool-free installation for quick construction, it is suitable for straight line poles and line deviation angles up to 25 degrees.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
• Series: XJG Series
• Conductor Range: 35-240mm²
• Types: Hook Type / Hinge Type / Export Type
• Rated Voltage: 20kV
• Material: Steel / Aluminum Alloy
• Surface: Hot-Dip Galvanized
• Application: Overhead Insulated Conductor Suspension
• Series: XJG Series
• Conductor Range: 35-240mm²
• Types: Hook Type / Hinge Type / Export Type
• Rated Voltage: 20kV
• Material: Steel / Aluminum Alloy
• Surface: Hot-Dip Galvanized
• Application: Overhead Insulated Conductor Suspension
Product Features
- Multiple Types Available – Hook type, hinge type and export type for flexible installation.
- Wide Conductor Range – Covers 35mm² to 240mm² for diverse application needs.
- Corrosion Resistant – Hot-dip galvanized surface for long outdoor service life.
- Easy Installation – Tool-free installation for quick and efficient construction.
- Reliable Performance – Suitable for straight poles and line deviation angles up to 25 degrees.
Technical Specifications
| Model | Applicable Insulated Conductor Cross-Section(mm²) | Conductor Outer Diameter(mm) | Rated Voltage Level | Vertical Breaking Load(kN) | Unit Weight(kg/pc) |
|---|---|---|---|---|---|
| XJG-1A | 16-50 | 10.5-16.5 | 10kV | ≥3.0 | 0.18 |
| XJG-1B | 50-95 | 16.5-22.0 | 10kV/20kV | ≥3.5 | 0.22 |
| XJG-2A | 95-150 | 22.0-26.0 | 10kV/20kV | ≥4.0 | 0.26 |
| XJG-2B | 150-240 | 26.0-31.0 | 10kV/20kV | ≥4.5 | 0.3 |
Applications
• Suspending insulated aluminum conductors on 20kV and below overhead power line systems.
• Straight line poles and line deviation angles up to 25 degrees.
• Urban and rural overhead distribution networks.
• Power transmission and distribution line projects.
