ABC Anchor Clamps
JDG Insulated Dead End Clamp and ABC Cable Tension Clamp for Overhead Distribution Lines
Product Overview
The JDG insulated conductor tensioner is designed to anchor and mechanically tension insulated overhead conductors and aerial bundled cables. Its insulated, weather-resistant body provides safe and reliable cable fixation for low-voltage distribution networks and service connections.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Secure tensioning and anchoring of insulated conductors
- Insulated body improves electrical safety
- No conductor stripping required
- UV-resistant and weather-resistant housing
- Fast installation with low maintenance requirements
Technical Specifications
| Model | Applicable Insulated Conductor Cross-section mm² | Rated Working Tension (kN) | Minimum Breaking Load (kN) | Suspension Ring Bore Diameter mm | Body Weight (kg) | Phase Sequence Housing Color |
|---|---|---|---|---|---|---|
| JDG-10-120 | 10-120 | 12 | ≥24 | 14 | 0.32 | Red/Yellow/Green/Black |
| JDG-50-150 | 50-150 | 15 | ≥30 | 14 | 0.38 | Red/Yellow/Green/Black |
| JDG-150-300 | 150-300 | 20 | ≥40 | 16 | 0.48 | Red/Yellow/Green/Black |
Applications
Aerial bundled cable networks
Low-voltage overhead distribution lines
Residential and commercial service connections
Pole-mounted cable installations
Street lighting and utility connections
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products

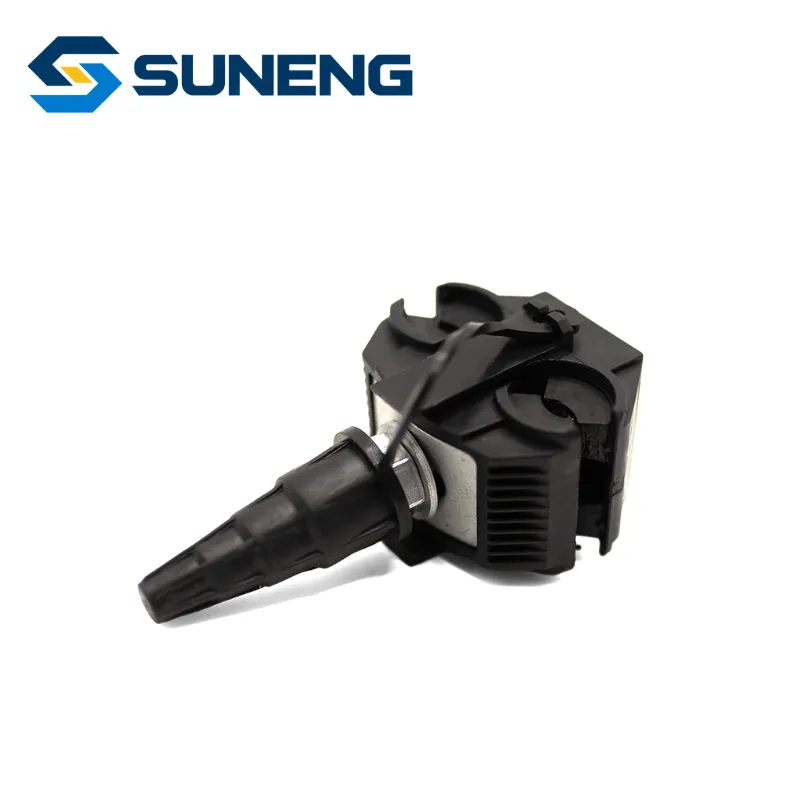

Jjc-5 Heavy Duty Insulation Piercing Connector Cable Clamp Hardware

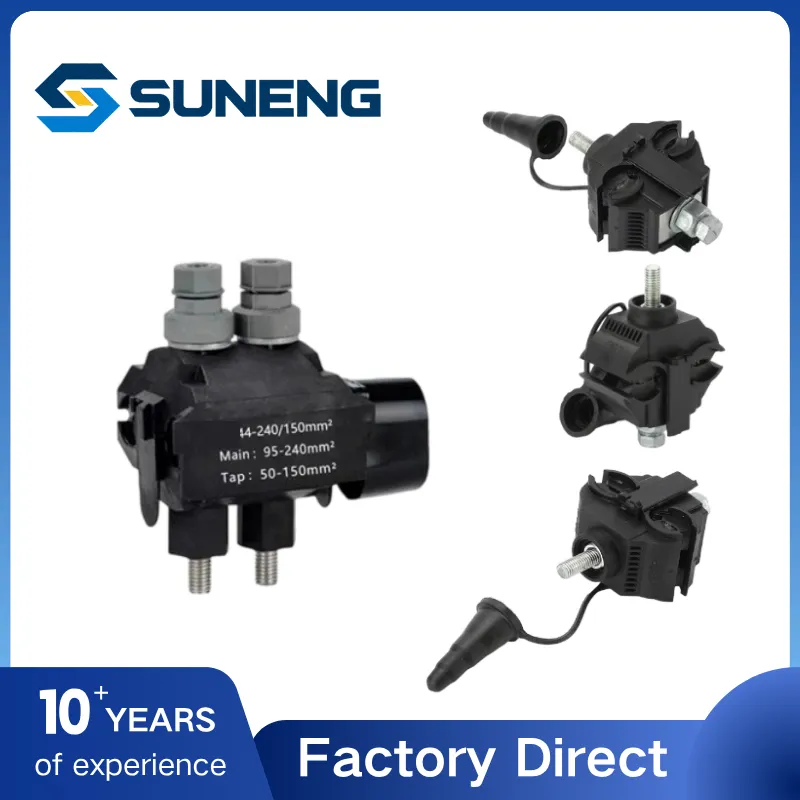

Jbc10 PA66 Insulated Piercing Cable Clamp Fittings 2 Bolts 10-240 mm² Insulation Electrical Ipc Connector for 10kv
Jbc PA66 Insulated Piercing Cable Clamp Fittings 1/2 Bolt 1.5-240 mm² LV Connector for 1kv

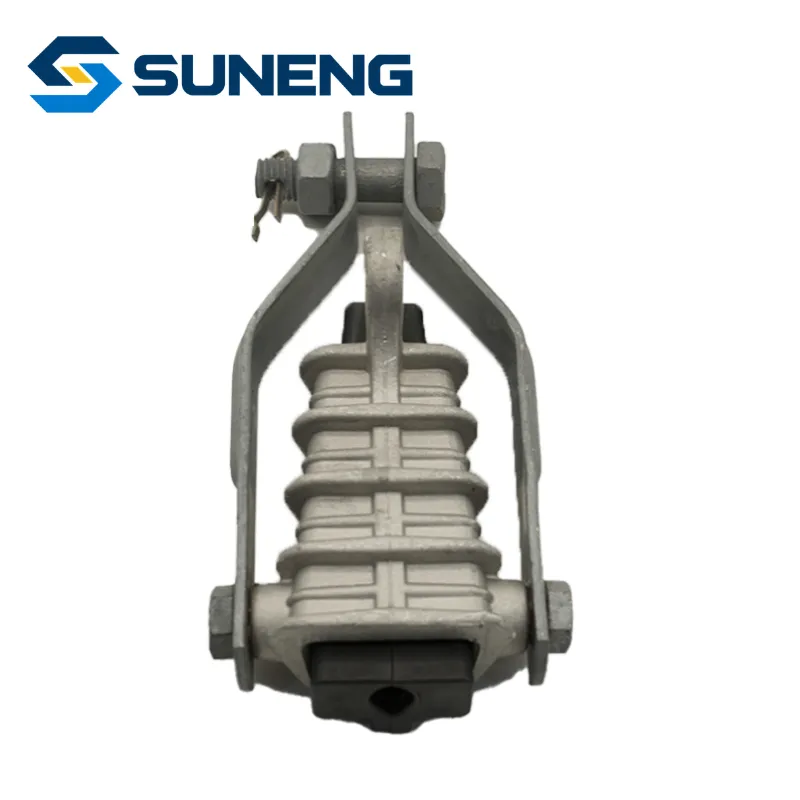

Anchor Clamp Strain Clamp Nxjg Series Wedge Insulated Tension Clamp for 10kv Overhead Line

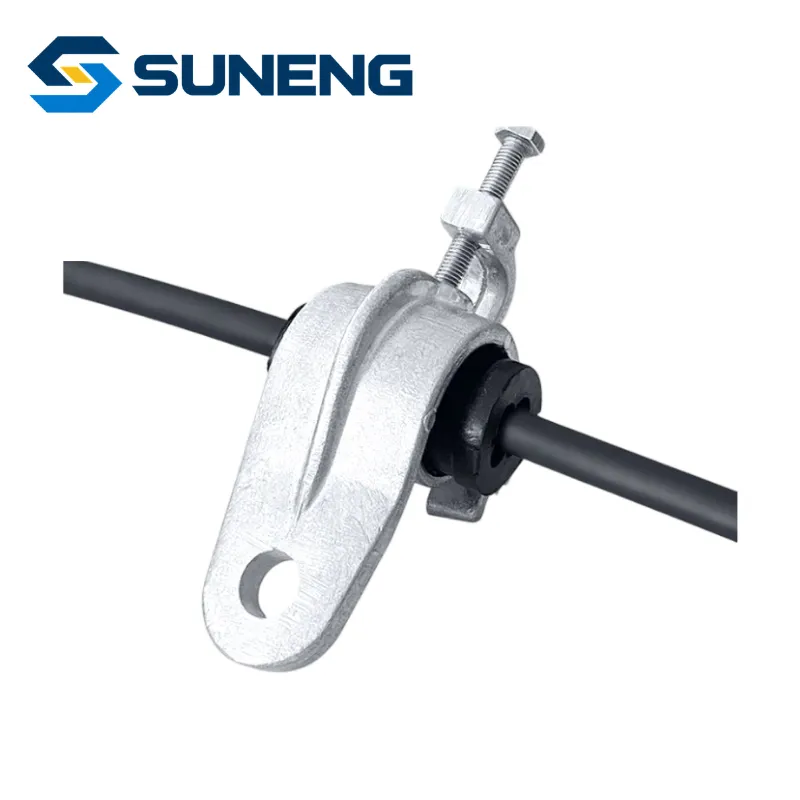

Xjg 35-240mm2 ADSS Suspension Wire Clamp for ABC Cable 20kv Overhead Electrical Power Fittings with IEC Standard
Ttd431fj Heavy Duty Insulation Piercing Connector Cable Clamp Hardware

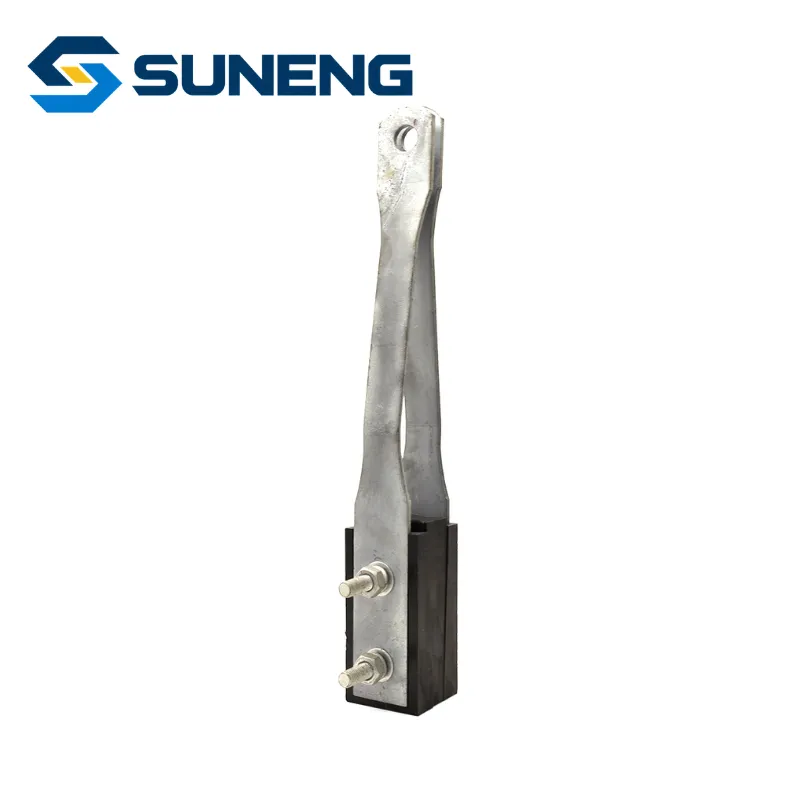

Overhead Line Tension Clamp, Nes Series Electrical Power Fitting for ABC Cable with ISO Certification
