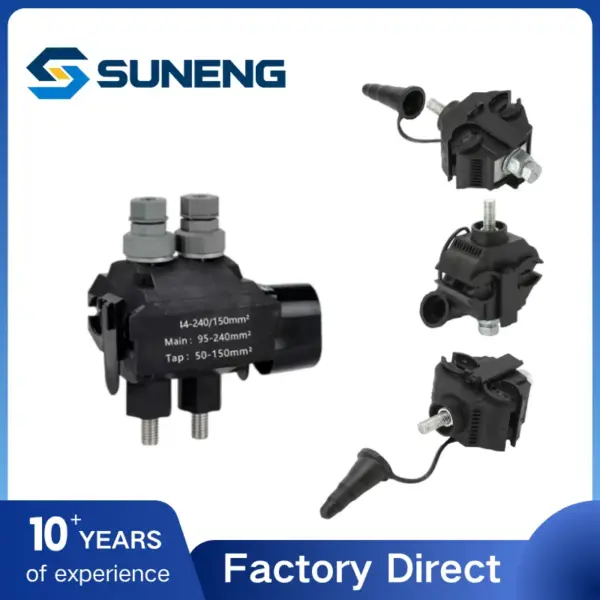

Jbc10 PA66 Insulated Piercing Cable Clamp Fittings 2 Bolts 10-240 mm² Insulation Electrical Ipc Connector for 10kv
Product Overview
JBC-10KV Series Insulation Piercing Connector is a high voltage piercing cable clamp for 10kV overhead insulated wires, enabling branch tapping without stripping insulation, stable conductive performance, service life over 30 years for overhead power distribution networks.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Glass fiber reinforced nylon shell + stainless steel piercing spines + galvanized bolts + sealed rubber mat
Connection Method: Insulation piercing clamping
Surface Treatment: Matte injection molding shell, galvanized anti-rust metal parts
Applicable Voltage: 10kV overhead power lines
Operating Temperature: -40-+105℃
Installation Method: Double bolt tightening, no cable stripping
Main Conductor Range: 10-240 mm²
Branch Conductor Range: 10-240 mm²
Bolt Count: 2 bolts
Torque Value: 30 N·m
Dimension Range: H=95mm, B=73-89mm, L=115mm
Material: Glass fiber reinforced nylon shell + stainless steel piercing spines + galvanized bolts + sealed rubber mat
Connection Method: Insulation piercing clamping
Surface Treatment: Matte injection molding shell, galvanized anti-rust metal parts
Applicable Voltage: 10kV overhead power lines
Operating Temperature: -40-+105℃
Installation Method: Double bolt tightening, no cable stripping
Main Conductor Range: 10-240 mm²
Branch Conductor Range: 10-240 mm²
Bolt Count: 2 bolts
Torque Value: 30 N·m
Dimension Range: H=95mm, B=73-89mm, L=115mm
Product Features
- No cable stripping, quick on-site installation
- Sealed rubber mat for waterproof insulation
- Double bolt structure for firm clamping
- Complete specs fit mainstream 10kV overhead cables
- Standard torque ensures reliable piercing contact
Product Structure
Performance & Dimensions
Applications
• T-type branch tapping of 10kV overhead insulated cables
• Rural high voltage overhead power distribution lines
• Urban overhead cable branch wiring projects
• Outdoor pole-mounted high voltage tapping connection
