Jbc PA66 Insulated Piercing Cable Clamp Fittings 1/2 Bolt 1.5-240 mm² LV Connector for 1kv
Product Overview
JBC-1KV Series Insulation Piercing Connector is 1kV low voltage piercing cable clamp for overhead insulated wires, enabling branch tapping without stripping insulation, stable conductivity, service life over 30 years for power distribution lines.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Material: Glass fiber reinforced nylon shell + stainless steel piercing spines + galvanized bolts + rubber sealing mat
Service Life: Over 30 Years
Connection Method: Insulation piercing clamping
Applicable Voltage: 1kV overhead power lines
Operating Temperature: -40-+105℃
Installation Method: Bolt tightening, no cable stripping
Main Conductor Range: 1.5-240 mm²
Branch Conductor Range: 1.5-240 mm²
Bolt Count: 1 bolt / 2 bolts
Torque Value: 13-25 N·m
Dimension Range: H=45-77mm, B=27-67mm, L=60-95mm
Material: Glass fiber reinforced nylon shell + stainless steel piercing spines + galvanized bolts + rubber sealing mat
Service Life: Over 30 Years
Connection Method: Insulation piercing clamping
Applicable Voltage: 1kV overhead power lines
Operating Temperature: -40-+105℃
Installation Method: Bolt tightening, no cable stripping
Main Conductor Range: 1.5-240 mm²
Branch Conductor Range: 1.5-240 mm²
Bolt Count: 1 bolt / 2 bolts
Torque Value: 13-25 N·m
Dimension Range: H=45-77mm, B=27-67mm, L=60-95mm
Product Features
- No cable stripping, fast field installation
- Sealed rubber mat for waterproof insulation
- Single/double bolt types for diverse load demands
- Full size range covers all common low voltage cables
- Fixed torque design for stable piercing contact

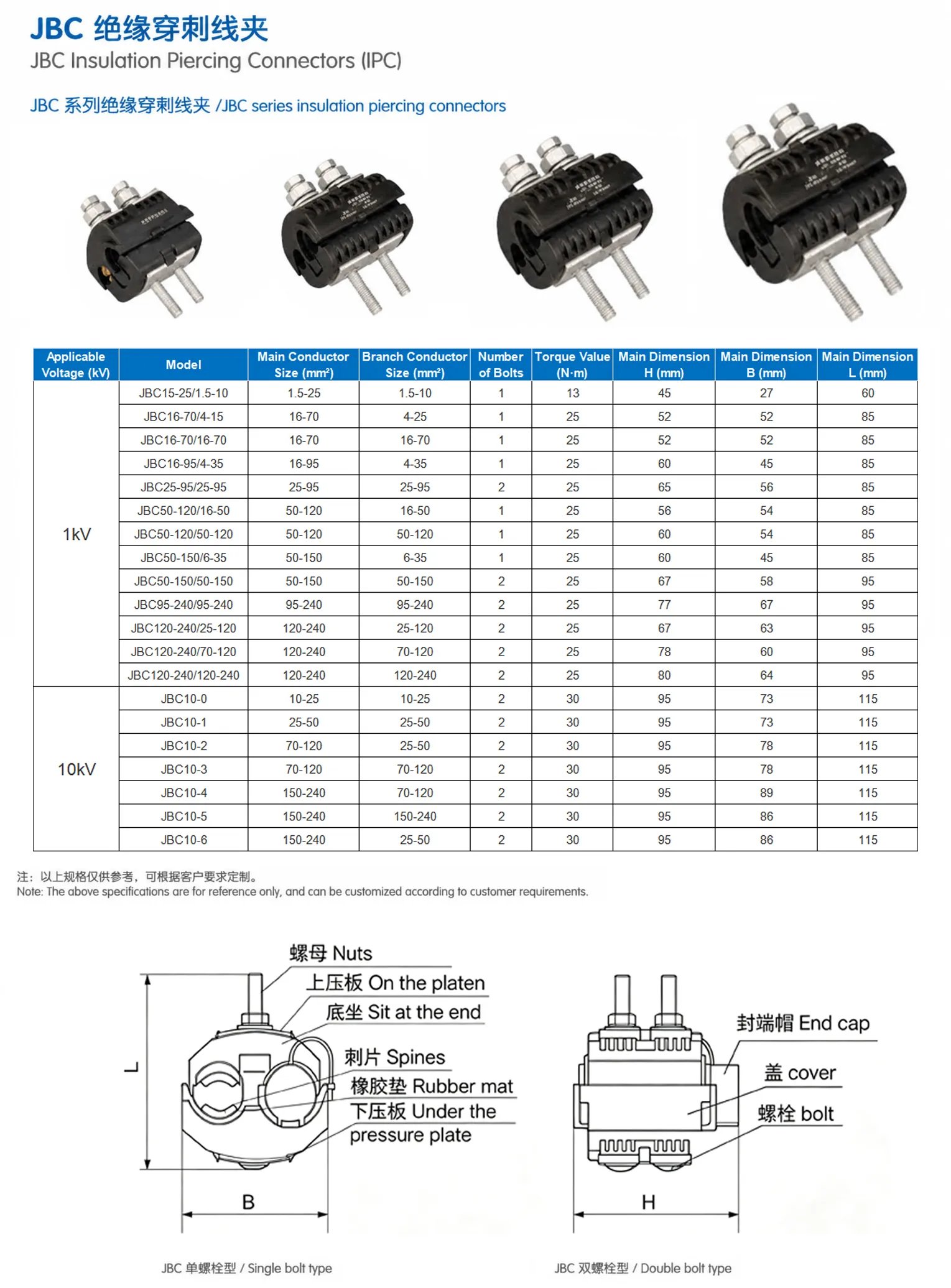

Product Structure
Performance & Dimensions
Applications
• T-branch tapping of 1kV overhead insulated cables
• Rural residential power incoming wiring
• Street light low voltage distribution circuits
• Outdoor overhead cable branch connection projects
