ABC Cable Accessories
E895 1.5kN ADSS Suspension Wire Clamp for ABC Cable 4-9mm² Overhead Electrical Power Fittings with IEC Standard
Product Overview
E895 suspension clamp is a specialized supporting clamp designed for No.8 fiber cables and figure-8 self-supporting cables. Constructed from high-quality aluminum alloy, galvanized steel, and UV-resistant polymeric materials, it ensures durability and reliable performance in various outdoor environments. The clamp features a 2-bolt configuration for secure fastening and requires no special tools for installation. Ideal for short span applications less than 100 meters, it is widely used in street lighting circuits, ground electric networks, and building installations.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
• Series: E895 Series
• Cable Type: No.8 Fiber / Figure-8 Cable
• Cross-Section: 4-9mm²
• Bolt Quantity: 2
• Material: Aluminum Alloy + Galvanized Steel + UV-Resistant Polymer
• Span Capacity: <100m
• Application: Street Lighting / Ground Network / Building Installation
• Series: E895 Series
• Cable Type: No.8 Fiber / Figure-8 Cable
• Cross-Section: 4-9mm²
• Bolt Quantity: 2
• Material: Aluminum Alloy + Galvanized Steel + UV-Resistant Polymer
• Span Capacity: <100m
• Application: Street Lighting / Ground Network / Building Installation
Product Features
- Specialized Design – Engineered for No.8 fiber cables and figure-8 self-supporting cables.
- Durable Construction – Aluminum alloy, galvanized steel and UV-resistant polymer materials.
- Easy Installation – 2-bolt configuration with no special tools required.
- Short Span Application – Ideal for spans less than 100 meters.
- Weather Resistant – UV-resistant materials for long-term outdoor performance.
Technical Specifications
| Model | Applicable Cable OD(mm) | Rated Working Tension(kN) | Suitable Span(m) | Application Scenario |
|---|---|---|---|---|
| E895 (Standard) | 4-9 | 0.3-0.5 | ≤70 | Figure-8/FTTH self-supporting cables, residential drop lines, street lighting circuits |
| E895-1 | 4-5 | 0.3 | ≤50 | Small-diameter cables, short-span applications |
| E895-2 | 5-9 | 0.5 | ≤70 | General-purpose model, mainstream FTTH network fit |
Applications
• Street lighting circuits requiring fiber cable suspension.
• Ground electric networks for stable cable positioning.
• Building installations with spans less than 100 meters.
• Short distance fiber cable suspension in urban and suburban environments.
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Jne Series Insulated Tension Clamp, Anchor Clamp for ADSS Fiber Optic Cable with IEC Standard
Xgu-1 40kN/70kN ADSS Suspension Wire Clamp for ABC Cable 35kv Overhead Electrical Power Fittings with IEC Standard
Jns Series ABC Cable Tension Clamp, Aerial Bundled Cable Strain Clamp with IEC Standard
Overhead Line Tension Clamp, Nes Series Electrical Power Fitting for ABC Cable with ISO Certification
Nxjl-1 Wedge Type Insulated Tension Clamp ABS Cable Anchor Dead End Clamp
Jbc PA66 Insulated Piercing Cable Clamp Fittings 1/2 Bolt 1.5-240 mm² LV Connector for 1kv

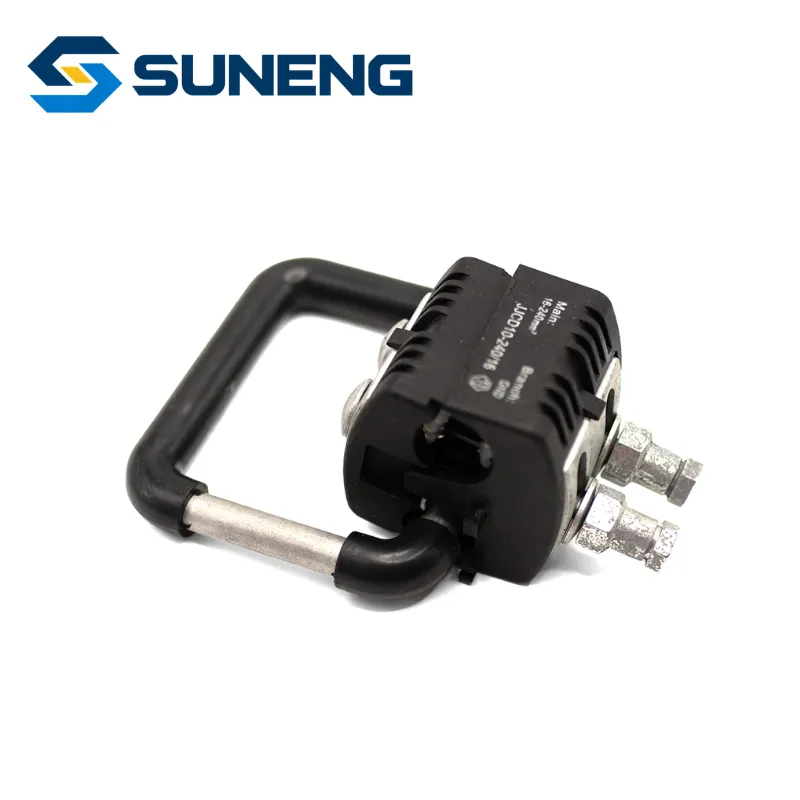

Jjcd10 Insulation Piercing Earthing Connector 25-240 mm² Cable Clamp Insulated Grounding Connector for 10kv Power Line
