ABC Anchor Clamps

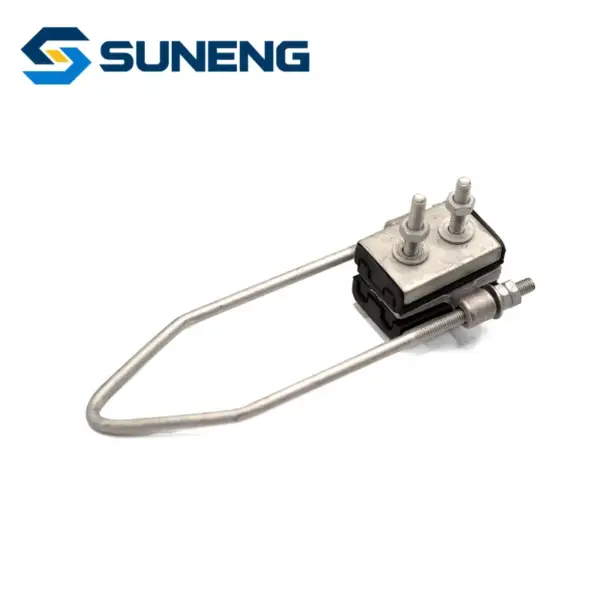

Jns Series ABC Cable Tension Clamp, Aerial Bundled Cable Strain Clamp with IEC Standard
Product Overview
The JNS Series Insulated Tension Clamp is a high-performance dead-end fitting specially designed for overhead low-voltage power distribution systems. It provides secure mechanical anchoring for aerial bundled cables (ABC), ensuring stable line tension and reliable power transmission in various outdoor environments.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Product Features
- 2.1 Premium Material & Durable Construction
- Made of high-strength aluminum alloy with hot-dip galvanized U-bolt and insulated rubber housing, offering excellent corrosion resistance, weatherability, and mechanical stability. The multi-bolt clamping design ensures uniform pressure on the cable, preventing loosening under wind vibration or sustained tension loads.
- 2.2 Easy & Secure Installation
- Requires no special tools for installation, saving on-site labor time and improving construction efficiency. The integrated insulation housing eliminates the need for additional protective sleeves, simplifying assembly and reducing installation costs.
Technical Specifications
| Model | Use Wire Range | a(mm) | b(mm) | h(mm) | L1(mm) | L(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| JNS-0A | 2x10-2x25 / 4x10-4x25 | 180 | 65 | 40 | 70 | 240 | 0.35 |
| JNS-1A | 2x35-2x50 / 4x35-4x50 | 245 | 90 | 50 | 85 | 280 | 0.5 |
| JNS-2A | 4x50-4x120 | 300 | 105 | 72 | 100 | 340 | 0.75 |
Applications
Power Distribution Lines
workshop
