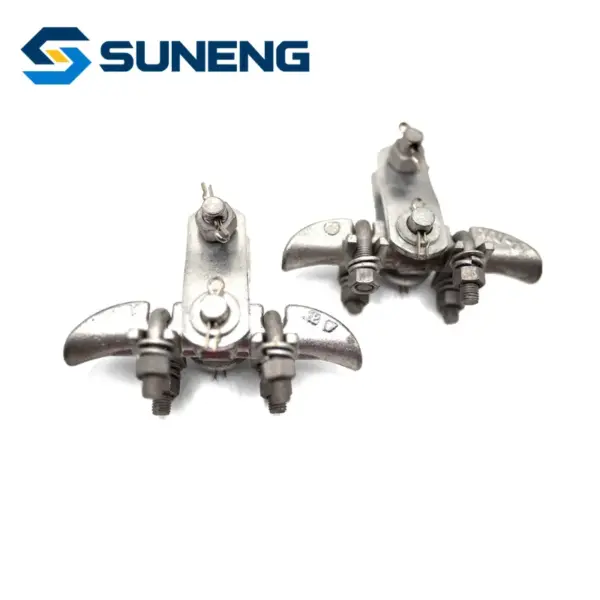

Xgu-1 40kN/70kN ADSS Suspension Wire Clamp for ABC Cable 35kv Overhead Electrical Power Fittings with IEC Standard
Product Overview
XGU Series Suspension Clamps are used for supporting overhead conductors in power transmission and distribution lines. Made of hot-dip galvanized steel, they offer high strength, corrosion resistance, and long service life.
Suitable for ACSR, AAC, ABC, and copper/aluminum conductors (5–45mm), with 40–70kN load capacity. Widely used in utility, substation, and distribution projects.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: XGU-1 to XGU-6B
Suitable Conductor: Aluminum / Copper / ACSR / AAC / ABC Cable
Conductor Diameter Range: 5.0-45.0 mm
Material: Hot-Dip Galvanized Steel
Failure Load: 40 kN / 70 kN
Weight Range: 1.4-6.1 kg
Surface Treatment: Hot-Dip Galvanized
Operating Temperature: -40°C to +105°C
Standards: IEC 61284 / GB / DL/T / ISO / CE
Models: XGU-1 to XGU-6B
Suitable Conductor: Aluminum / Copper / ACSR / AAC / ABC Cable
Conductor Diameter Range: 5.0-45.0 mm
Material: Hot-Dip Galvanized Steel
Failure Load: 40 kN / 70 kN
Weight Range: 1.4-6.1 kg
Surface Treatment: Hot-Dip Galvanized
Operating Temperature: -40°C to +105°C
Standards: IEC 61284 / GB / DL/T / ISO / CE
Product Features
- High mechanical strength for secure conductor support
- Hot-dip galvanized steel for long-term corrosion resistance
- Stable clamping design reduces conductor wear and damage
- Suitable for AAC, AAAC, ACSR, Copper and ABC conductors
- Reliable performance in harsh outdoor environments
- Easy installation with low maintenance requirements
- Wide conductor range for versatile project applications
- Complies with IEC, GB, DL/T, CE and ISO standards
- OEM & ODM customization available
- Long service life for utility and distribution networks
Technical Specifications
| Model | Universal design Model | Applicable wire range with wrap(mm) | H(mm) | L(mm) | R(mm) | Nominal destruction load(kN) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| XGU-1 | XGZ-4009M | 5.0-7.0 | 82 | 180 | 4.0 | 40 | 1.4 |
| XGU-2 | XGZ-4014M | 7.1-13.0 | 82 | 200 | 7.0 | 40 | 1.8 |
| XGU-3 | XGZ-4022M | 13.1-21.0 | 102 | 220 | 11.0 | 40 | 2.0 |
| XGU-4 | - | 21.1-26.0 | 110 | 250 | 13.5 | 40 | 3.0 |
| XGU-5A | - | 23.0-33.0 | 157 | 300 | 17 | 70 | 5.7 |
| XGU-5B | - | 23.0-33.0 | 137 | 300 | 17 | 70 | 5.4 |
| XGU-6A | - | 34.0-45.0 | 163 | 300 | 23 | 70 | 6.1 |
| XGU-6B | - | 34.0-45.0 | 137 | 300 | 23 | 70 | 5.8 |
Applications
• Overhead power transmission lines
• Medium and low voltage distribution networks
• ABC cable suspension systems
• Rural electrification projects
• Utility pole line construction
• Power grid expansion and upgrading projects
• Substation incoming and outgoing line connections
• Industrial power distribution systems
• Coastal and high-corrosion environments
• Renewable energy transmission projects such as solar and wind farms
