Es 6-8kN ADSS Suspension Wire Clamp for 16-95mm2 ABC Cable 1kv Overhead Electrical Power Fittings with IEC Standard
Product Overview

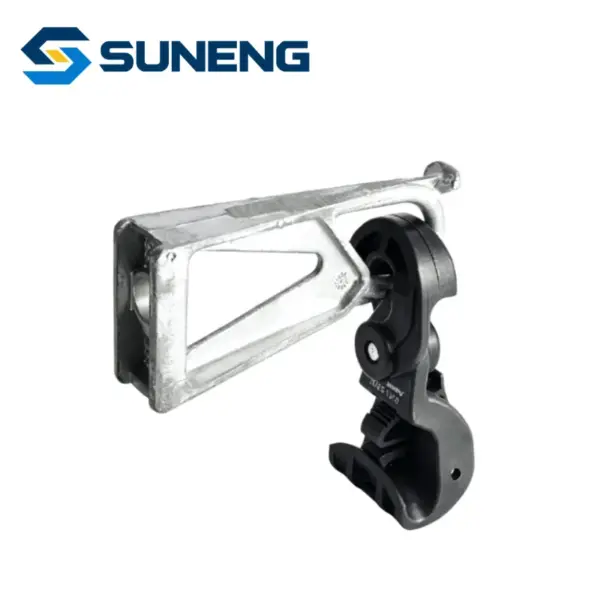

ES suspension clamp is specifically designed for suspending LV-ABC cables and insulated neutral messengers in 1kV overhead distribution systems. Made of weather-resistant aluminum alloy with black UV-protective plastic coating and hot-dip galvanized steel hardware, it provides reliable mechanical support and cable protection. The tool-free adjustable grip device accommodates conductor sizes from 16mm² to 95mm² with MBL up to 8kN. Supports straight line installation and line deviation angles up to 90 degrees. Standard compliant with NFC 33-040 and EN 50483-3.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
• Series: ES Series
• Models: ES54-14 / ES-1500 / ES-1500.1
• Cable Type: Single Core ABC Cable
• Conductor Range: 16-95mm2
• MBL: 6-8kN
• Rated Voltage: 1kV
• Material: Aluminum Alloy + PA66 Fiberglass
• Surface: Plastic Coating + Hot-Dip Galvanized
• Standard: NFC 33-040, EN 50483-3
• Series: ES Series
• Models: ES54-14 / ES-1500 / ES-1500.1
• Cable Type: Single Core ABC Cable
• Conductor Range: 16-95mm2
• MBL: 6-8kN
• Rated Voltage: 1kV
• Material: Aluminum Alloy + PA66 Fiberglass
• Surface: Plastic Coating + Hot-Dip Galvanized
• Standard: NFC 33-040, EN 50483-3
Technical Specifications
| Model | Conductor Cross-section(mm²) | Conductor Diameter(mm) | Breaking Load(kN) | Suspension Angle | Material |
|---|---|---|---|---|---|
| ES-14 | 25-95 | 5-14 | ≥8 | ≤60° | Insulated polymer + aluminum alloy |
| ES54-14 | 16-95 | 5-14 | ≥8 | ≤60° | UV-resistant fiberglass reinforced polymer |
