Insulator Link Fittings

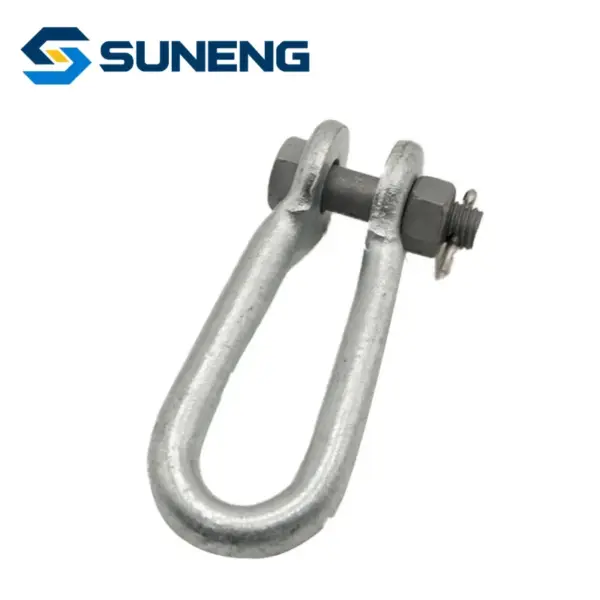

UL-10 Hot DIP Galvanized Parallel Steel Clevis Link Fitting
Product Overview
UL Series U-Shackle Link Fittings are designed for connecting insulators and line hardware in suspension and tension string assemblies. The forged steel body combined with hot-dip galvanizing ensures superior mechanical strength and corrosion resistance. These fittings provide stable and secure operation under demanding outdoor conditions and are widely used in utility power networks worldwide.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: UL-7 to UL-21
Failure Load: 70kN-210kN
Material: Hot-Dip Galvanized Forged Steel
Pin Diameter: 16mm-24mm
Connection Type: Shackle Connection
Application: Transmission & Distribution Networks
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Models: UL-7 to UL-21
Failure Load: 70kN-210kN
Material: Hot-Dip Galvanized Forged Steel
Pin Diameter: 16mm-24mm
Connection Type: Shackle Connection
Application: Transmission & Distribution Networks
Corrosion Protection: Hot-Dip Galvanized
Standards: IEC / GB / DL/T
OEM/ODM Service: Available
Product Features
- Designed specifically for insulator string and line hardware connections
- Essential accessory for porcelain, glass and composite insulators
- Hot-dip galvanized steel provides excellent corrosion resistance
- High mechanical strength ensures secure insulator assembly
- Precision manufactured for accurate fit and reliable performance
- Suitable for transmission and distribution line applications
- Stable operation under harsh outdoor environments

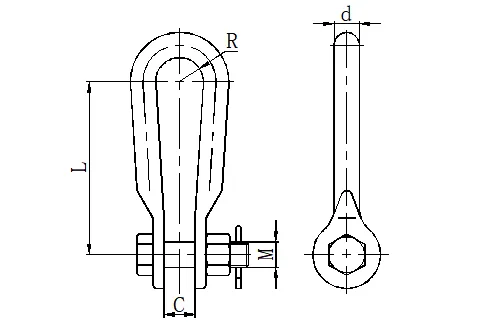

Product Structure
Technical Specifications
| Model | C (mm) | R (mm) | M (mm) | h (mm) | d (mm) | Nominal failure load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| UL-7 | 20 | 15 | 16 | 120 | 16 | 70 | 0.65 |
| UL-10 | 22 | 15 | 18 | 140 | 18 | 100 | 0.92 |
| UL-12 | 24 | 18 | 22 | 140 | 20 | 120 | |
| UL-16 | 26 | 19 | 24 | 140 | 22 | 160 | 1.64 |
| UL-21 | 30 | 22 | 27 | 160 | 24 | 210 | 2.90 |
Applications
• Porcelain Insulator String Assembly
• Glass Insulator String Connections
• Composite Insulator Installations
• Overhead Transmission Lines
• Power Distribution Networks
• Utility Pole Hardware Systems
• Substation Electrical Projects
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
