Overhead Line Hardware
NX Galvanized Steel Galvanized Tension Clamp Dead End Anchor Clamp
Product Overview

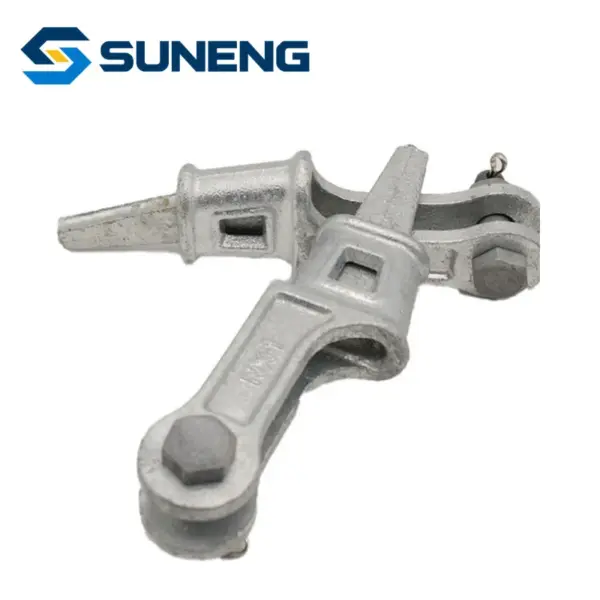

The NX-1 Wedge Type Galvanized Steel Tension Clamp is a high-performance dead-end fitting specially designed for overhead transmission and distribution lines. It provides reliable mechanical anchoring for conductors like ACSR cables, ensuring stable line tension and preventing sag under various environmental conditions.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Product Features
- 2.1 Premium Material & Durable Construction
- Made of high-strength cast steel with hot-dip galvanized finish, offering excellent corrosion resistance and mechanical stability. The wedge self-locking design creates a firm grip on the conductor, preventing slippage under wind vibration or sustained tension loads.
- 2.2 Easy & Secure Installation
- Requires no special tools for installation, saving on-site labor time and improving construction efficiency. The precision-engineered wedge mechanism ensures uniform pressure distribution, minimizing conductor damage risk.

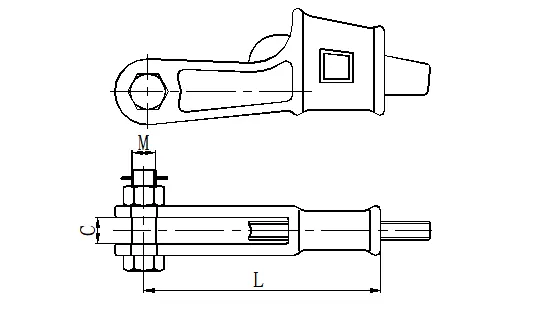

Product Structure
Technical Specifications
| Model | Applicable strand section(mm²) | Outside diameter(mm) | c(mm) | M(mm) | L(mm) | R(mm) | Nominal breaking load(kN) |
|---|---|---|---|---|---|---|---|
| NX-1L | 25-35 | φ6.6-7.8 | 18 | 16 | 150 | 6.0 | 45 |
| NX-2L | 50-70 | φ9.0-11.0 | 20 | 18 | 180 | 7.3 | 88 |
Applications
T&D Power Line
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
