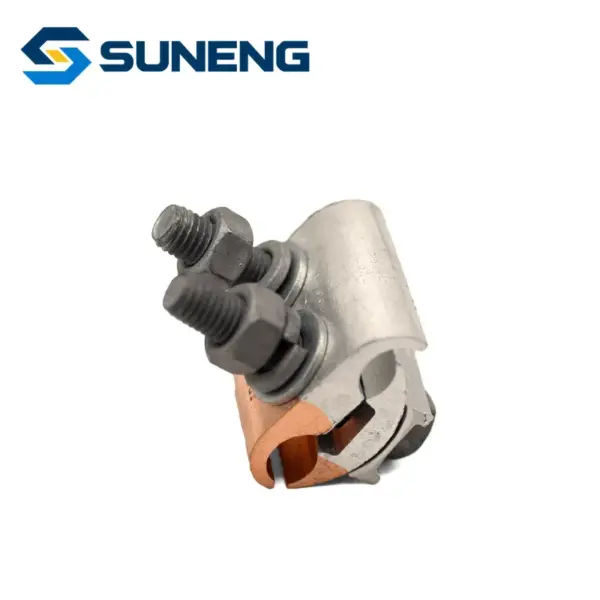

Jbtl-50-240 Aluminum Copper Parallel Groove Cable Clamp
Product Overview
The JBTL-50-240 Copper-Aluminum Parallel Groove Clamp is a professional splicing fitting specially designed for low-voltage overhead power distribution networks. It is widely used in utility and industrial power systems to create secure T-junction connections between copper and aluminum conductors, eliminating the risk of galvanic corrosion between dissimilar metals. The clamp features a unique copper-aluminum composite structure, ensuring low contact resistance and reliable electrical performance while simplifying the connection process.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Suitable for 1kV, 10kV, 20kV overhead distribution lines and substations.
Product Features
- 2.1 Premium Material & Corrosion Resistance
- Made of high-purity copper and aluminum composite material, offering excellent conductivity and resistance to galvanic corrosion. The precision-machined contact surface ensures low contact resistance, minimizing voltage drop and preventing overheating.
- 2.2 Secure Connection & Uniform Clamping
- The bolted design with dual bolts ensures uniform clamping pressure, preventing loosening under wind or vibration loads. The special-shaped groove design ensures a tight fit with conductors, eliminating slippage and ensuring stable electrical contact.
Technical Specifications
| Model | Applicable wire specifications(mm²) |
|---|---|
| JBTL-10-70 | 10-70 |
| JBTL-16-120 | 16-120 |
| JBTL-50-240 | 50-240 |
Applications
Suitable for connecting copper conductors (50-240mm²) and aluminum conductors (50-240mm²), compatible with various overhead distribution line applications.
