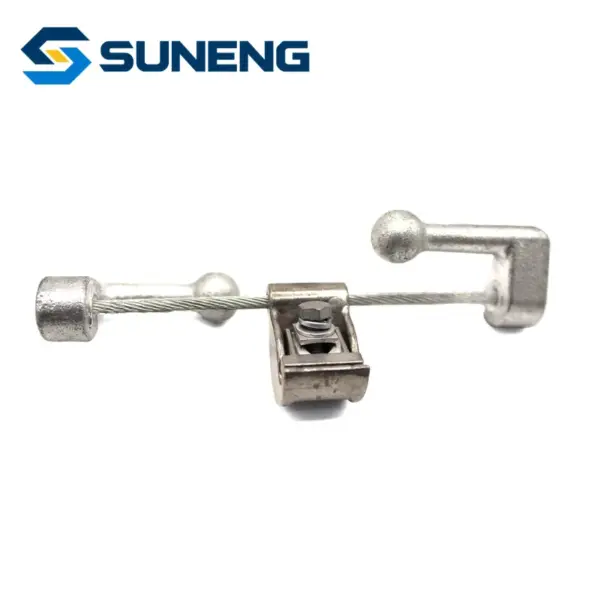

Fdz-1 Hot-DIP Galvanized Stockbridge Vibration Damper for Overhead Power Line with IEC Standard
Product Overview
The FDZ vibration damper is a specialized power line fitting designed to suppress wind-induced vibration of overhead conductors and optical cables (ADSS/OPGW).
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
It prevents fatigue damage, strand breakage and cable failure at suspension points, ensuring safe and stable grid operation.
1. Durable Construction
Hot-dip galvanized ductile iron hammer heads + high-strength steel messenger cable provide excellent corrosion resistance and fatigue performance for long-term outdoor use.
Hot-dip galvanized ductile iron hammer heads + high-strength steel messenger cable provide excellent corrosion resistance and fatigue performance for long-term outdoor use.
2. Efficient Vibration Damping
Classic dual-weight design generates counter-vibration to absorb wind energy, effectively reducing line vibration amplitude and extending service life.
Classic dual-weight design generates counter-vibration to absorb wind energy, effectively reducing line vibration amplitude and extending service life.
Product Features
- Wide Compatibility & Easy Installation
- Fits ACSR/AAC conductors and ADSS/OPGW cables in various sizes. Bolted clamp design enables quick installation with standard tools.
- Compliant with Standards
- Manufactured in accordance with GB/T 2314 and IEC 61284 standards, fully tested for mechanical performance and anti-corrosion before delivery.
Technical Specifications
| Model | Use wire range | a(mm) | b(mm) | h(mm) | L1(mm) | L(mm) | Steel strand specification | Single hammer weight | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| FDZ-1 | 30-50 | 50 | 33 | 51 | 120 | 320 | 19/1.8 | 0.7 | 1.8 |
| FDZ-2 | 70-95 | 50 | 33 | 51 | 130 | 360 | 19/1.8 | 0.9 | 2.3 |
| FDZ-3 | 120-150 | 55 | 42 | 62 | 150 | 450 | 19/2.2 | 1.7 | 4.2 |
| FDZ-4 | 185-240 | 60 | 52 | 64 | 160 | 500 | 19/2.2 | 2.1 | 5.3 |
| FDZ-5 | 300-400 | 60 | 60 | 87 | 180 | 550 | 19/2.6 | 2.8 | 6.5 |
| FDZ-6 | 500-630 | 60 | 60 | 87 | 182 | 550 | 19/2.6 | 3.3 | 7.6 |
Applications
Transmission Power Line
SAMPLE
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Fryj-1g Type Stockbridge Hot-DIP Galvanized Vibration Damper for Overhead Power Line with IEC Standard
JH-3 Series Parallel Groove Clamp H-Type Aluminum Alloy Splicing Fitting for Overhead Line 16-240mm2
PAL Stainless Steel Cable Suspension Strain Tension 25-95mm² 10-18 kN Anchor Clamp for 10kv Overhead Optic Line with IEC
JBB-3 Aluminum Split Bolt Connector Parallel Groove Clamp for Overhead Power Line
Jy Hydraulic Splice Sleeve for ACSR Conductor Overhead Transmission Line 10kv-35kv
Jbtl-50-240 Aluminum Copper Parallel Groove Cable Clamp

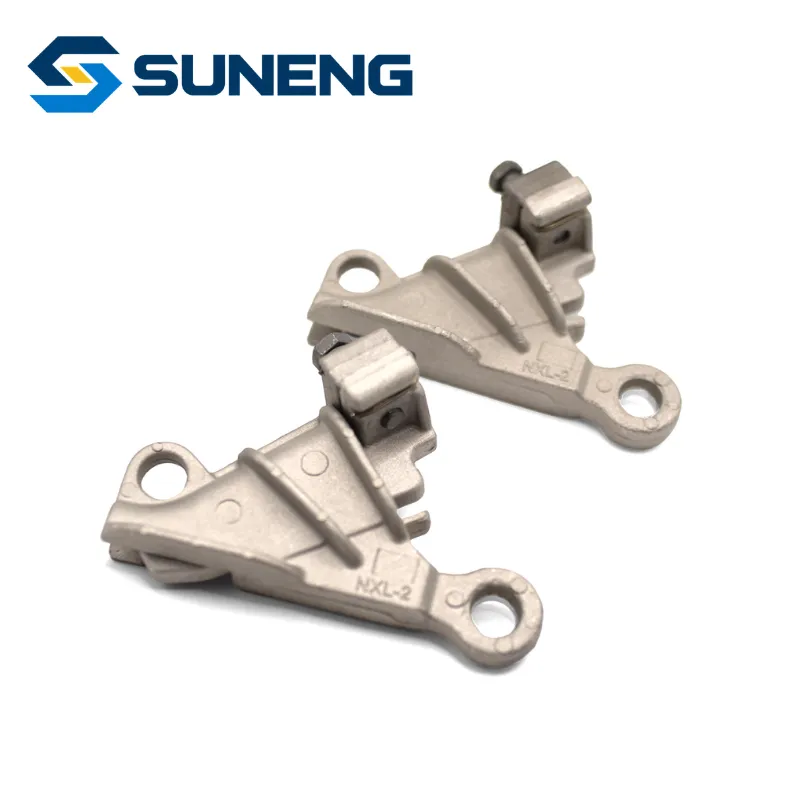

Nxl-2 Aluminum Alloy Wedge Tension Clamp, Electrical Power Fitting for Overhead Power Line with IEC Standard
