Jyt-150-20 Electrical Anchor Clamp for Utility Transmission Hardware with ISO9001 Certified
Product Overview
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details

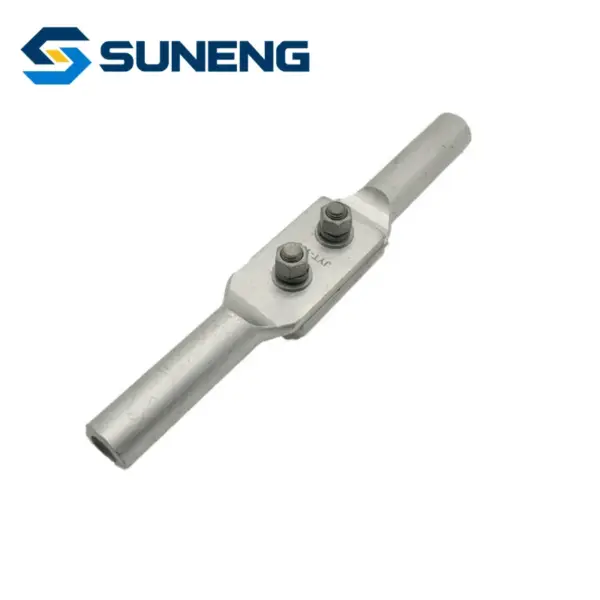

The Bolt Type Aluminum Alloy Splice Tube is a high-performance splicing fitting specially designed for overhead transmission and distribution power systems.
As a critical connecting component, it is widely used to join two sections of aluminum conductors such as ACSR, AAC, and AAAC cables without hydraulic crimping tools.
It is an essential solution for extending conductor lengths, repairing damaged cables, and ensuring the long-term structural integrity and operational safety of overhead power grids.

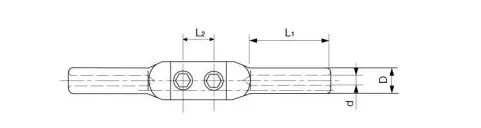

Product Structure
Technical Specifications
| Model | Applicable wire range (mm) | D(mm) | L(mm) | Φ(mm) | weight (kg) |
|---|---|---|---|---|---|
| JYT-35/6 | LGJ-35/6 | 16 | 60 | 9.5 | 0.41 |
| JYT-50/8 | LGJ-50/8 | 18 | 60 | 11.0 | 0.45 |
| JYT-70/10 | LGJ-70/10 | 22 | 70 | 13.0 | 0.54 |
| JYT-95/15 | LGJ-95/15 | 26 | 80 | 15.0 | 0.62 |
| JYT-120/7 | LGJ-120/7 | 26 | 80 | 16.0 | 0.60 |
| JYT-120/20 | LGJ-120/20 | 26 | 80 | 16.6 | 0.58 |
| JYT-120/25 | LGJ-120/25 | 26 | 80 | 17.2 | - |
| JYT-150/20 | LGJ-150/20 | 30 | 90 | 18.0 | 0.84 |
| JYT-150/25 | LGJ-150/25 | 30 | 90 | 18.5 | 0.84 |
| JYT-185/10 | LGJ-185/10 | 32 | 90 | 19.5 | 0.94 |
| JYT-185/25 | LGJ-185/25 | 32 | 90 | 20.5 | 0.90 |
| JYT-185/30 | LGJ-185/30 | 32 | 90 | 20.5 | 0.90 |
| JYT-185/45 | LGJ-185/45 | 32 | 90 | 21.0 | - |
| JYT-240/30 | LGJ-240/30 | 36 | 100 | 23.0 | 1.21 |
| JYT-240/40 | LGJ-240/40 | 36 | 100 | 23.0 | 1.21 |
| JYT-300/15 | LGJ-300/15 | 40 | 110 | 24.5 | 1.74 |
| JYT-300/20 | LGJ-300/20 | 40 | 110 | 25.0 | - |
| JYT-300/25 | LGJ-300/25 | 40 | 110 | 25.5 | 1.74 |
| JYT-300/40 | LGJ-300/40 | 40 | 110 | 25.5 | 1.74 |
| JYT-300/50 | LGJ-300/50 | 40 | 110 | 26.0 | - |
| JYT-300/70 | LGJ-300/70 | 42 | 110 | 27.0 | - |
| JYT-400/20 | LGJ-400/20 | 45 | 120 | 28.5 | - |
| JYT-400/25 | LGJ-400/25 | 45 | 120 | 28.5 | - |
| JYT-400/35 | LGJ-400/35 | 45 | 120 | 28.5 | - |
| JYT-400/50 | LGJ-400/50 | 45 | 120 | 29.5 | - |
| JYT-400/65 | LGJ-400/65 | 48 | 120 | 29.5 | - |
| JYT-400/95 | LGJ-400/95 | 48 | 120 | 31.0 | - |
Applications
Ideal for low to medium voltage applications, including utility and industrial projects.
