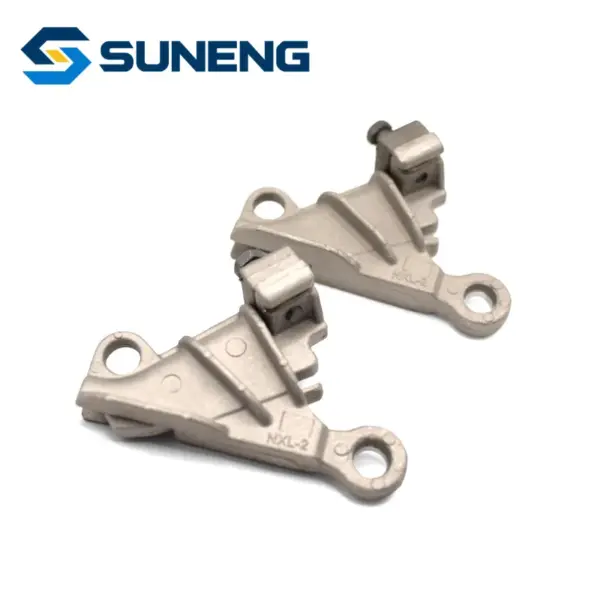

Nxl-2 Aluminum Alloy Wedge Tension Clamp, Electrical Power Fitting for Overhead Power Line with IEC Standard
Product Overview
NXL-2 aluminum alloy strain clamp is designed for 10kV and below overhead distribution lines, to fasten and tension conductors on terminal, corner and strain poles.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Its self-locking wedge structure provides stable, maintenance-free clamping force, ensuring reliable electrical continuity. Made of high-strength, corrosion-resistant aluminum alloy, it works with both bare and insulated aluminum conductors, compliant with DL/T, GB/T and IEC standards.
Product Features
- Lightweight & Corrosion Resistant: Made of high-strength aluminum alloy, offering excellent anti-corrosion performance and long service life.
- Wedge Self-Locking Design: Ensures firm clamping force on conductors without loosening under wind or vibration loads.
- Integrated Insulation Structure: Eliminates the need for additional insulation sleeves, simplifying installation and reducing costs.
- Easy Installation: No special tools required; quick and secure mounting on poles or towers, saving labor time.
Technical Specifications
| Model | Use wire range | a(mm) | b(mm) | h(mm) | L1(mm) | L(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| NXL-1 | 16-50 mm² | 42 | 30 | 65 | 80 | 280 | 0.26 |
| NXL-2 | 50-95 mm² | 45 | 32 | 70 | 90 | 300 | 0.32 |
| NXL-3 | 95-150 mm² | 50 | 36 | 78 | 100 | 320 | 0.4 |
| NXL-4 | 150-240 mm² | 55 | 40 | 85 | 110 | 340 | 0.48 |
Applications
Power Distribution Lines
