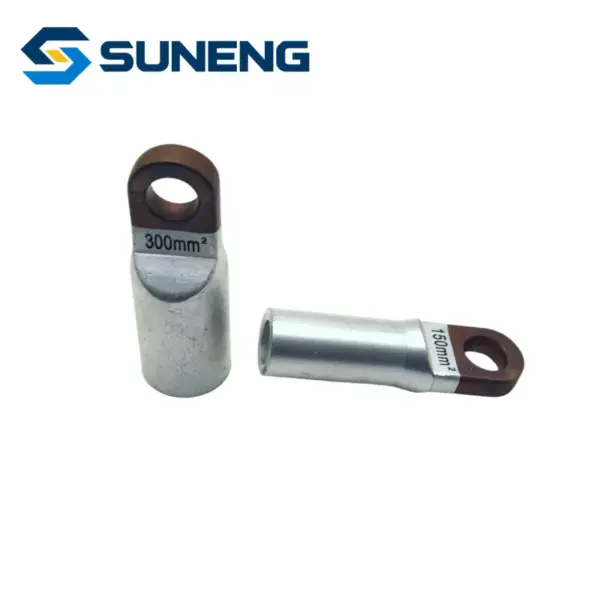

OTDL Single Hole Bimetallic Terminal Cable Lug for Aluminum Cable to Copper Busbar Connections

Product Overview

The OTDL single-hole bimetallic cable lug combines an aluminum barrel with a copper palm for terminating aluminum conductors on copper busbars or terminals. It is designed for reliable current transfer in power distribution systems.

Discuss This Product Request Documents

Share the model, quantity, drawing, destination and project requirement for a focused response.

Product Features

Copper palm and aluminum barrel for transition connections
Suitable for large-section aluminum power cables
Helps reduce electrochemical corrosion
Tin-plated contact surface improves corrosion resistance
Single-hole palm supports simple bolted installation

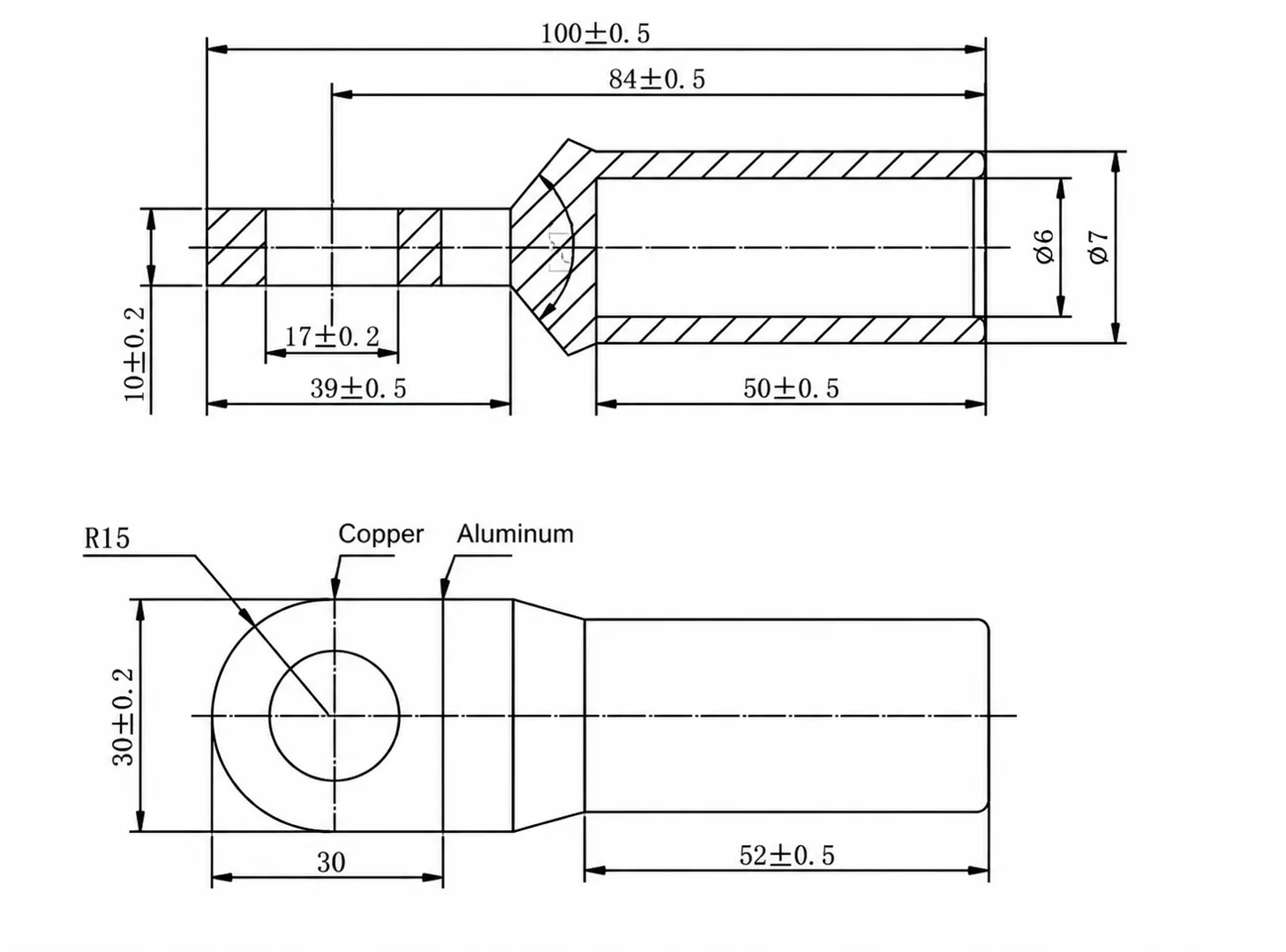

Product Structure

Technical Specifications

No.	Model	Φd	ΦD
1	OTDL-25	7	12
2	OTDL-35	9	14
3	OTDL-50	10	16
4	OTDL-70	12	18
5	OTDL-95	13	21
6	OTDL-120	15	23
7	OTDL-150	16	25
8	OTDL-185	18	28
9	OTDL-240	20	31
10	OTDL-300	23	35
11	OTDL-400	26	38
12	OTDL-500	29	42
13	OTDL-630	34	48

Applications

Transformer and substation terminals
Copper busbar connections
Distribution cabinets
Industrial power systems
Cable installation and maintenance projects
