Overhead Line Hardware
PAM Suspension Strain Tension 16-35 mm² Wire Clip 3-8 kN Anchor Clamp for Overhead Optic Line with IEC
Product Overview

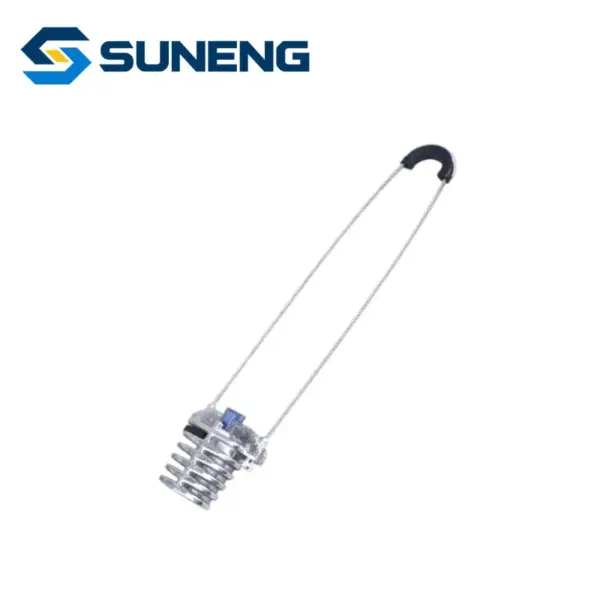

PAM Series Wedge Type Tension Clamp is aluminum alloy tension fitting for small-section overhead insulated cables, with reliable self-locking grip and over 30 years service life for low voltage overhead distribution lines.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details

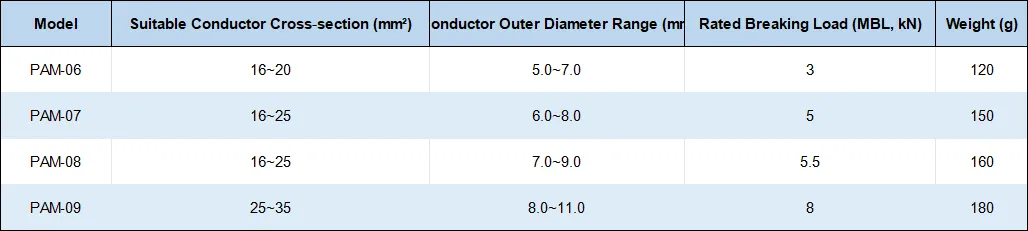

Core Parameters
Interface Type: Wedge Small Insulated Cable Tension Connector
Material: Forged aluminum alloy + rubber wedge
Connection Method: Wedge self-locking clamping
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: Low voltage overhead lines
Hole Type: Hook hanging type
Operating Temperature: -40℃ – +105℃
Installation Method: Manual wedge fastening
Suitable Conductor Cross-section: 16-35 mm²
Conductor Outer Diameter Range: 5.0-11.0 mm
Rated Breaking Load: 3-8 kN
Interface Type: Wedge Small Insulated Cable Tension Connector
Material: Forged aluminum alloy + rubber wedge
Connection Method: Wedge self-locking clamping
Manufacturing Process: Hot forging forming
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: Low voltage overhead lines
Hole Type: Hook hanging type
Operating Temperature: -40℃ – +105℃
Installation Method: Manual wedge fastening
Suitable Conductor Cross-section: 16-35 mm²
Conductor Outer Diameter Range: 5.0-11.0 mm
Rated Breaking Load: 3-8 kN
Product Features
- Mini compact design for small size insulated wires
- Self-locking wedge prevents cable slipping
- Rubber lining protects cable outer insulation
- Light weight, easy on-site installation without tools
Product Structure
Applications
• Terminal tension fixing of small overhead insulated wires
• Rural low voltage overhead distribution lines
• Short-span residential overhead power lines
• Pole-mounted small cable wiring projects
