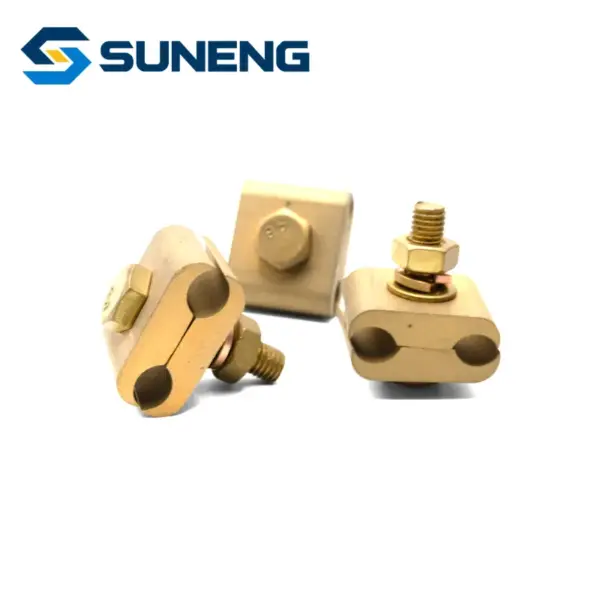

JBT Copper Parallel Groove Cable Clamp for Power Line Earthing with ISO Certified
Product Overview
Made of high-quality brass with excellent electrical conductivity and corrosion resistance.
Designed for copper stranded wire connection (16mm²–240mm²), ensuring low contact resistance and stable current transmission.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- ANTI-CORROSIONBrass material withstrong corrosionresistance, suitablefor outdoor use.
- DURABLE & RELIABLESolid structure withhigh mechanicalstrength, ensuringlong service life.
- EASY INSTALLATIONTwo-bolt design forfirm clamping,convenient andquick to install.
- WIDE TEMPERATURERANGEStable performance inextreme environments,from -40°C to +80°C.
Technical Specifications
| Model | Applicable Copper Stranded Wire(mm²) | Number of Bolts | Total Length (L) | Width (B) | Height (H) | Groove Radius (R) | Bolt Size (M) |
|---|---|---|---|---|---|---|---|
| JBT-0 (2-hole) | 16-25 | 2 | 55 | 35 | 35 | 4 | 10 |
| JBT-1 (2-hole) | 35-50 | 2 | 60 | 40 | 35 | 5 | 10 |
| JBT-2 (2-hole) | 70-95 | 2 | 90 | 50 | 45 | 7 | 12 |
| JBT-3 (2-hole) | 120-150 | 2 | 108 | 63 | 50 | 8.5 | 12 |
| JBT-4 (2-hole) | 185-240 | 2 | 120 | 72 | 55 | 10 | 12 |
Applications
Widely used in overhead power lines,grounding systems, lightning protection,and electrical connections.Multiple sizes available (16mm2-240mm2)to meet different application needs.Strict quality control with reliableperformance and professionalafter-sales support.
