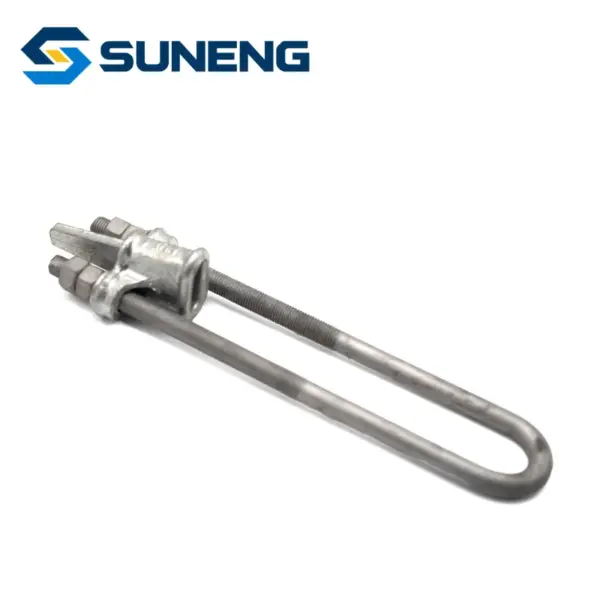

Nut-1 Adjustable Type Ut Cable Wedge Clamp for Overhead Power Line with ISO CE Certified
Product Overview
The NUT Type Galvanized Strain Clamp is a high-performance dead-end fitting specially designed for overhead power distribution systems. It provides adjustable mechanical anchoring for conductors like ACSR cables, ensuring stable line tension and preventing sag under various environmental conditions.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- Premium Material & Durable Construction
- Made of high-strength cast steel with hot-dip galvanized finish, offering excellent corrosion resistance and mechanical stability. The U-bolt and wedge design ensures uniform clamping pressure, preventing loosening under wind vibration or sustained tension loads.
- Easy & Secure Installation
- The adjustable nut design allows for precise tension adjustment during installation, no special tools required, saving on-site labor time. The wedge mechanism creates a self-locking effect, ensuring a firm, non-slip grip on the conductor.
Technical Specifications
| Model | Use wire range | a(mm) | b(mm) | h(mm) | L1(mm) | L(mm) | Steel strand specification | Single hammer weight(kg) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| NUT-1 | GJ-25 | 40 | 30 | 150 | 120 | 320 | 19/1.8 | 0.7 | 1.8 |
| NUT-2 | GJ-35 | 45 | 35 | 165 | 130 | 360 | 19/1.8 | 0.9 | 2.3 |
| NUT-3 | GJ-50 | 50 | 40 | 180 | 140 | 400 | 19/2.2 | 1.7 | 4.2 |
| NUT-4 | GJ-70 | 55 | 45 | 200 | 160 | 450 | 19/2.2 | 2.1 | 5.3 |
| NUT-5 | GJ-95 | 60 | 50 | 220 | 180 | 500 | 19/2.6 | 2.8 | 6.5 |
Applications
Power Distribution Lines
