L-Type 90 Degree Copper Cable Lug and Right Angle Compression Terminal

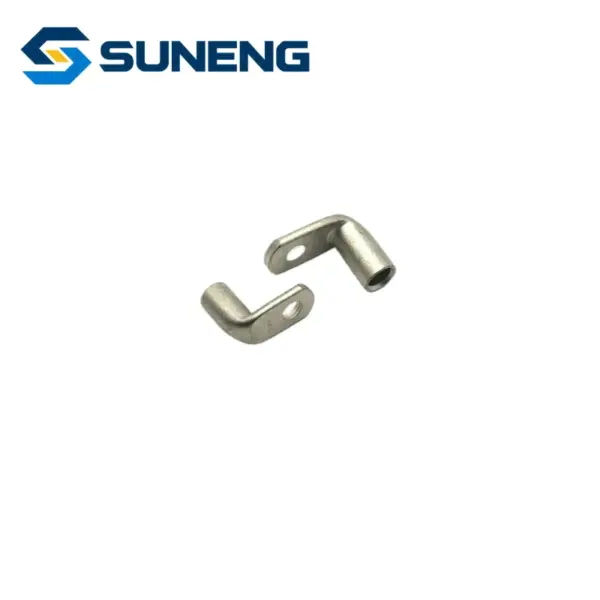

Product Overview
The L-type right-angle cable lug is designed for cable termination where the conductor must connect at a 90-degree angle. It is particularly useful in compact electrical cabinets and equipment with limited installation space.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- 90-degree palm saves space in confined installations
- Reduces excessive cable bending stress
- Suitable for cable routing at right angles
- Crimped barrel provides a secure cable connection
- Available in different cable and stud sizes
Product Structure

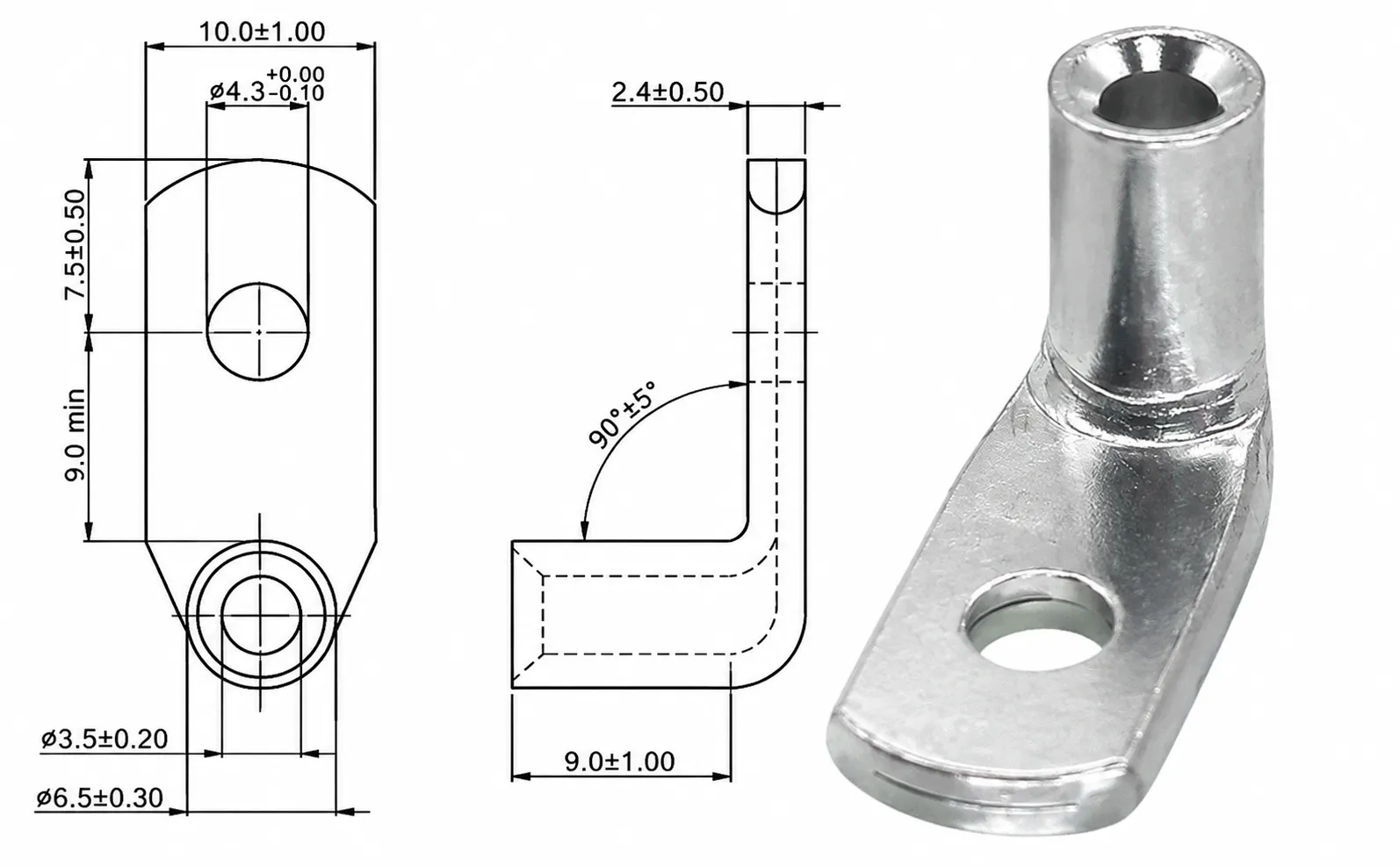

Technical Specifications
| Model | Cross Section(mm²) | Bolt Hole Φ | Tube Outer Dia D | Tube Inner Dia d | Lug Width W | Horizontal Length L1 | Vertical Height L2 |
|---|---|---|---|---|---|---|---|
| T90-6/4 | 6 | 4.5 | 6 | 4 | 9 | 12 | 10 |
| T90-6/6 | 6 | 6.5 | 6 | 4 | 9 | 15 | 12 |
| T90-10/6 | 10 | 6.5 | 8 | 5.5 | 12 | 16 | 14 |
| T90-16/8 | 16 | 8.5 | 9.5 | 6.5 | 14 | 18 | 15 |
| T90-25/8 | 25 | 8.5 | 11 | 7.5 | 16 | 20 | 16 |
| TU-90D-35/8 | 35 | 8.5 | 11 | 8.2 | 15.7 | 18 | 16 |
| TU-90D-35/10 | 35 | 10.5 | 11 | 8.2 | 15.7 | 22 | 16 |
| T90-50/10 | 50 | 10.5 | 13 | 10 | 18 | 24 | 18 |
| T90-70/10 | 70 | 10.5 | 15 | 12 | 20 | 26 | 20 |
| T90-95/12 | 95 | 12.5 | 17 | 14 | 22 | 28 | 22 |

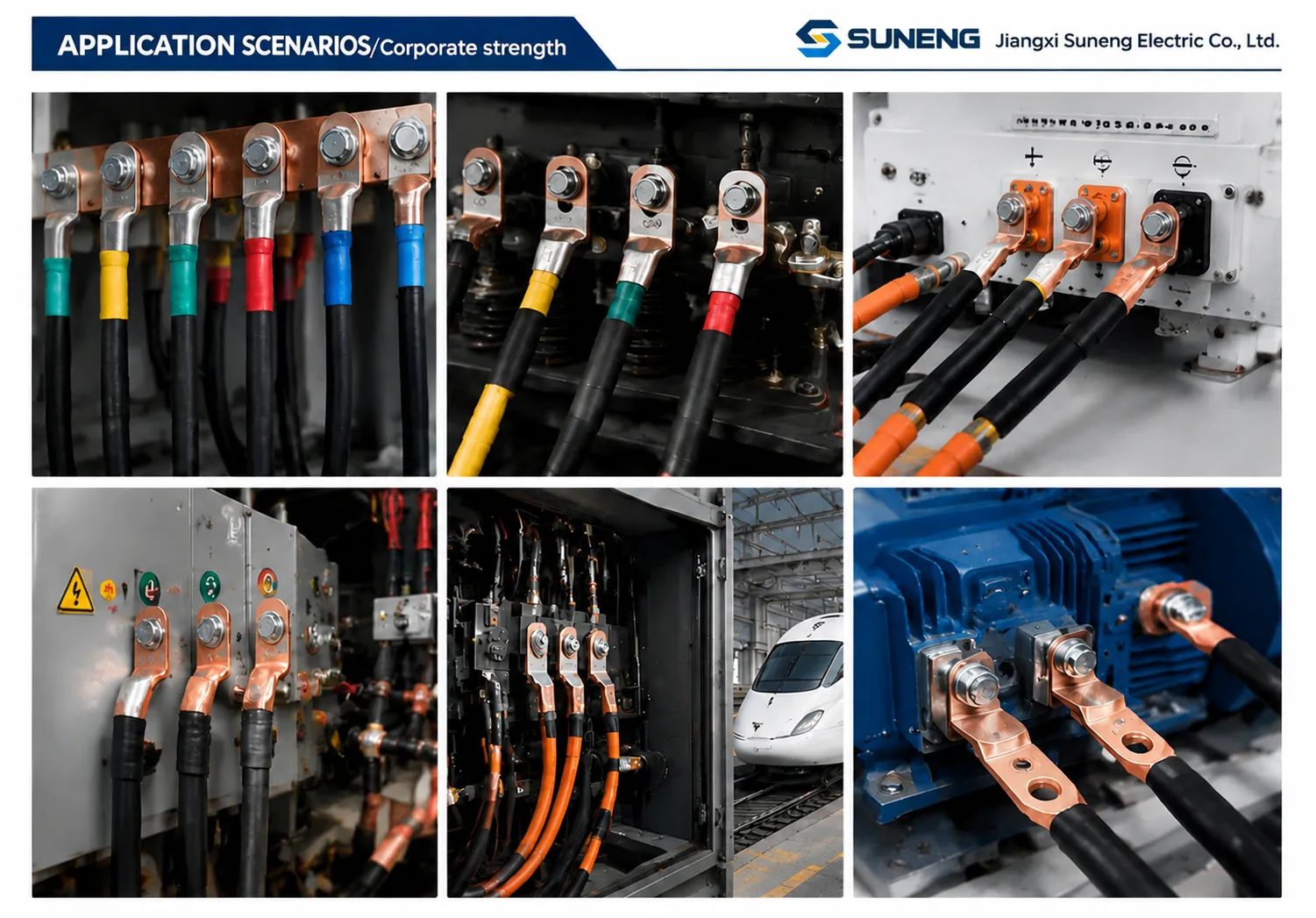

Applications
Compact switchgear cabinets
Electrical control panels
Transformer terminals
Battery and energy-storage systems
Cable routing retrofit projects
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
