Overhead Line Hardware
Jbg Stainless Steel Cable Suspension Strain Tension 16-185mm² Wire Clip 6-24 kN Anchor Clamp for 10kv Overhead Line
Product Overview

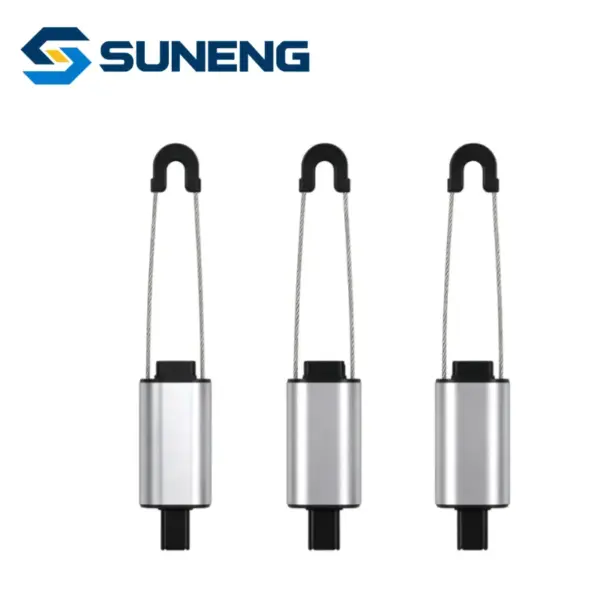

JBG Series Preformed Tension Dead End Clamp is aluminum alloy tension fitting for overhead optical cable, with reliable cable grip, high breaking load and over 30 years service life for distribution overhead lines.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Core Parameters
Interface Type: Preformed Optical Cable Tension Connector
Material: Forged aluminum alloy + rubber wedge
Connection Method: Wedge self-locking clamping
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging & injection molding
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV overhead lines
Hole Type: Hook hanging type
Installation Method: Manual wedge fastening

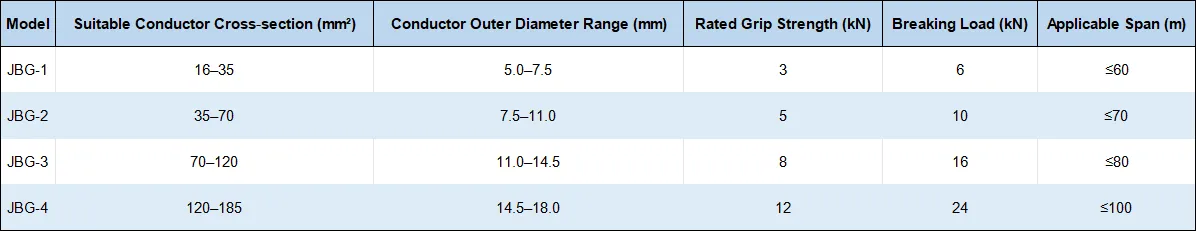

Applicable Conductor Cross-section: 16-185 mm²
Cable Outer Diameter Range: 5.0-18.0 mm
Rated Grip Strength: 3-12 kN
Breaking Load: 6-24 kN
Applicable Span: ≤60m / ≤70m / ≤80m / ≤100m
Interface Type: Preformed Optical Cable Tension Connector
Material: Forged aluminum alloy + rubber wedge
Connection Method: Wedge self-locking clamping
Surface Treatment: Natural aluminum finish
Manufacturing Process: Hot forging & injection molding
Corrosion Resistance: Excellent corrosion resistance
Applicable Voltage: 10kV overhead lines
Hole Type: Hook hanging type
Installation Method: Manual wedge fastening
Applicable Conductor Cross-section: 16-185 mm²
Cable Outer Diameter Range: 5.0-18.0 mm
Rated Grip Strength: 3-12 kN
Breaking Load: 6-24 kN
Applicable Span: ≤60m / ≤70m / ≤80m / ≤100m
Product Features
- Wedge self-locking design, stable cable holding force
- Rubber lining protects cable outer sheath
- Lightweight, easy field installation without tools
- Complete models fit different cable sizes and spans
Product Structure
Applications
• Optical fiber cable terminal tension fixing
• Rural overhead communication distribution lines
• Short-span overhead power communication integrated lines
• Outdoor pole-mounted optical cable wiring projects
