YBD Series Landscape Type Underground Prefabricated Substation

Product Overview

YBD Series

Product Overview

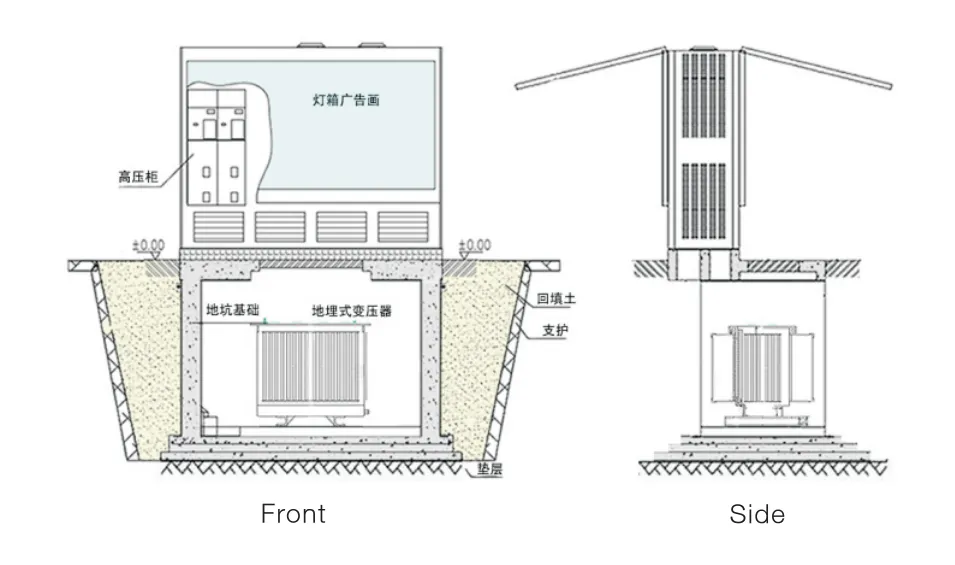

Composed of underground combined transformers, outdoor LV cabinets, light-box style LV protection enclosures, and precast underground transformer foundations, this fully preassembled underground power distribution system is factory-integrated for turnkey installation.

Designed as a next-generation solution to replace traditional civil-construction substations, European-style prefab substations, and American-style pad-mounted transformers, it integrates power transformation and distribution functions in a single modular system.

Discuss This Product Request Documents

Share the model, quantity, drawing, destination and project requirement for a focused response.

Product Features

● Compact Footprint

The landscape-type underground compact substation features a ground-level area of less than 3m² and an underground area of less than 6m², significantly reducing land occupation. It is ideal for land-scarce urban centers, commercial districts, and other areas with tight land resources.

● Aesthetic Integration with Environment

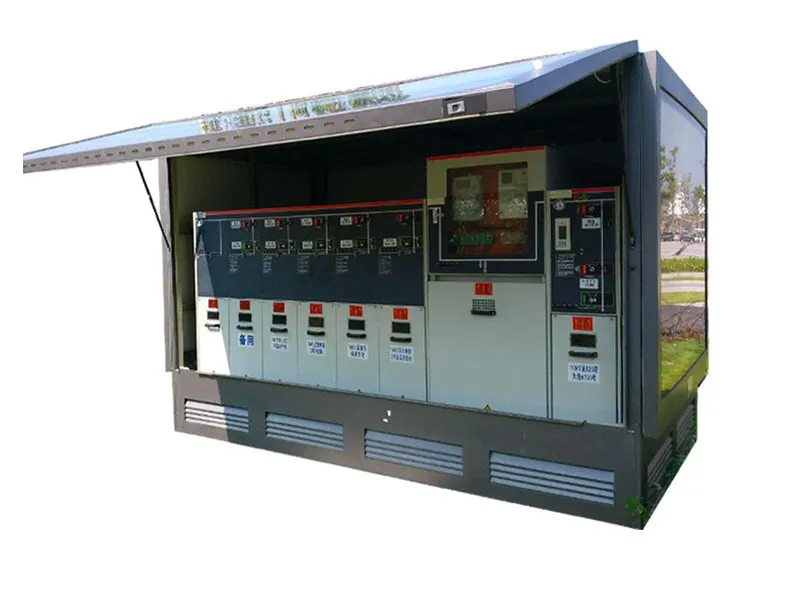

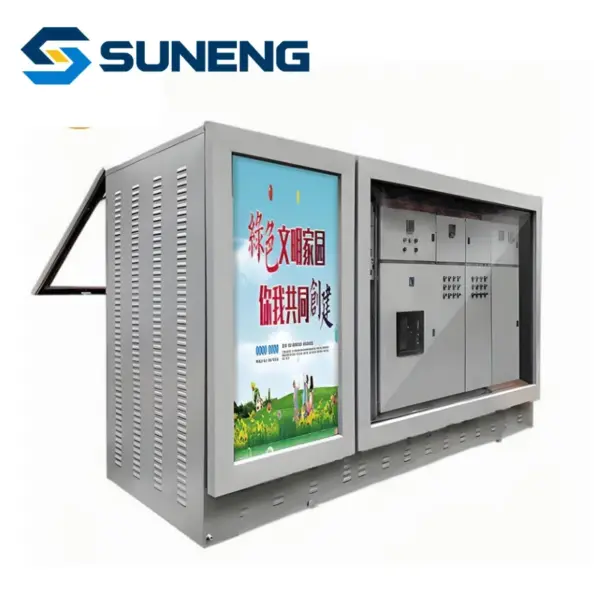

With diverse exterior designs, it harmonizes seamlessly with the surrounding landscape, suitable for installation in lawns or green belts without visual disruption. The light box-style switchgear design not only blends into urban scenery but also creates a warm, harmonious atmosphere at night through lighting effects.

● Energy Saving & Environmental Protection

Equipped with energy-efficient transformers, it effectively reduces no-load and load losses, cutting energy consumption and operational costs. The fully enclosed design ensures excellent insulation and heat dissipation, enhancing operational stability.

● Easy Installation

Requiring minimal site preparation, the substation allows simple, rapid installation. It can be positioned close to load centers for decentralized power supply, reducing investment in low-voltage cables and line losses.

● Low Maintenance

The underground transformer section is maintenance-free, significantly reducing maintenance costs and time.

● Multifunctionality

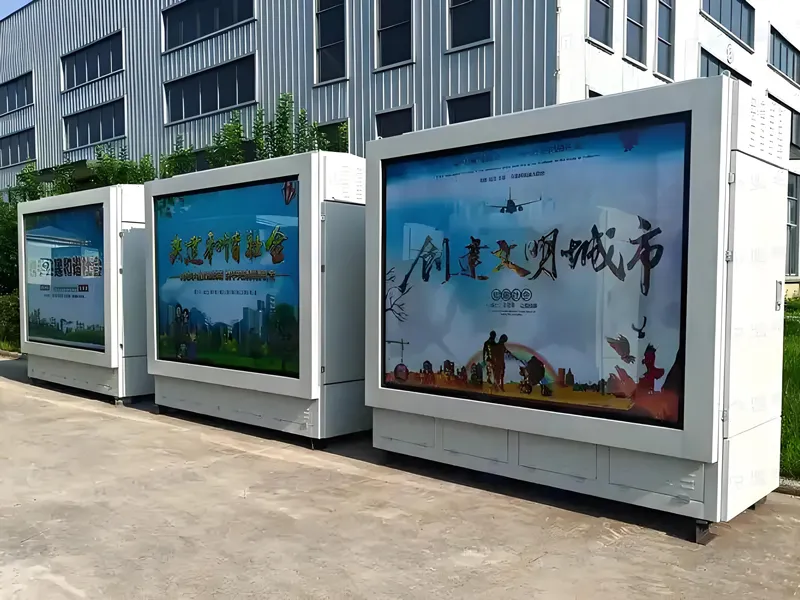

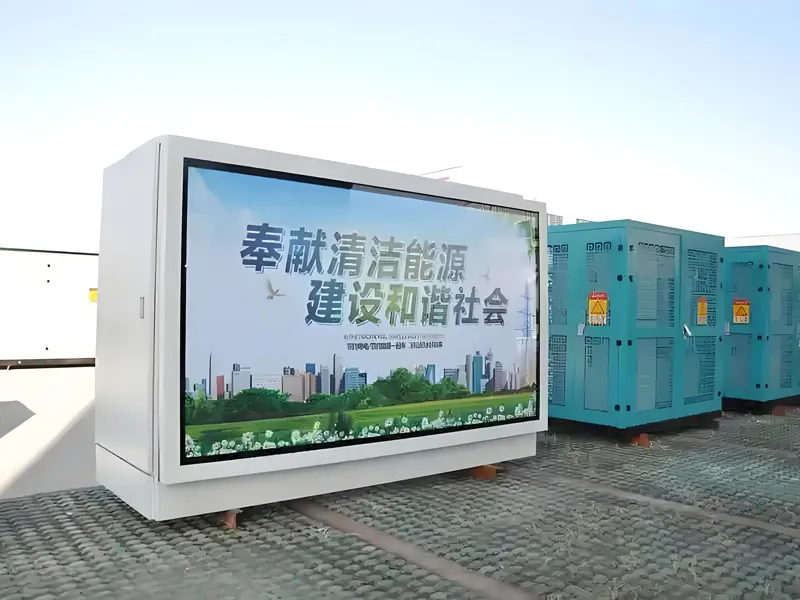

The ground-level light box can display public welfare announcements, property advertisements, and other messages, enhancing its practical functionality.

Operating Conditions

1. Altitude: ≤1000m.

2. Ambient Temperature:

● Maximum air temperature: +40°C;

● Minimum air temperature: -40°C;

● Maximum monthly average temperature: +30°C;

● Maximum annual average temperature: +20°C.

3. Installation Environment:

● Free from explosive/corrosive liquids, gases, and dust;

● No severe vibration or impact at the installation site;

● Permitted to operate partially or fully submerged in water for limited periods.

4. Ground Acceleration (Seismic): Horizontal: <3m/s²; Vertical: <1.5m/s².

5. Power Supply Voltage Waveform: Approximately sinusoidal.

6. Three-Phase Power Symmetry: Three-phase supply voltages shall be roughly symmetrical.

Technical Specifications

No.	Items	Unit	HV electrical equipments	Transformer	LV electrical equipments
1	Rated Voltage	kV	10		0.4
2	Maximum Working Voltage	kV	12
3	Rated Capacity	kVA		30-1600
4	Rated Current (Component)	A	5-630		50-3200
5	Short-time Withstand Time	kA	12.5, 16, 20		15-75
6	Rated Short-circuit Withstand Time	S	2		1
7	Peak Withstand Current	kA	20/31.5/4		30-165
8	Power Frequency Withstand Voltage (1min)	kV	42	35	5
9	Lightning Impulse Withstand Voltage	kV	75	75
10	Rated Breaking Current of High-voltage Current-limiting Fuse	kA	31.5
11	Noise Level	dB		≤48
12	Rated Frequency	Hz		50
