Distribution Transformers

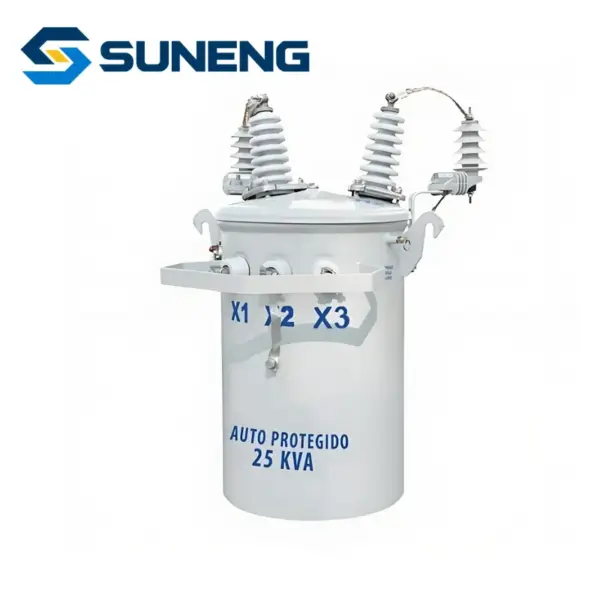

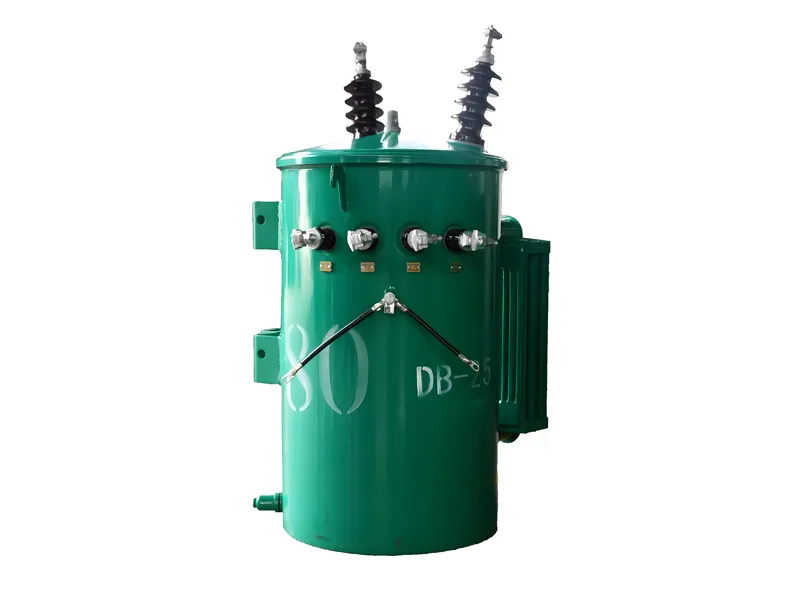

D11-M Series Single-Phase Oil-Immersed Transformer, Pole Mounted Transformer

Product Overview

In distribution networks with dispersed power supply, single-phase transformers offer significant advantages as distribution transformers. They can reduce the length of low-voltage distribution lines, minimize line losses, and improve power supply quality. Designed with a high-efficiency, energy-saving wound core structure, these transformers feature a pole-mounted suspension installation, compact size, low infrastructure investment, and a reduced low-voltage power supply radius, which can cut low-voltage line losses by over 60%. The fully sealed structure ensures strong overload capacity, high reliability for continuous operation, easy maintenance, and long service life.

Discuss This Product Request Documents

Share the model, quantity, drawing, destination and project requirement for a focused response.

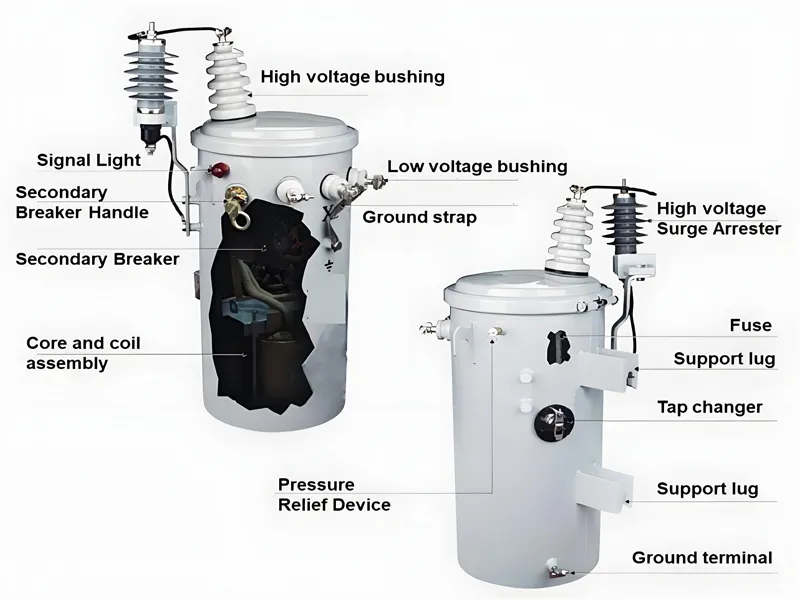

Product Details

Product Features

Highly Efficient and Energy-Saving Design: Adopts a wound-core structure design with high efficiency and energy-saving features, effectively reducing no-load losses and improving operational efficiency.
Compact Size and Lightweight: Compared to traditional transformers, pole-mounted single-phase transformers are smaller in size and lighter in weight, facilitating easier installation and maintenance.
Low Infrastructure Investment: Owing to their compact size and lightweight characteristics, infrastructure investment is relatively low, making them suitable for rural power grids and remote mountainous areas.
Reduced Line Loss: Capable of shortening the low-voltage power supply radius, reducing line losses by over 60%, and enhancing power supply quality.
Easy Installation: Employs a pole-mounted suspension installation method, ensuring a simple and rapid installation process.
High Reliability: Features a fully sealed structure with strong overload capacity, high reliability for continuous operation, and straightforward maintenance.

Technical Specifications

Rated capacity (kVA)	HV (kV)	Tapping range (%)	LV (kV)	Vector group	No‑load loss (W)	Load loss (W)	No‑load current (%)	Impedance voltage (%)
10	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	45	235	1.1	3.0
16	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	55	330	1.0	3.0
20	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	65	385	0.9	3.0
30	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	80	560	0.8	3.0
40	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	100	700	0.8	3.5
50	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	120	855	0.7	3.5
63	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	145	1020	0.6	3.5
80	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	160	1260	0.6	3.5
100	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	190	1485	0.6	3.5
125	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	230	1755	0.5	3.5
160	6, 6.3, 10, 10.5, 11	±2×2.5 ±5	2×(0.22~0.24) or 0.22~0.24	Ii0 Ii6	290	2130	0.5	3.5

Applications

Suitable for rural power grids, remote mountainous areas, scattered villages and other places, meeting the electricity demands for agricultural production and lighting.
