Insulator Link Fittings

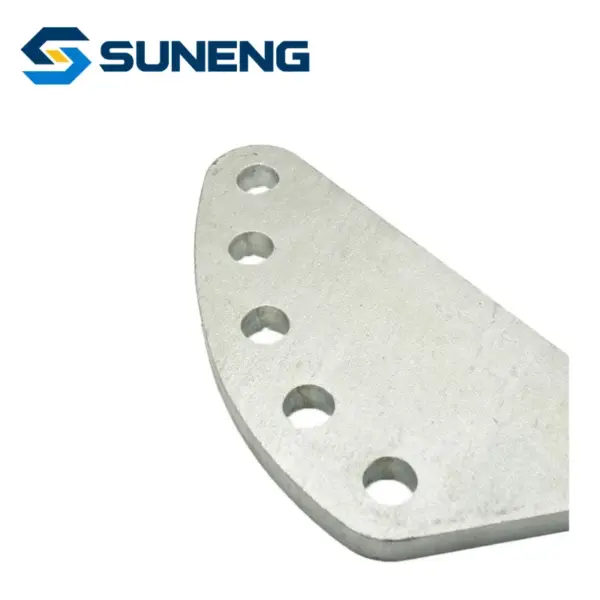

Db-10 Hot Dip Galvanized Mounting Yoke Adjustable Plate
Product Overview
DB Series Socket Clevis Fittings are designed for connecting ball-and-socket insulators in overhead transmission networks. Their heavy-duty forged steel construction provides exceptional mechanical strength and reliable performance under demanding operating conditions.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
Quick Specs
Models: DB-7 to DB-64150-310
Material: Hot-Dip Galvanized Steel
Connection Type: Socket Connection
Coupling Size: 18mm-45mm
Application: Transmission Line Hardware
Corrosion Protection: Hot-Dip Galvanized
OEM/ODM Service: Available
Models: DB-7 to DB-64150-310
Material: Hot-Dip Galvanized Steel
Connection Type: Socket Connection
Coupling Size: 18mm-45mm
Application: Transmission Line Hardware
Corrosion Protection: Hot-Dip Galvanized
OEM/ODM Service: Available
Product Features
- Designed specifically for insulator string and line hardware connections
- Essential accessory for porcelain, glass and composite insulators
- Hot-dip galvanized steel provides excellent corrosion resistance
- High mechanical strength ensures secure insulator assembly
- Precision manufactured for accurate fit and reliable performance
- Suitable for transmission and distribution line applications
Product Structure
Technical Specifications

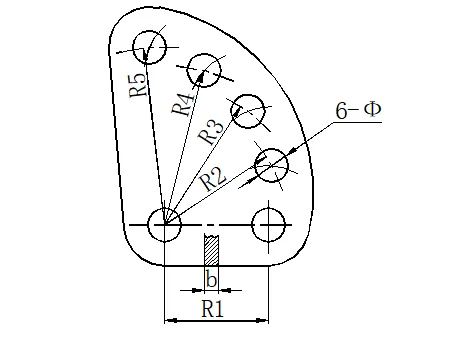

| Model | Universal Design Model | Φ (mm) | R1 (mm) | R2 (mm) | R3 (mm) | R4 (mm) | R5 (mm) | R6 (mm) | b (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DB-7 | DB-0770-170 | 18 | 70 | 95 | 120 | 145 | 200 | -- | 16 |
| DB-10 | DB-1080-200 | 20 | 80 | 110 | 140 | 170 | 170 | -- | 16 |
| DB-12 | DB-12100-240 | 24 | 100 | 135 | 170 | 205 | 240 | - | 16 |
| DB-16 | DB-16110-170 | 26 | 110 | 125 | 140 | 155 | 170 | - | 18 |
| DB-21 | - | 30 | 120 | 135 | 150 | 165 | 180 | - | 26 |
| - | DB-21120-180 | 26 | 120 | 135 | 150 | 165 | 180 | - | 20 |
| DB-25 | - | 33 | 120 | 135 | 150 | 165 | 180 | - | 28 |
| - | DB-25120-180 | 30 | 120 | 135 | 150 | 165 | 180 | - | 24 |
| DB-30 | - | 39 | 120 | 140 | 160 | 180 | 200 | - | 32 |
| - | DB-32120-200 | 33 | 120 | 140 | 160 | 180 | 200 | - | 28 |
| - | DB-32110-335 | 33 | 110 | 155 | 200 | 245 | 290 | 335 | 28 |
| - | DB-42110-335 | 39 | 110 | 155 | 200 | 245 | 290 | 335 | 32 |
| - | DB-42140-320 | 39 | 140 | 185 | 230 | 275 | 320 | - | 32 |
| - | DB-55120-345 | 39 | 120 | 165 | 210 | 255 | 300 | 345 | 32 |
| - | DB-64150-310 | 45 | 150 | 190 | 230 | 270 | 310 | - | 36 |

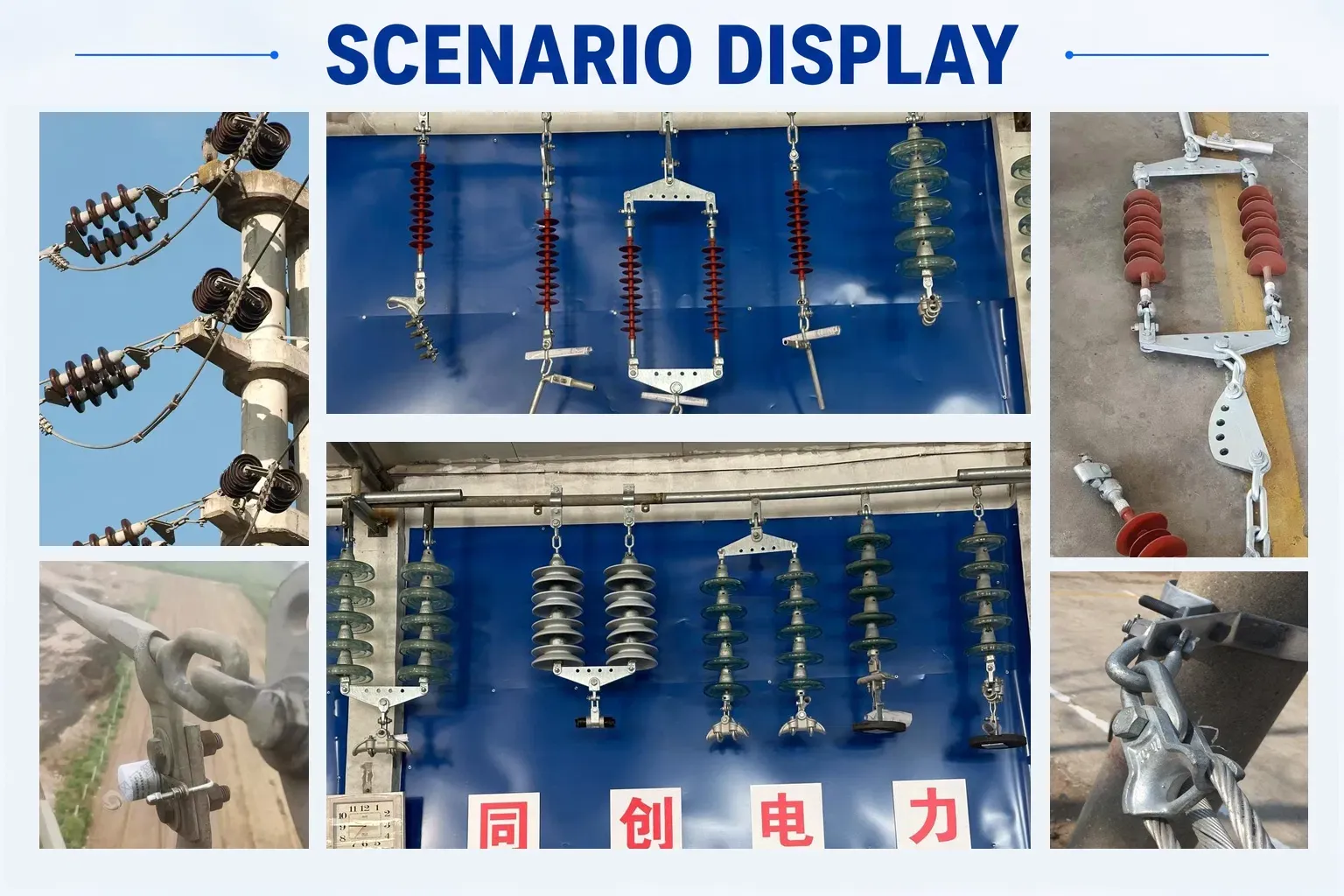

Applications
• Porcelain Insulator String Assembly
• Glass Insulator String Connections
• Composite Insulator Installations
• Overhead Transmission Lines
• Power Distribution Networks
• Utility Pole Hardware Systems

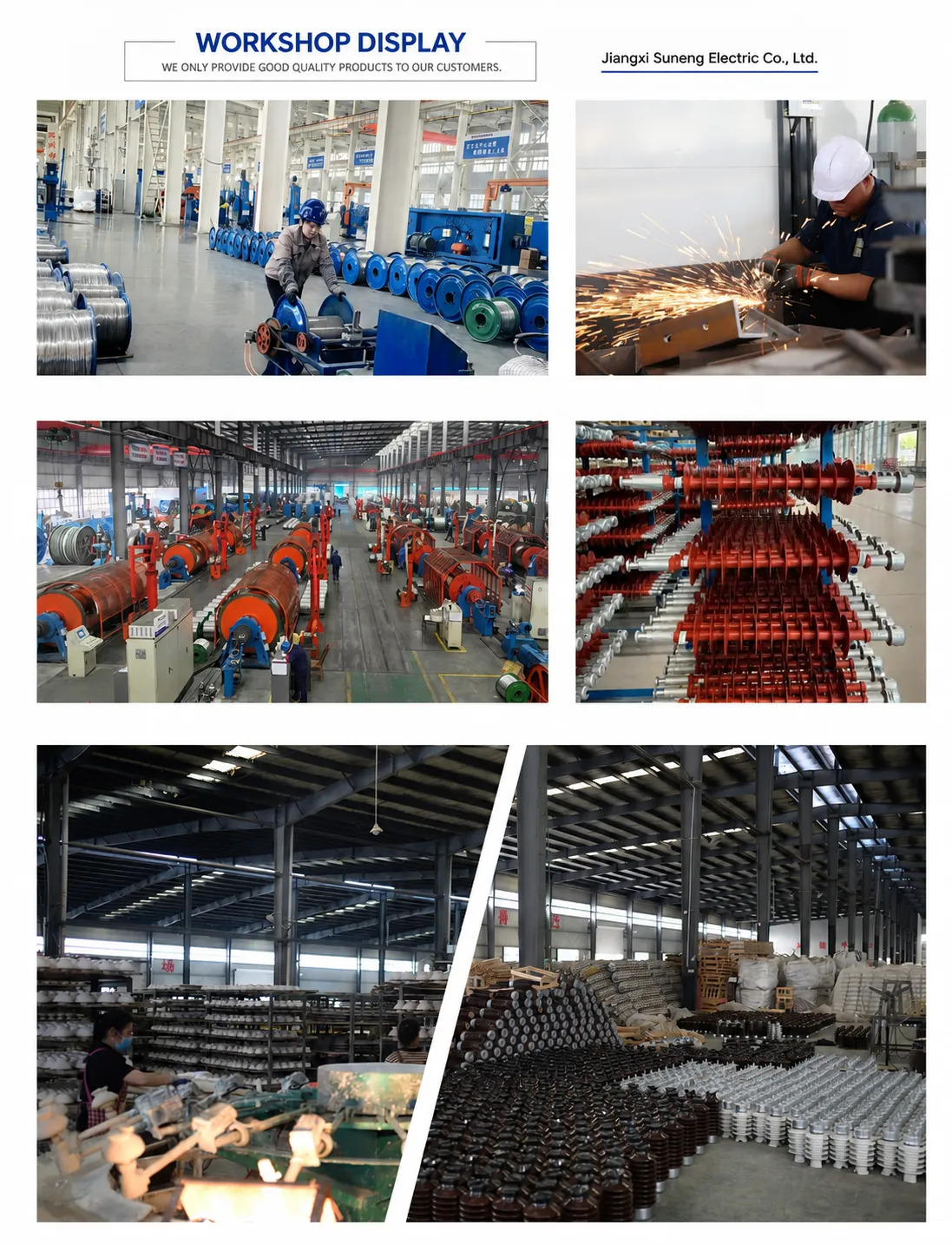

Workshop
