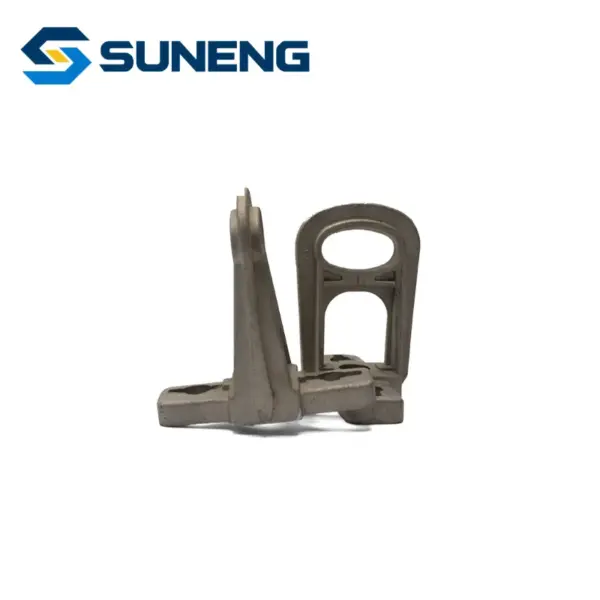

CS Ca Series Aluminum Alloy Suspension Bracket for ADSS Fiber Optic Cable
Product Overview
The CS CA Series Aluminum Alloy Suspension Bracket is a high-performance pole-mount fitting specially designed for overhead power and fiber optic cable systems. It provides a secure mounting base for cable clamps, ensuring stable support and long-term line reliability in outdoor environments.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Features
- 2.1 Premium Material & Durable Construction
- Made of high-strength cast aluminum alloy with anodized finish, offering excellent corrosion resistance and mechanical stability. The precision-cast structure ensures uniform load distribution, preventing deformation under sustained cable tension.
- 2.2 Easy & Secure Installation
- Designed for direct pole mounting, requiring no special tools for quick and secure installation. Multi-position mounting holes enable flexible compatibility with various cable clamps and pole types.
Technical Specifications
| Model | Compatible Dead-End Clamp | Hanging Hole Size(mm) | Mounting Center Distance(mm) | Max Tension Load(kN) |
|---|---|---|---|---|
| CS10 | 10 Series Self-Locking Dead-End Clamp | 30x15 | 45 | 5 |
| CS20 | 20 Series Self-Locking Dead-End Clamp | 35x18 | 50 | 8 |
| CS30 | 30 Series Self-Locking Dead-End Clamp | 40x20 | 55 | 10 |
| CS40 | 40 Series Self-Locking Dead-End Clamp | 45x22 | 60 | 12 |
Applications
Power Distribution Lines
workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
Open Full Enquiry PageRelated Products
Tl Electrical Connector Bolted T-type Cable Tap Connector Terminal Lugs for 120-630mm² Wire
PAM Suspension Strain Tension 16-35 mm² Wire Clip 3-8 kN Anchor Clamp for Overhead Optic Line with IEC
Jbg Stainless Steel Cable Suspension Strain Tension 16-185mm² Wire Clip 6-24 kN Anchor Clamp for 10kv Overhead Line

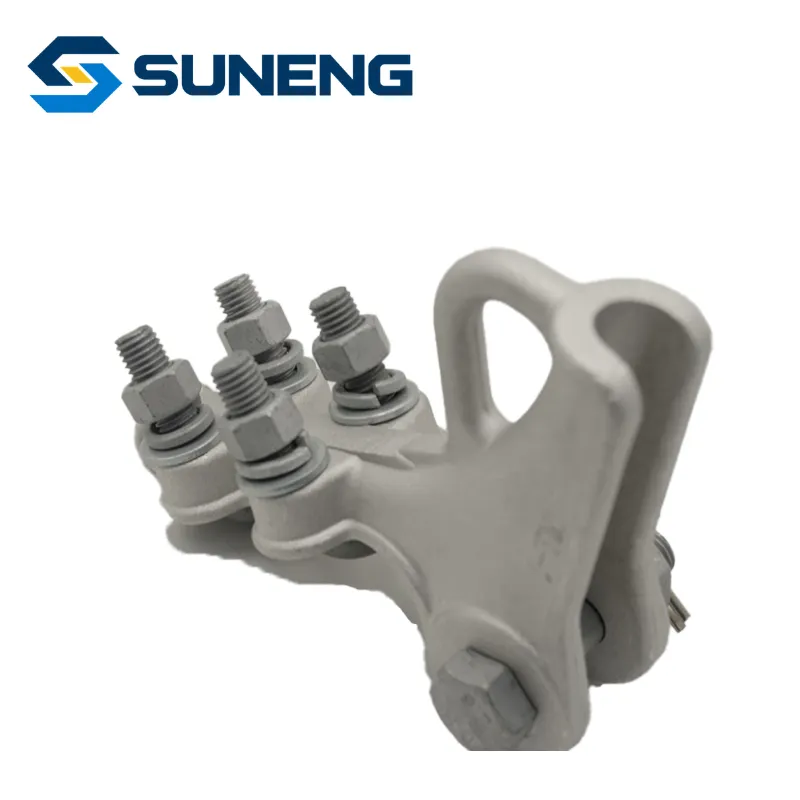

NLL Series Bolted Strain Clamp Dead End Clamp Anchor Clamp for Power Line with ISO Approved
