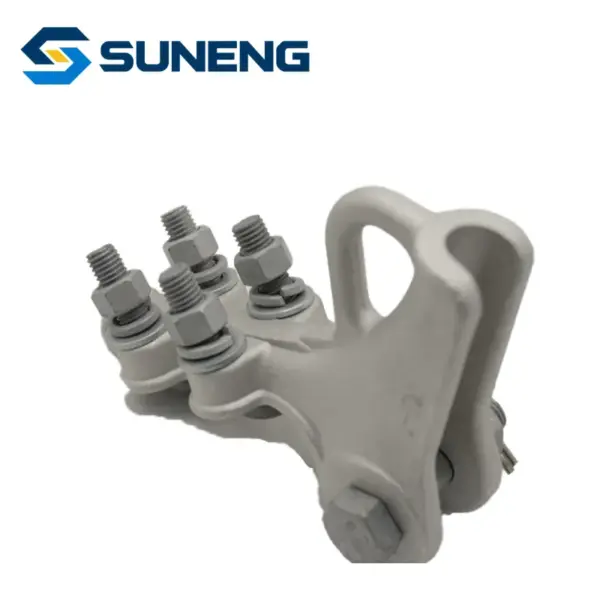

NLL Series Bolted Strain Clamp Dead End Clamp Anchor Clamp for Power Line with ISO Approved
Product Overview
The NLL Series Bolted Aluminum Alloy Strain Clamp is a high-performance tension fitting specially designed for overhead transmission and distribution power systems. As a core component in line construction, it is used to securely anchor and tension conductors such as ACSR, AAC, and AAAC cables at dead-end poles, towers, and distribution terminals.
Share the model, quantity, drawing, destination and project requirement for a focused response.
Product Details
It provides reliable mechanical strength, stable electrical connection, and long-term resistance to outdoor environmental factors. This strain clamp is widely applied in low to medium voltage overhead lines, utility distribution networks, and industrial power projects, ensuring the safe and stable operation of power grids.
Product Features
- 1. Efficient Piercing & Stable Conductivity
- The built-in sharp piercing teeth cut through the cable insulation and make direct contact with the conductor, ensuring low contact resistance and stable electrical transmission. It is suitable for main cables (16-95mm²) and branch cables (4-50mm²), meeting most distribution line connection needs.
- 2. Full Insulation & Weatherproof Design
- The high-strength engineering plastic housing provides full insulation protection, preventing electric shock, short circuits and corrosion caused by rain, snow and moisture. The attached waterproof cap further enhances the sealing performance, adapting to various harsh outdoor environments.

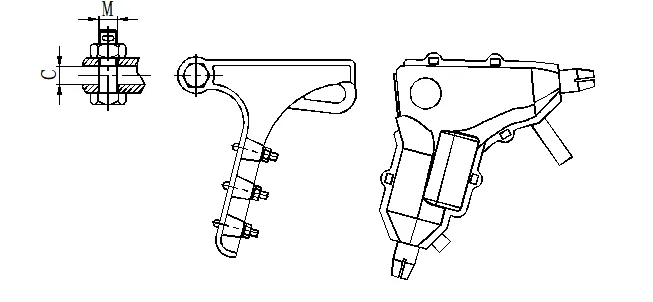

Product Structure

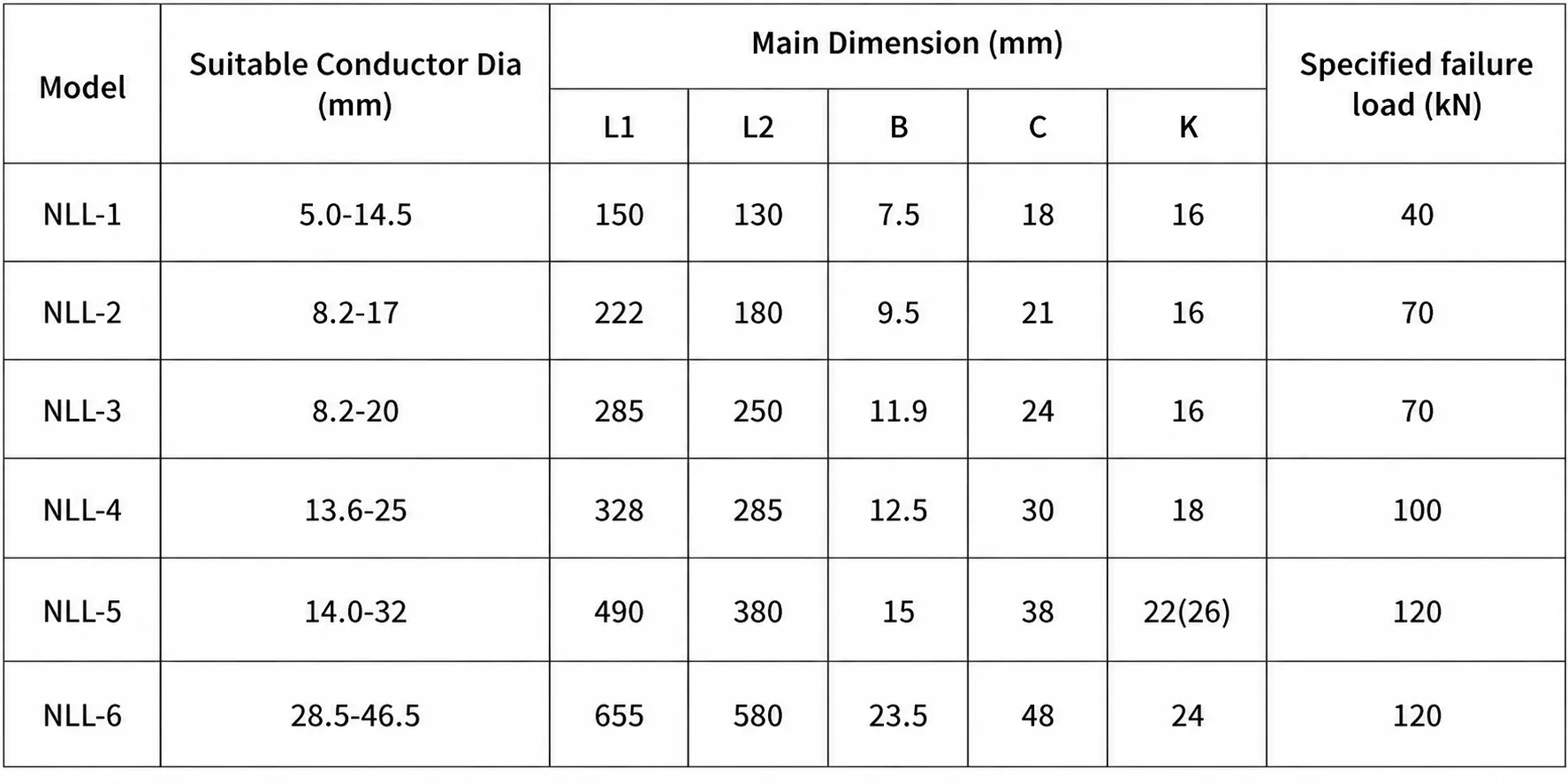

Performance & Dimensions

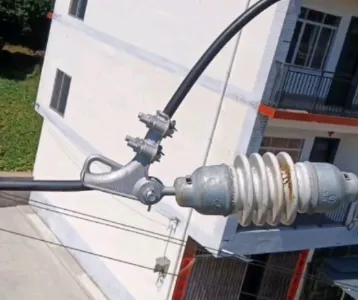

Applications
This strain clamp is widely applied in low to medium voltage overhead lines, utility distribution networks, and industrial power projects, ensuring the safe and stable operation of power grids.
Workshop
Inquiry Now
Send the model, drawing, BOM or project specification. Our team will respond around the actual selection points.
